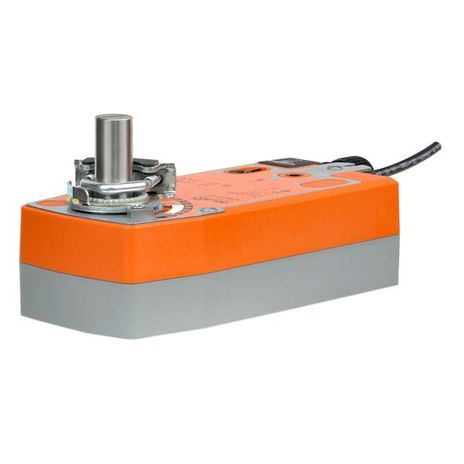

Belimo AFB24-SR-X1

Name: Belimo AFB24-SR-X1
Brand: Belimo
SKU: CS3148960
Price: 494.43 USD
Availability: InStock

SKU: CS3148960MPN: AFB24-SR-X1

Valve Actuator, Spring return, AC/DC 24 V, 2...10 V, modulating

$494.43

Unit

11 in stock

Quantity

remove

add

Documents

Valve Actuator, Spring return, AC/DC 24 V, 2...10 V, modulating

Control	modulating
Fail-Safe	Spring Return
Nominal Voltage	AC/DC 24 V
Transformer Sizing	8.5 VA (class 2 power source)
Enclosure	UL Enclosure Type 2
Power Supply	24 VAC, ±20%, 50/60 Hz, 24 VDC, -10% / +20%
Power Consumption In Operation	5.5 W
Power Consumption In Rest Position	3 W
Electrical Connection	18 GA appliance cable, 3 ft [1 m], with ½” conduit connector
Overload Protection	electronic throughout 0…95° rotation
Operating Range	2…10 V, 4…20 mA w/ ZG-R01 (500 Ω, ¼ W resistor)
Position Feedback	2…10 V, Max. 0.5 mA
Angle Of Rotation	95°,
Direction Of Motion Motor	selectable with switch 0/1
Position Indication	Mechanical
Running Time (Motor)	95 s
Running Time Fail-Safe	<20 s
Ambient Humidity	max. 95% r.H., non-condensing
Ambient Temperature	-22…122°F [-30…50°C]
Storage Temperature	-40…176°F [-40…80°C]
Degree Of Protection Iec/En	IP54
Degree Of Protection Nema/Ul	NEMA 2
Connection	cable
Servicing	maintenance-free
Housing Material	Galvanized steel and plastic housing
Nominal Voltage Dc	24 V
Nominal Voltage Ac	24 V
Noise Level, Motor	40 dB(A)
Quality Standard	ISO 9001
Noise Level, Fail-Safe	62 dB(A)
Agency Listing	cULus acc. to UL60730-1A/-2-14, CAN/CSA E60730-1:02, CE acc. to 2014/30/EU Listed to UL 2043 - suitable for use in air plenums per Section 300.22(C) of the NEC and Section 602 of the IMC
Fail-Safe Function	Spring return
Control Type Web	DC 2…10 V
Fail-Safe	YES
