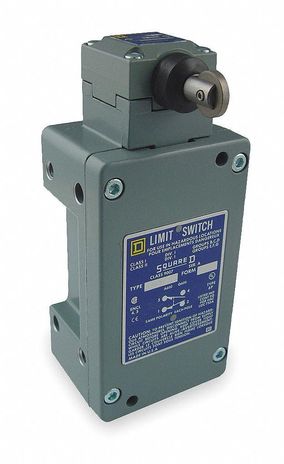

Telemecanique 9007CR61F

Name: Telemecanique 9007CR61F
Brand: Telemecanique
SKU: CS272311
Availability: InStock

SKU: CS272311MPN: 9007CR61FUPC/EAN: 785901960829

Limit switch, 9007, 600 V 10amp c +options

1 in stock

Product Details

LIMIT SWITCH

Ithe Conventional Enclosed Thermal Current	0.417
Ambient Air Temperature For Storage	-20-185 °F
Body Material	aluminium
Body Type	fixed
Contact Form	Form ZZ
Contact Operation	snap action
Contacts Material	silver contacts
Contacts Type And Composition	2(NC-NO)
Device Short Name	9007CR
Electrical Durability	1000000 cycles
Environmental Characteristic	standard environment
Fixing Mode	by the body
Function Available	-
Head Material	zinc
Head Type	plunger head
Level Or Class	Class I Division 1 Groups B/C/D# #Class II Division 1 Groups E/F/G
Material	metal
Mechanical Durability	10000000 cycles
Minimum Force For Tripping	4 lbf
Movement Of Operating Head	linear
Number Of Poles	2
Positive Opening	without
Product Or Component Type	limit switch
Product Specific Application	hazardous location box
Protective Treatment	epoxy powder coat
Range Of Product	9007
Sale Per Indivisible Quantity	1.0000
Series Name	heavy duty
Switch Actuation	by 30° cam
Switch Function	DPDT-DB
Terminals Description Iso N 1	(7-8)NO# #(5-6)NC# #(3-4)NO# #(1-2)NC
