HVAC/RActuatorsBelimo

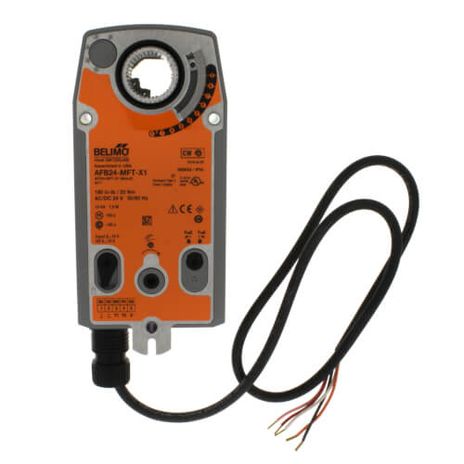

Belimo AFB24-MFT-X1

SKU: CS2679470MPN: AFB24-MFT-X1

Valve Actuator, Spring return, AC/DC 24 V, 2...10 V, MFT/programmable

Belimo AFB24-MFT-X1
$545.57
Unit
10+ Units Available at Factory - Ships Same/Next Business Day
remove
add

Documents

Product Details

For proportional modulation of dampers and control valves in HVAC systems. The AFB24-MFT provides mechanical spring return operation for reliable fail-safe application.

Default parameters for 2 to 10 VDC applications of the AFB24-MFT actuator are assigned during manufacturing. If required, custom versions of the actuator can be ordered. The parameters noted in the Technical Data table are variable. These parameters can be changed by three means:

  • Pre-set configurations from Belimo
  • Custom configurations from Belimo
  • Configurations set by the customer using the MFT PC tool (version 3.4 or higher) software application.
  • Handheld ZTH-GEN

Attributes

Control MFT/programmable
Fail-Safe Spring Return
Nominal Voltage AC/DC 24 V
Transformer Sizing 10 VA (class 2 power source)
Enclosure UL Enclosure Type 2
Power Supply 24 VAC, ±20%, 50/60 Hz, 24 VDC, -10% / +20%
Power Consumption In Operation 7.5 W
Power Consumption In Rest Position 3 W
Electrical Connection 18 GA appliance cable, 3ft [1m] 10ft [3m] and 16ft [5m], with ½” conduit connector, degree of protection NEMA 2 / IP54
Overload Protection electronic throughout 0…95° rotation
Operating Range 2…10 V (default), 4…20 mA w/ ZG-R01 (500 Ω, ¼ W resistor), variable (VDC, PWM, on/off, floating point)
Operating Range Y Variable Start point 0.5…30 V End point 2.5…32 V
Position Feedback 2…10 V, Max. 0.5 mA, VDC variable
Angle Of Rotation 95°, adjustable with mechanical end stop, 35…95°
Direction Of Motion Motor selectable with switch 0/1
Position Indication Mechanical
Running Time (Motor) default 150 s, variable 70…220 s
Running Time Fail-Safe <20 s
Ambient Humidity max. 95% r.H., non-condensing
Ambient Temperature -22…122°F [-30…50°C]
Storage Temperature -40…176°F [-40…80°C]
Degree Of Protection Iec/En IP54
Degree Of Protection Nema/Ul NEMA 2
Connection cable
Servicing maintenance-free
Housing Material Galvanized steel and plastic housing
Nominal Voltage Dc 24 V
Nominal Voltage Ac 24 V
Noise Level, Motor 40 dB(A)
Quality Standard ISO 9001
Noise Level, Fail-Safe 62 dB(A)
Agency Listing cULus acc. to UL60730-1A/-2-14, CAN/CSA E60730-1:02, CE acc. to 2014/30/EU Listed to UL 2043 - suitable for use in air plenums per Section 300.22(C) of the NEC and Section 602 of the IMC
Override Control MIN (minimum position) = 0% MID (intermediate position) = 50% MAX (maximum position) = 100%
Fail-Safe Function Spring return
Control Type Web MFT/Programmable
Fail-Safe YES

Specifications

SKUCS2679470
MPNAFB24-MFT-X1
