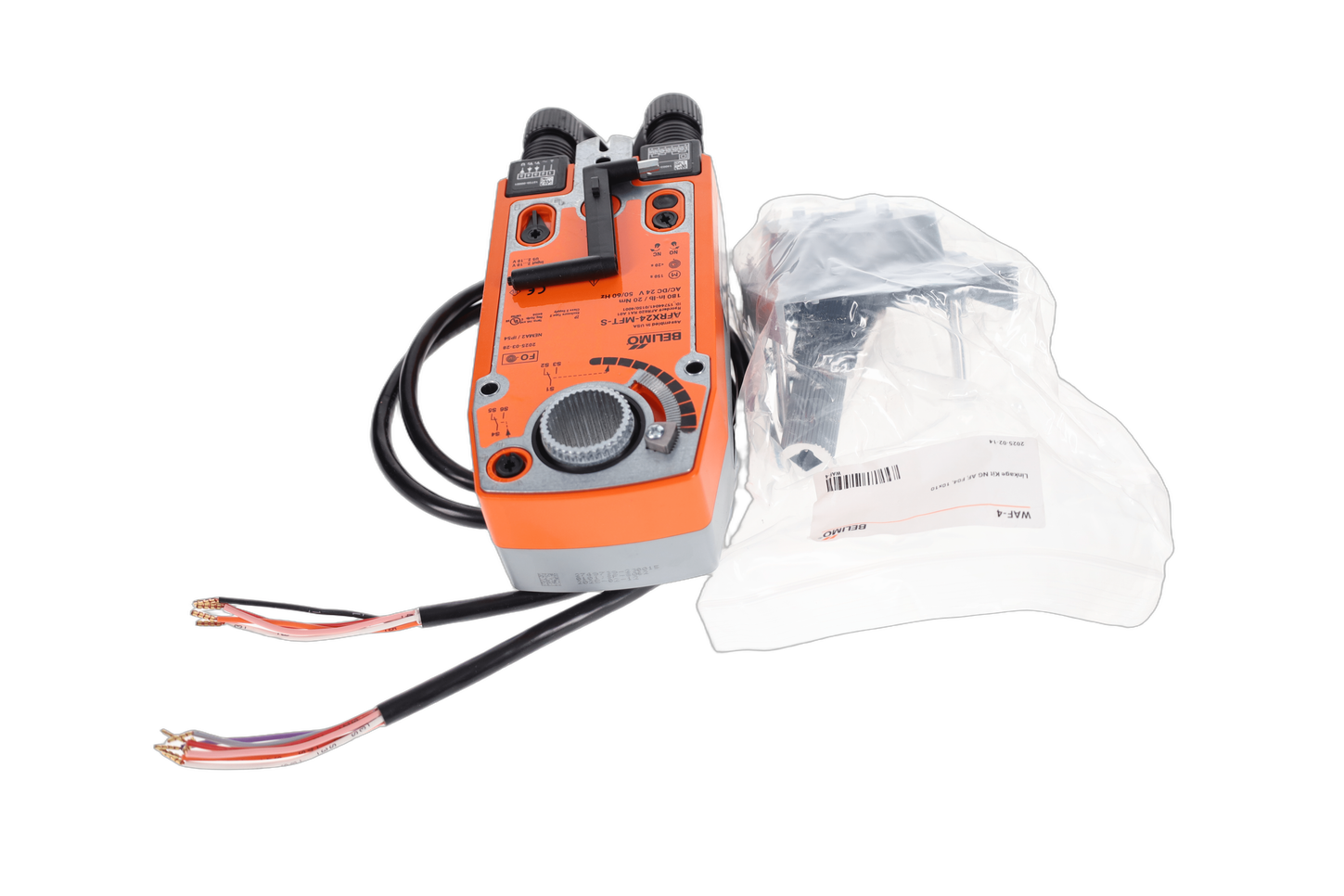

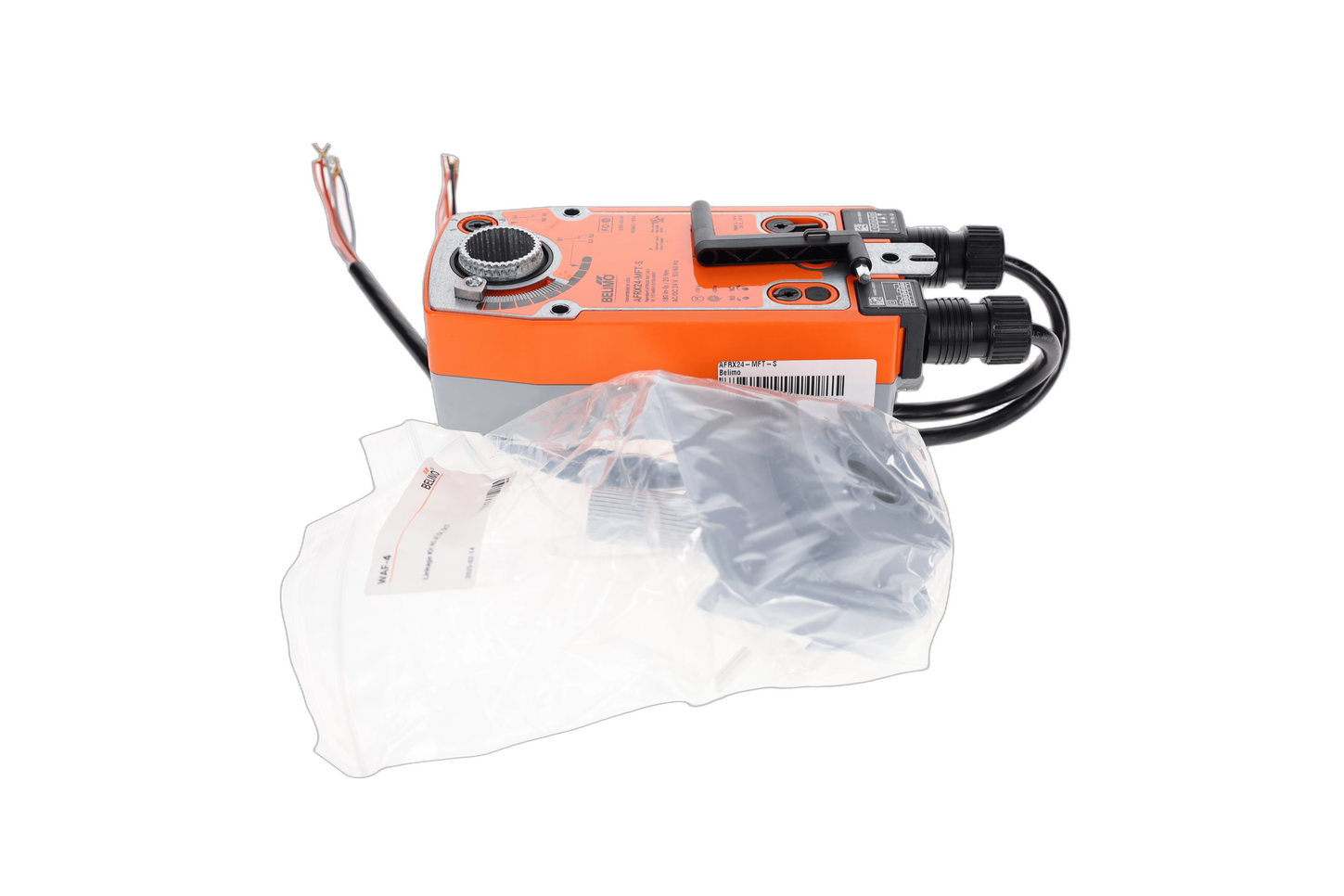

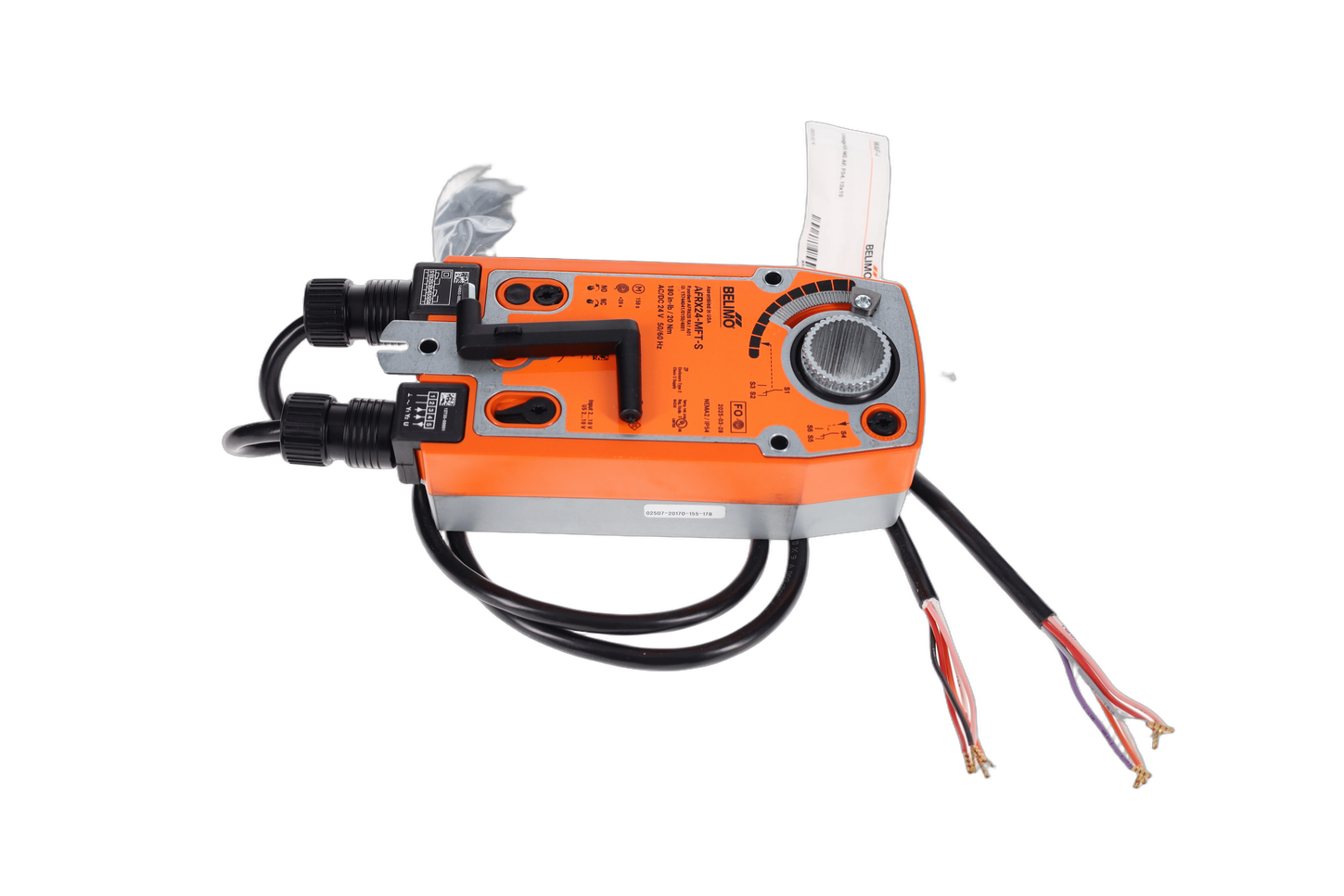

Belimo AFRX24-MFT-S

Name: Belimo AFRX24-MFT-S
Brand: Belimo
SKU: CS4062339
Price: 649.57 USD
Availability: InStock

SKU: CS4062339MPN: AFRX24-MFT-S

Configurable, Valve Actuator, Spring return, AC/DC 24 V, 2...10 V, 2 x SPDT, MFT/programmable

Belimo AFRBUP, AFRX24-MFT-S, AFRX24-MFT95, AFRX24-S, AFRXUP, AFRXUP-S

$649.57

Unit

1 in stock

Quantity

remove

add

Documents

Belimo AFRX24-MFT-S Data Sheet

Product Details

Configurable Valve Actuator, Spring return, AC/DC 24 V, 2...10 V, 2 x SPDT, MFT/programmable

Attributes

Control	MFT/programmable
Auxillary Switch	2 x SPDT
Fail-Safe	Spring Return
Nominal Voltage	AC/DC 24 V
Transformer Sizing	10 VA (class 2 power source)
Enclosure	UL Enclosure Type 2
Power Supply	24 VAC, ±20%, 50/60 Hz, 24 VDC, ±10%
Power Consumption In Operation	7.5 W
Power Consumption In Rest Position	3 W
Electrical Connection	(2) 18 GA appliance cables with ½” conduit connectors, 3 ft [1 m],
Overload Protection	electronic throughout 0…95° rotation
Operating Range	2…10 V (default), 4…20 mA w/ ZG-R01 (500 Ω, ¼ W resistor), variable (VDC, PWM, on/off, floating point)
Operating Range Y Variable	Start point 0.5…30 V End point 2.5…32 V
Input Impedance	100 kΩ for 2…10 V (0.1 mA), 500 Ω for 4…20 mA, 1500 Ω for PWM, On/Off and Floating point
Position Feedback	2…10 V, Max. 0.5 mA, VDC variable
Angle Of Rotation	90°
Direction Of Motion Motor	selectable with switch
Position Indication	Mechanical
Running Time (Motor)	default 150 s, variable 70…220 s
Running Time Fail-Safe	<20 s
Ambient Humidity	max. 95% r.H., non-condensing
Ambient Temperature	-22…122°F [-30…50°C]
Storage Temperature	-40…176°F [-40…80°C]
Degree Of Protection Iec/En	IP54
Degree Of Protection Nema/Ul	NEMA 2
Connection	cable
Servicing	maintenance-free
Nominal Voltage Dc	24 V
Nominal Voltage Ac	24 V
Noise Level, Motor	45 dB(A)
Quality Standard	ISO 9001
Noise Level, Fail-Safe	62 dB(A)
Angle Of Rotation Adaptation	off (default)
Agency Listing	cULus acc. to UL60730-1A/-2-14, CAN/CSA E60730-1:02, CE acc. to 2014/30/EU and 2014/35/EU; Listed to UL 2043 - suitable for use in air plenums per Section 300.22© of the NEC and Section 602.2 of the IMC
Auxiliary Switch	2 x SPDT, 3 A resistive (0.5 A inductive) @ AC 250 V, one set at 10°, one adjustable 10…90°
Override Control	MIN (minimum position) = 0% MID (intermediate position) = 50% MAX (maximum position) = 100%
Fail-Safe Function	Spring return
Control Type Web	MFT/Programmable
Fail-Safe	YES
