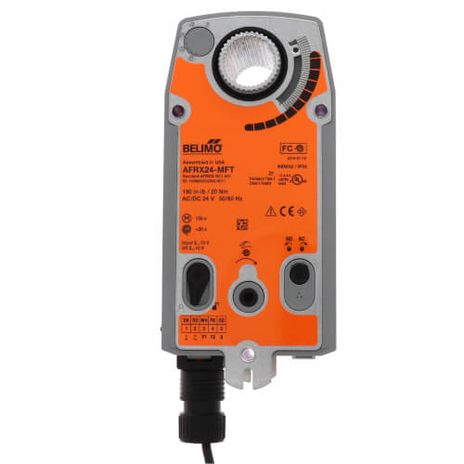

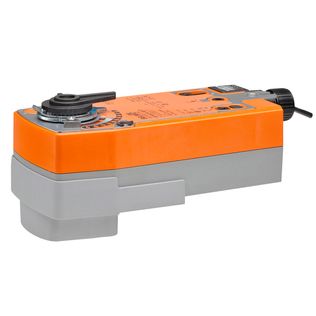

Belimo AFRX24-MFT

Name: Belimo AFRX24-MFT
Brand: Belimo
SKU: CS2403123
Price: 575.47 USD
Availability: InStock

SKU: CS2403123MPN: AFRX24-MFT

Configurable Valve Actuator, Spring return, AC/DC 24 V, 2...10 V, MFT/programmable

$575.47

Unit

7 in stock

Quantity

remove

add

Documents

Belimo AFRX24-MFT Data Sheet

Product Details

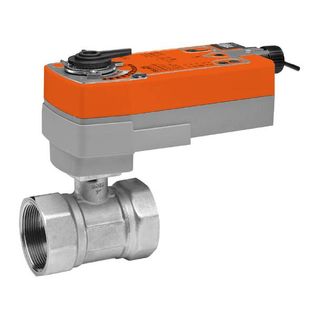

AFR series actuators are used with B6 Series, Two Way Flanged Ball Valves.

Application: This valve is typically used in air handling units on heating or cooling coils, and fan coil unit heating or cooling coils. Some other common applications include Unit Ventilators, VAV box re-heat coils and bypass loops. This valve is suitable for use in a hydronic system with variable or constant flow. Belimo damper actuators and control valves with Multi-Function Technology (MFT) are an excellent way to standardize your product line while reducing the number of different actuators needed. MultiFunction Technology offers a wide variety of programmable control inputs and feedback signals. Parameters can be set for voltage control (VDC), time proportional control (PWM), floating point, on-off, feedback signal, or torque output. Parameters can be changed on-site to optimize/enable application. You can also set, modify or read position, running time, mechanical working range, address, status, and diagnostics.

Attributes

Control	MFT/programmable
Fail-Safe	Spring Return
Nominal Voltage	AC/DC 24 V
Transformer Sizing	10 VA (class 2 power source)
Enclosure	UL Enclosure Type 2
Power Supply	24 VAC, ±20%, 50/60 Hz, 24 VDC, ±10%
Power Consumption In Operation	7.5 W
Power Consumption In Rest Position	3 W
Electrical Connection	18 GA appliance cable, 3 ft [1 m], with ½” conduit connector
Overload Protection	electronic throughout 0…95° rotation
Operating Range	2…10 V (default), 4…20 mA w/ ZG-R01 (500 Ω, ¼ W resistor), variable (VDC, PWM, on/off, floating point)
Operating Range Y Variable	Start point 0.5…30 V End point 2.5…32 V
Input Impedance	100 kΩ for 2…10 V (0.1 mA), 500 Ω for 4…20 mA, 1500 Ω for PWM, On/Off and Floating point
Position Feedback	2…10 V, Max. 0.5 mA, VDC variable
Angle Of Rotation	90°
Direction Of Motion Motor	selectable with switch
Position Indication	Mechanical
Running Time (Motor)	default 150 s, variable 70…220 s
Running Time Fail-Safe	<20 s
Ambient Humidity	max. 95% r.H., non-condensing
Ambient Temperature	-22…122°F [-30…50°C]
Storage Temperature	-40…176°F [-40…80°C]
Degree Of Protection Iec/En	IP54
Degree Of Protection Nema/Ul	NEMA 2
Connection	cable
Servicing	maintenance-free
Nominal Voltage Dc	24 V
Nominal Voltage Ac	24 V
Noise Level, Motor	45 dB(A)
Quality Standard	ISO 9001
Noise Level, Fail-Safe	62 dB(A)
Angle Of Rotation Adaptation	off (default)
Agency Listing	cULus acc. to UL60730-1A/-2-14, CAN/CSA E60730-1:02, CE acc. to 2014/30/EU and 2014/35/EU; Listed to UL 2043 - suitable for use in air plenums per Section 300.22© of the NEC and Section 602.2 of the IMC
Fail-Safe Function	Spring return
Control Type Web	MFT/Programmable
Fail-Safe	YES
