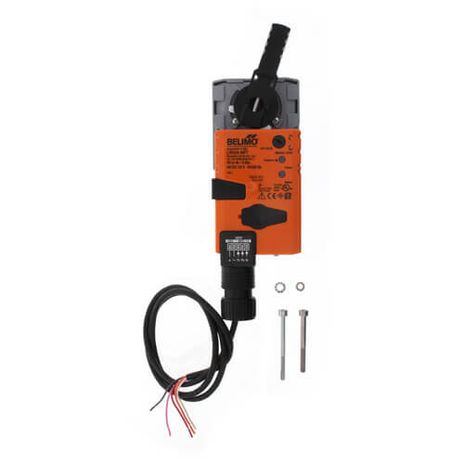

Belimo LRX24-MFT

Configurable, Valve Actuator, Non fail-safe, AC/DC 24 V, 2...10 V, MFT/programmable

Proportional Damper Actuator, Non-Spring Return-Fail-Safe, Output Power Supply 24 VDC Provides Power to Controllers.

Features:

• Cut labor costs with (10 min. installation) simple direct coupling. Actuator Centers on ½” shaft (K6-1, ¾” clamp optional).
• True mechanical spring return - the most reliable failsafe.
• Mount for clockwise or counterclockwise fail-safe.
• Easy-to-adjust mechanical stop to limit damper rotation.
• Check damper position easily with clear position indicator.
• Don’t worry about actuator burn-out. Belimo is overload-proof throughout rotation.
• Need to change control direction Do it easily with a simple switch (modulating actuators).
• Built-in auxiliary switch is easy to use, offers feedback or signal for additional device.
• Microprocessor-controlled brushless DC motor increases actuator life span and reliability, provides constant running time (modulating actuators). Provided on Basic Models
• Rugged metal housing withstands rough handling in the mechanical room.
• 3 ft. cable and conduit connector eases installation.

The LRX24-MFT is used for proportional modulation of dampers and control valves in HVAC systems. The LRX24-MFT provides mechanical non-spring return operation for reliable fail-safe application.

Note: Running Time (motor), Direction of Rotation are figures are variable when configured with MFT options.
