Belimo LMQB24-MFT

SKU: CS3013798MPN: LMQB24-MFT

Damper Actuator, 35 in-lb [4 Nm], Non fail-safe, AC/DC 24 V, 2...10 V, MFT/programmable

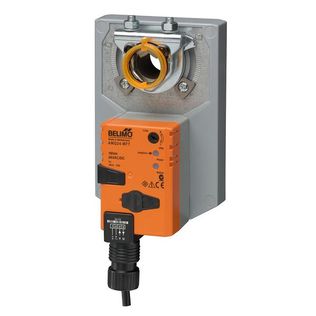

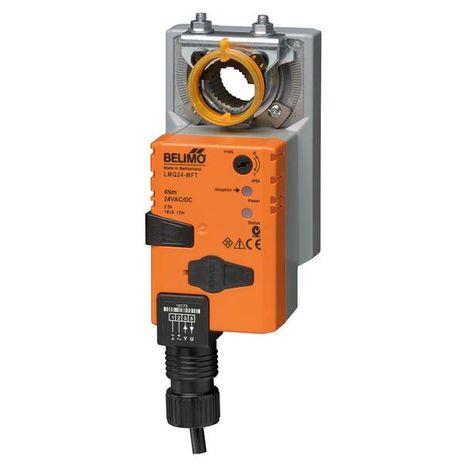

Belimo LMQB24-MFT, LMQX24-1, LMQX24-MFT
$365.73
Unit
1 Unit Available at Factory - Ships Same/Next Business Day
remove
add

Documents

Product Details

Damper Actuator, 35 in-lb [4 Nm], Non fail-safe, AC/DC 24 V, 2...10 V, MFT/programmable

Attributes

Control MFT/programmable
Fail-Safe Non-Spring Return
Torque 35 in-lb
Nominal Voltage AC/DC 24 V
Transformer Sizing 23 VA (class 2 power source) (Imax 20A @ 5ms)
Enclosure UL Enclosure Type 2
Power Supply 24 VAC, ±20%, 50/60 Hz, 24 VDC, ±10%
Power Consumption In Operation 13 W
Power Consumption In Rest Position 1.5 W
Overload Protection electronic throughout 0…95° rotation
Operating Range 2…10 V (default), 4…20 mA w/ ZG-R01 (500 Ω, ¼ W resistor), variable (VDC, on/off)
Operating Range Y Variable Start point 0.5…30 V End point 2.5…32 V
Input Impedance 100 kΩ (0.1 mA), 500 Ω, 1000 Ω (on/off)
Position Feedback 2…10 V, Max. 0.5 mA, VDC variable
Angle Of Rotation adjustable with mechanical end stop, 30…95°
Direction Of Motion Motor selectable with switch 0/1
Position Indication Mechanically, 30…65 mm stroke
Running Time (Motor) default 2.5 s, variable 5 or 10 s
Ambient Humidity max. 95% r.H., non-condensing
Ambient Temperature -22…122°F [-30…50°C]
Storage Temperature -40…176°F [-40…80°C]
Degree Of Protection Iec/En IP54
Degree Of Protection Nema/Ul NEMA 2
Connection cable
Servicing maintenance-free
Housing Material UL94-5VA
Nominal Voltage Dc 24 V
Nominal Voltage Ac 24 V
Noise Level, Motor 52 dB(A)
Torque Motor 35 in-lb [4 Nm]
Quality Standard ISO 9001
Agency Listing cULus acc. to UL60730-1A/-2-14, CAN/CSA E60730-1:02, CE acc. to 2014/30/EU and 2014/35/EU; Listed to UL 2043 - suitable for use in air plenums per Section 300.22© of the NEC and Section 602.2 of the IMC
Shaft Diameter ½…1.05” round, centers on ½” and ¾” with insert, 1.05” without insert
Fail-Safe Function Non fail-safe
Control Type Web MFT/Programmable
Fail-Safe NO

Specifications

SKUCS3013798
MPNLMQB24-MFT
