Honeywell 272630D

Position Feedback and SPDT Pilot Duty Auxiliary Switch

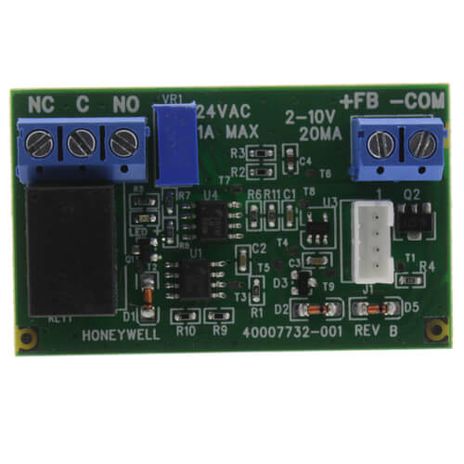

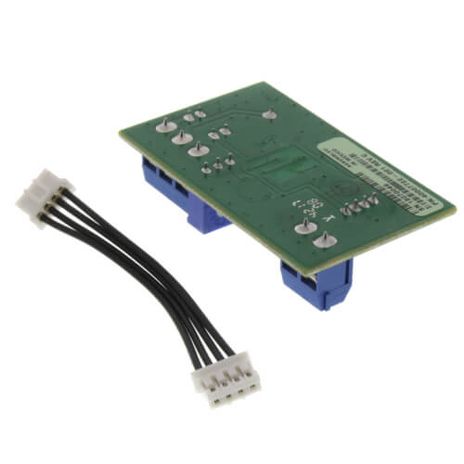

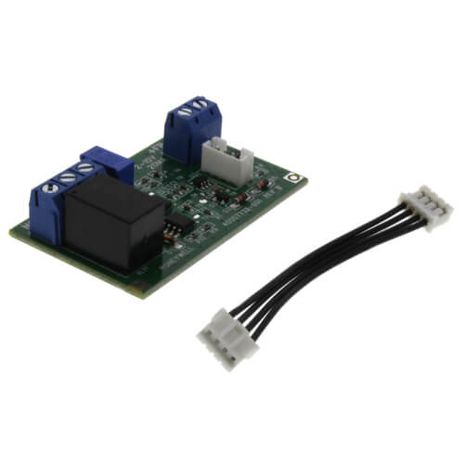

The 272630D auxiliary board is an optional circuit board that is used in conjunction with Series 4000 ML6984 and ML7984 globe valve actuators. This auxiliary board combines the function of an adjustable low voltage SPDT auxiliary switch with a 2-10 Vdc or 4-20 mA position feedback signal. It has a 4-pin keyed connector for communications from the mother circuit board.

• 2-10V position feedback w/auxiliary switch
• Actuator Type - Direct Coupled Valve Actuator Accessory
• Control Signal - 2 to 10 Vdc
• Supply Voltage - 24 Vac
• Switches - 1-SPDT, 1A @ 24Vac
• Feedback - 2-10 Vdc
• Mounting - Daughter card for ML6984/7984
• Electrical Protection - Class I Insulation (24 Vac)
• Electrical Connections - Screw terminals
• Operating Humidity Range (% RH) - 15 to 95% RH at 104 F (40 C)
• Ingress Protection Rating - NEMA 3R, IP54
• Used With - ML6984/ML7984 Series 4000 and higher (ML6984 in 5-wire mode only)
