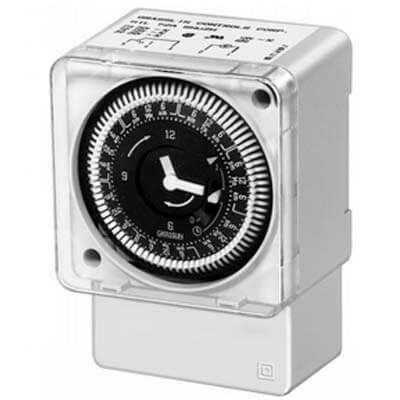

Honeywell ST6008C1004

CLOCK-TYPE, 7-DAY QUARTZ PROGRAMMABLE TIMERS WITH 1 SPDT SWITCHING

Provide 7-day time-based switching.

Features

• Universal application with 24-hour or 7-day programming.
• Battery backup (quartz drive).
• Screw wiring terminals.
• Three-way override.
• Captive trippers.

Specifications

• Clock Type: 7-day quartz (7 day battery reserve)
• Switching: 1 SPDT
• Switch Ratings: 23 A resistive @ 250 V, 1350 W tungsten
• Voltage: 120 Vac
• Frequency: 50 Hz, 60 Hz
• Electrical Connections: Screw terminals
• Mounting: Surface or on DIN rail
• Minimum Timing: 2 hours
• Dimensions: 4 ¼ in. high x 2 15/16 in. wide x 2 ¼ in. deep
• Operating Humidity Range: 0 to 95% RH
• Ambient Temperature Range: -14 to 131 F
