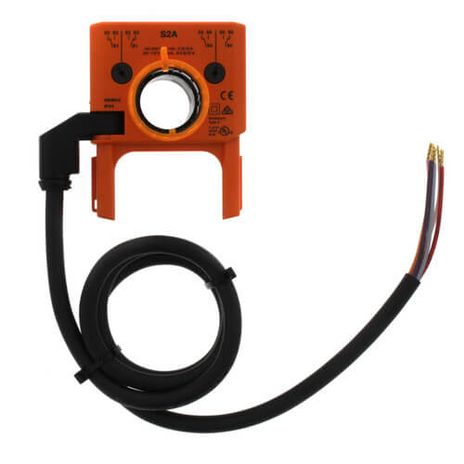

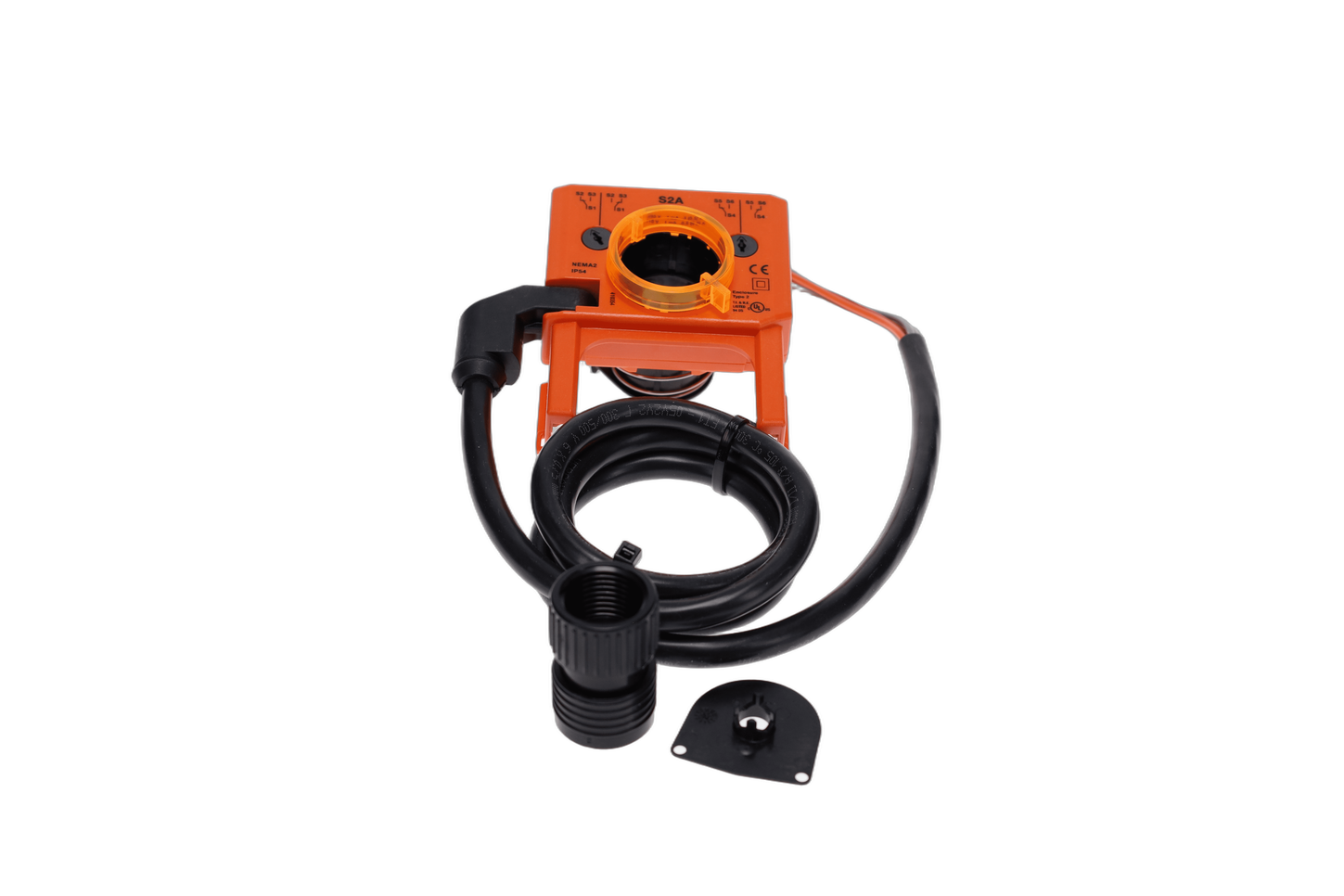

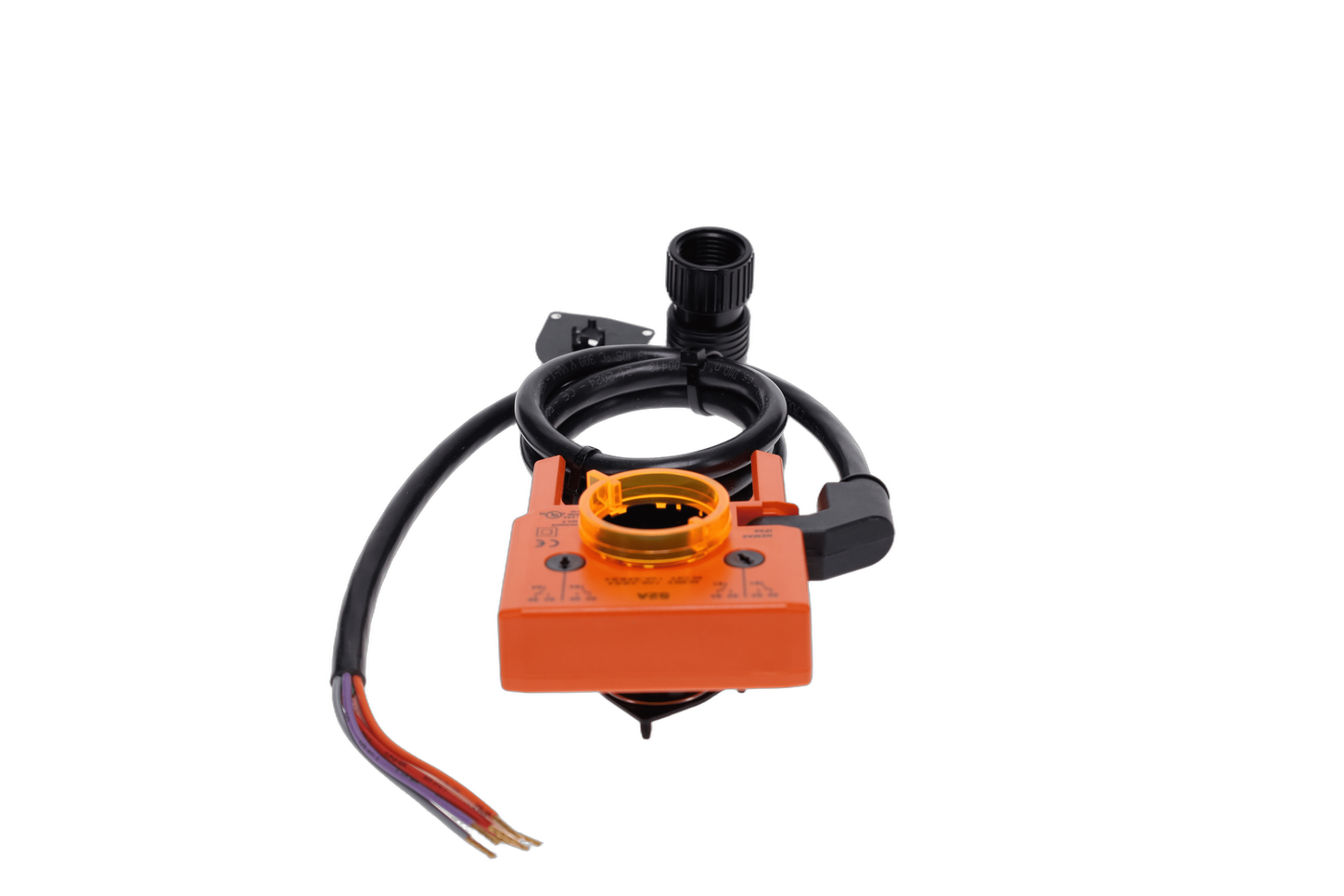

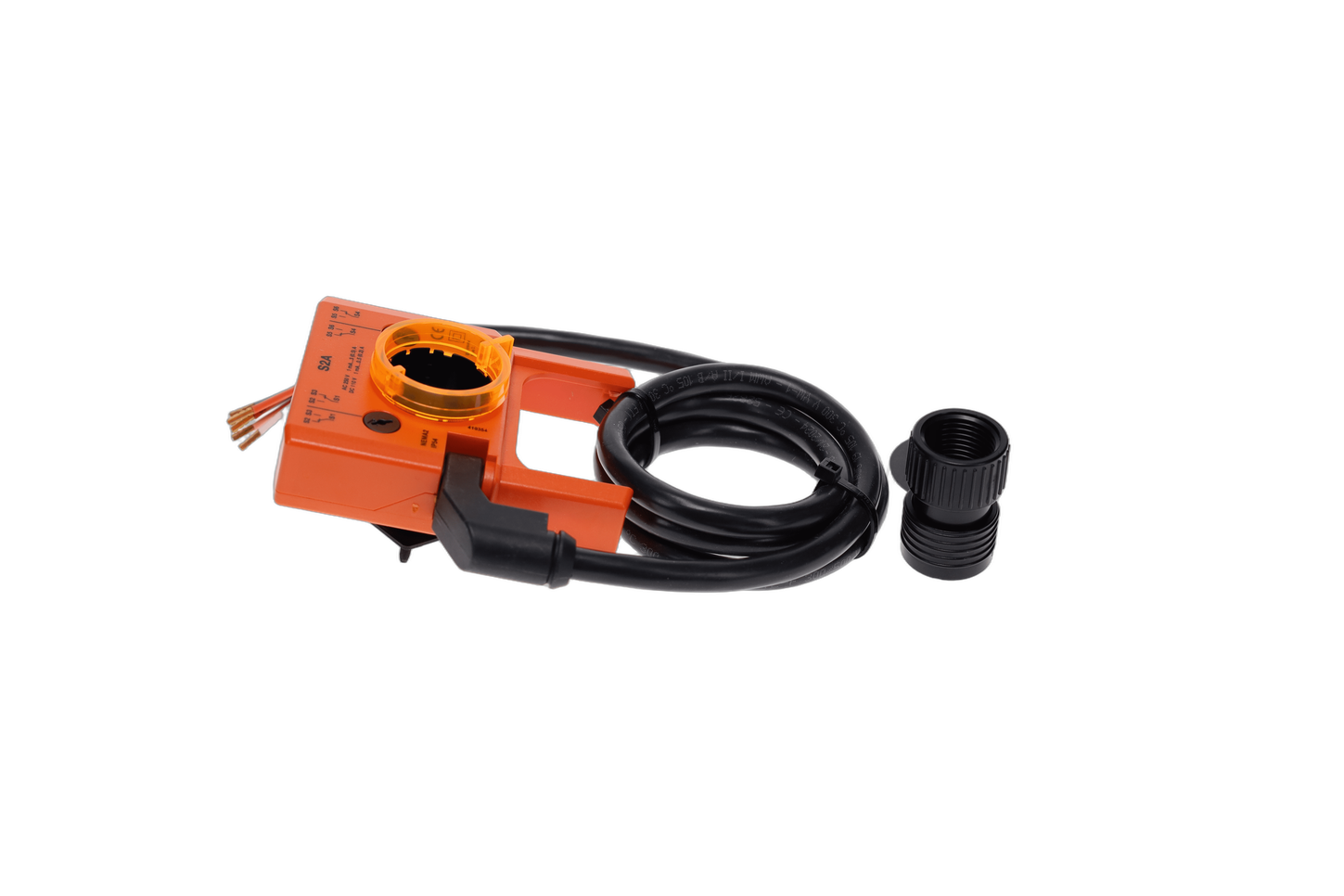

Belimo S2A
SKU: CS467054MPN: S2A
Auxiliary switch 2 x SPDT add-on
Product Details
The S2A auxiliary switch is used to indicate when a desired position of a damper is reached or to interface additional controls for a specific control sequence.
The S2A auxiliary switch is mounted onto the direct coupled actuator. The switch is a modular unit that mounts directly onto LM, NM, AM, and GM type actuators and is locked into place by guiding grooves on the sides of the actuator.
Attributes
| Auxillary Switch | 2 x SPDT |
| Enclosure | UL Enclosure Type 2 |
| Ambient Humidity | max. 95% r.H., non-condensing |
| Ambient Temperature | -22…122°F [-30…50°C] |
| Storage Temperature | -40…176°F [-40…80°C] |
| Degree Of Protection Iec/En | IP54 |
| Degree Of Protection Nema/Ul | NEMA 2 |
| Connection | cable |
| Servicing | maintenance-free |
| Mode Of Operation | Type 1.B |
| Auxiliary Switch | 2 x SPDT, adjustable 0…100% |
Specifications
| SKU | CS467054 |
|---|---|
| MPN | S2A |
You may also like
Belimo S1A
$73.67Unit
Belimo S2A-F US
$263.90UnitTrane SWT04498
Contact us for pricing and availability
Belimo AFB24-S
$456.37Unit

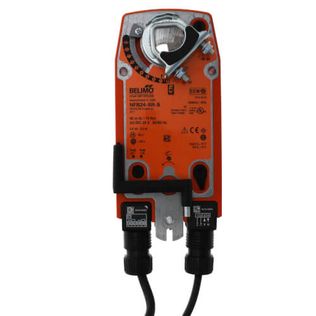

Belimo NFB24-SR-S
$494.43Unit
Belimo AFBUP-S
$499.89Unit
Belimo EFB120-S
$949.00Unit
Belimo EFB24-S
$864.93Unit
Belimo NFB24-S
$389.13Unit
Belimo TFCB120-S
$298.13Unit
Belimo TFB24-S
$249.60Unit

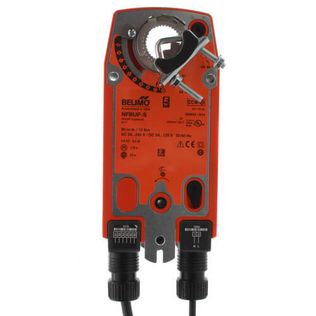

Belimo NFBUP-S
