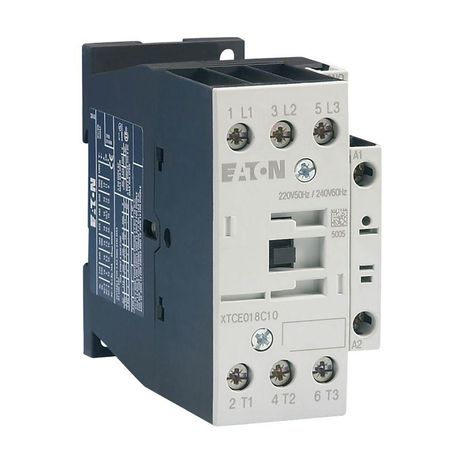

Eaton XTCE025C10A

Name: Eaton XTCE025C10A
Brand: Eaton
SKU: CS1782037
Price: 94.60 USD
Availability: InStock

SKU: CS1782037MPN: XTCE025C10AAlternate Part #: MSAA277129UPC/EAN: 04015082771294

Eaton XT IEC contactor

$94.60

Unit

4 in stock

Quantity

remove

add

Product Details

Eaton XT IEC contactor, 25A, 110 Vac 50 Hz, 120 Vac 60 Hz, 1NO, 25A, Frame C, 45 mm, 50-60 Hz, 2, 3, 5/ 7.5, 10, 15, 20 hp (⅓PH @115, 200, 230/200, 230, 460, 575 V), Three-pole, Screw terminals, Full voltage non-reversing contactor

Attributes

Amperage Rating	25A
Coil	110-120 Vac, 50/60 Hz
Coil Voltage	110-120 Vac, 50/60 Hz
Contact Configuration	1 NO
Continuous Ampere Rating	25 A
Frame Size	45 mm
Frequency Rating	50-60 Hz
Hp Rating Max	2, 3, 5/ 7.5, 10, 15, 20 hp (⅓PH @115,200,230/200,230,460,575 V)
Number Of Poles	Three-pole
Operation	Non-reversing
Series	XT IEC
Terminals	Screw terminals
Type	Full voltage non-reversing contactor
