Square D XS630B1MAL2

Name: Square D XS630B1MAL2
Brand: Square D
SKU: CS686536
Availability: InStock

SKU: CS686536MPN: XS630B1MAL2UPC/EAN: 3389110147360

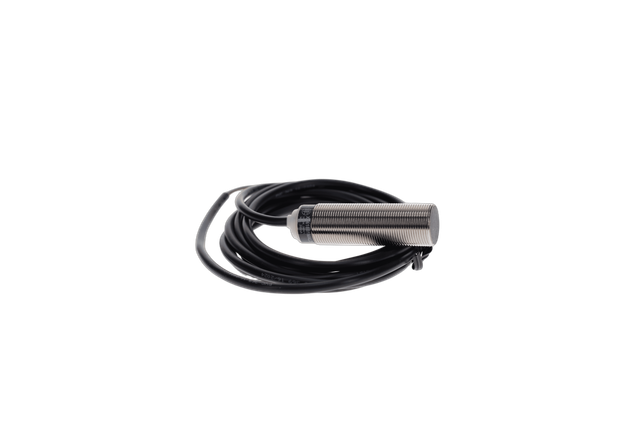

Inductive proximity sensors XS, inductive sensor XS6 M30, L62mm, brass, Sn15mm, 24...240VAC/DC, cable 2 m

1 in stock

Product Details

INDUCTIVE SENSOR XS6 M30

Ambient Air Temperature For Operation	-25-70 °C
Ambient Air Temperature For Operation 1	-25-70 °C
Ambient Air Temperature For Storage	-40-85 °C
Body Type	fixed
Cable Composition	2 x 0.34 mm²
Detection Face	frontal
Detector Flush Mounting Acceptance	flush mountable
Differential Travel	1…15% of Sr
Discrete Output Function	1 NO
Enclosure Material	nickel plated brass
Front Material	PPS
Marking	CE
Marking 1	CE
Material	metal
Maximum Delay First Up	25 ms
Maximum Delay Recovery	2 ms
Maximum Delay Response	0.5 ms
Operating Zone	0-12 mm
Output Circuit Type	AC/DC
Product Certifications	CSA# #UL
Range Of Product	Telemecanique Inductive proximity sensors XS
Sensing Range	> 8…15 mm
Sensor Design	cylindrical M30
Sensor Name	XS6
Sensor Type	inductive proximity sensor
Series Name	general purpose
Size	62 mm
Thread Type	M30 x 1.5
Type Of Output Signal	discrete
Wire Insulation Material	PvR
Wiring Technique	2-wire
