Square D XB5AW35G5

Name: Square D XB5AW35G5
Brand: Square D
SKU: CS4813987
Price: 126.06 USD
Availability: OutOfStock

SKU: CS4813987MPN: XB5AW35G5

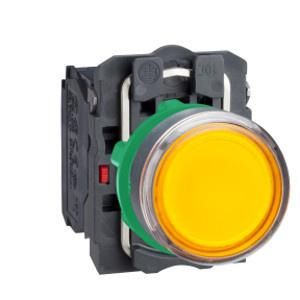

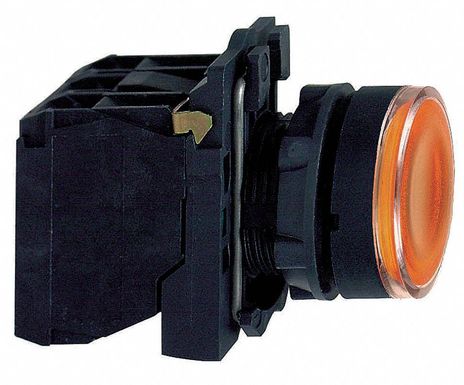

Illuminated push button, Harmony XB5, plastic, orange flush, 22mm, universal LED, plain lens, 1NO + 1NC, 110...120V AC

$126.06

Unit

Available on backorder

Quantity

remove

add

Product Details

Harmony Flush Illuminated Pushbutton

Mounting Diameter: 22mm* Shape of Signaling Unit Head: Round* Type of Operator: Spring Return* Operator Profile: Orange flush unmarked* Operator Additional Information: With plain lens* Contacts Type and Composition: 1 NO + 1 NC* Contact Operation: Slow-break* Connections-Terminals: Screw clamp terminals* Rated Supply Voltage: 110-120V AC 50/60 Hz* Light Source: Protected LED

Ambient Air Temperature For Operation	-40-70 °C
Ambient Air Temperature For Operation 1	-40-70 °C
Ambient Air Temperature For Storage	-40-70 °C
Bezel Material	dark grey plastic
Bulb Base	integral LED
Cap Operator Or Lens Colour	orange
Cap Operator Or Lens Colour 1	orange
Contact Operation	slow-break
Contacts Material	silver alloy (Ag/Ni)
Contacts Type And Composition	1 NO + 1 NC
Contacts Usage	standard contacts
Current Consumption	14 mA
Device Presentation	complete product
Device Short Name	XB5
Fixing Collar Material	plastic
Head Type	standard
Light Source	protected LED
Mechanical Durability	10000000 cycles
Mounting Diameter	22 mm
Operator Additional Information	with plain lens
Product Certifications	UL listed# #GL# #BV# #DNV# #LROS (Lloyds register of shipping)# #CSA
Product Or Component Type	illuminated push-button
Protective Treatment	TH
Range Of Product	Harmony XB5
Sale Per Indivisible Quantity	1.0000
Shape Of Signaling Unit Head	round
Signalling Type	steady
Signalling Type 1	steady
Terminals Description Iso N 1	(21-22)NC# #(13-14)NO
