Schneider Electric 9036DW31R

Name: Schneider Electric 9036DW31R
Brand: Schneider Electric
SKU: CS1652278
Availability: OutOfStock

SKU: CS1652278MPN: 9036DW31RAlternate Part #: SENA-9036DW31RUPC/EAN: 785901064336

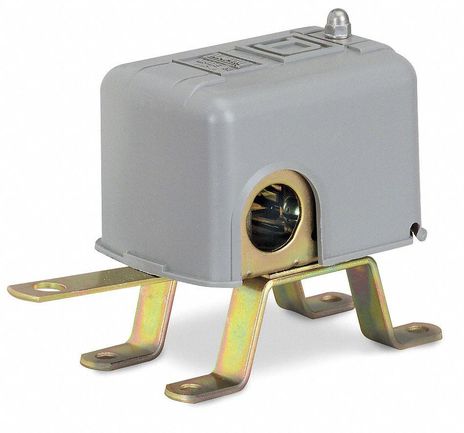

Float switch, Pumptrol, open tank, NEMA 4, pedestal mounted, 2 NO DPST DB contacts

Discontinued - Contact Us For Pricing & Availability

Product Details

Float Switch:

Type: D* For open tank or sump applications* Enclosure Rating: NEMA 4* 1-Phase: 2HP@115VAC - 3HP@230VAC; 3-Phase: 3HP@115VAC - 5HP@230VAC - 1HP@460/575; 0.25HP@32VDC - 0.5HP@115/230VDC* Mounting: Bracket* 575VAC* 2 Normally Closed* 2-Pole

Ambient Air Temperature For Operation	-22-220 °F
Ambient Air Temperature For Operation 1	-22-220 °F
Ambient Air Temperature For Storage	-22-220 °F
Device Application	open tank general purpose
Device Mounting	pedestal
Device Short Name	9036D
Electrical Circuit Type	power circuit
Enclosure Material	cast aluminium
Factory Modification	without
Float Position	any
Float Rod Angle	vertical
Kit Composition	rod and float are to be choosen in accessories# #float switch
Local Signalling	without
Maximum Operating Rate	60 cyc/mn
Mechanical Durability	300 cycles
Operating Position	vertical position only
Product Certifications	UL listed file E12158# #CSA file LR25490
Product Destination	for open tank or sump
Product Or Component Type	float switch
Product Specific Application	liquid level control
Quantity Per Set	set of 1
Range Of Product	Square D Pumptrol
Standards	UL 508# #CE
Terminal Block Type	4 terminals
Terminals Description Iso N 1	line-load-load-line
Type Of Packing	individual
