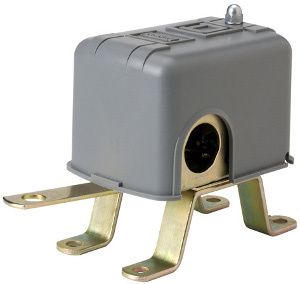

Telemecanique 9036DG2CR

Name: Telemecanique 9036DG2CR
Brand: Telemecanique
SKU: CS4810295
Availability: OutOfStock

SKU: CS4810295MPN: 9036DG2CRUPC/EAN: 785901716563

Float switch, Square D Pumptrol, open tank, NEMA 1, pedestal mounted, 2 NO DPST DB contacts

Product Details

Float Switch:

Type: D* For open tank or sump applications* Enclosure Rating: NEMA 1* 1-Phase: 2HP@115VAC - 3HP@230VAC; 3-Phase: 3HP@115VAC - 5HP@230VAC - 1HP@460/575; 0.25HP@32VDC - 0.5HP@115/230VDC* Mounting: Bracket* 575VAC* 2 Normally Closed* 2-Pole

Sena Ambient Air Temperature For Operation	-22-220 °F
Sena Ambient Air Temperature For Operation 1	-22-220 °F
Sena Ambient Air Temperature For Storage	-22-220 °F
Sena Device Application	open tank general purpose
Sena Device Mounting	pedestal
Sena Device Short Name	9036D
Sena Electrical Circuit Type	power circuit
Sena Enclosure Material	polypropylene or equivalent
Sena Factory Modification	compensating spring
Sena Float Position	any
Sena Float Rod Angle	vertical
Sena Kit Composition	float switch# #rod and float are to be choosen in accessories
Sena Local Signalling	without
Sena Maximum Operating Rate	60 cyc/mn
Sena Mechanical Durability	300 cycles
Sena Operating Position	vertical position only
Sena Product Certifications	CSA file LR25490# #UL listed file E12158
Sena Product Destination	for open tank or sump
Sena Product Or Component Type	float switch
Sena Product Specific Application	liquid level control
Sena Quantity Per Set	set of 1
Sena Range Of Product	Square D Pumptrol
Sena Standards	CE# #UL 508
Sena Terminal Block Type	4 terminals
Sena Terminals Description Iso N 1	line-load-load-line
Sena Type Of Packing	individual
