Telemecanique 9038AW1N5

Name: Telemecanique 9038AW1N5
Brand: Telemecanique
SKU: CS1652359
Availability: OutOfStock

SKU: CS1652359MPN: 9038AW1N5UPC/EAN: 785901173908

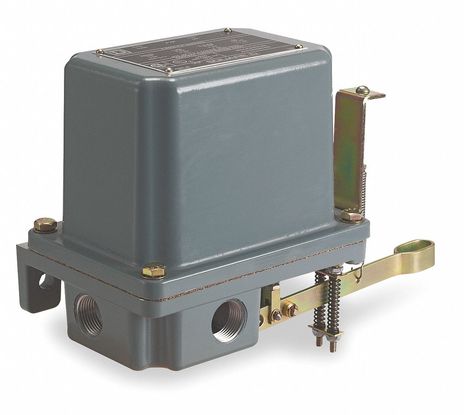

Mechanical alternator, Square D Pumptrol, mech open tank, NEMA 4, pedestal mounted, 4 NC DPST DB contacts

Product Details

Mechanical Alternator:

Type: A* To provide a simple* positive means of mechanically alternating two pumps or motors* Enclosure Rating: NEMA 4* 1-Phase: 2HP@115VAC - 3HP@230VAC; 3-Phase: 3HP@115VAC - 5HP@230VAC - 1HP@460/575; 0.25HP@32VDC - 0.5HP@115/230VDC* Mounting: Flange* 575VAC* 2 Normally Open* 2-Pole

Sena Ambient Air Temperature For Operation	-22-220 °F
Sena Ambient Air Temperature For Operation 1	-22-220 °F
Sena Ambient Air Temperature For Storage	-22-220 °F
Sena Device Application	open tank
Sena Device Mounting	pedestal
Sena Device Short Name	9038A
Sena Electrical Circuit Type	power circuit with control duty alarm
Sena Enclosure Material	cast aluminium
Sena Factory Modification	addition of a third, high-water alarm circuit (SPST-NO-DB)
Sena Float Position	any
Sena Float Rod Angle	vertical
Sena Kit Composition	float switch# #rod and float are to be choosen in accessories
Sena Local Signalling	without
Sena Maximum Operating Rate	60 cyc/mn
Sena Mechanical Durability	300 cycles
Sena Operating Position	vertical position only
Sena Product Certifications	UL listed file E12158# #CSA file LR25490
Sena Product Destination	for open tank
Sena Product Or Component Type	mechanical alternator
Sena Product Specific Application	mechanically alternating the operation of two pumps or motors
Sena Quantity Per Set	set of 1
Sena Range Of Product	Square D Pumptrol
Sena Standards	CE# #UL 508
Sena Terminal Block Type	8 terminals
Sena Terminals Description Iso N 1	line-load-load-line
Sena Type Of Packing	individual
