Schneider Electric 9036DR31C

Name: Schneider Electric 9036DR31C
Brand: Schneider Electric
SKU: CS1652277
Availability: OutOfStock

SKU: CS1652277MPN: 9036DR31CAlternate Part #: SENA-9036DR31CUPC/EAN: 785901064374

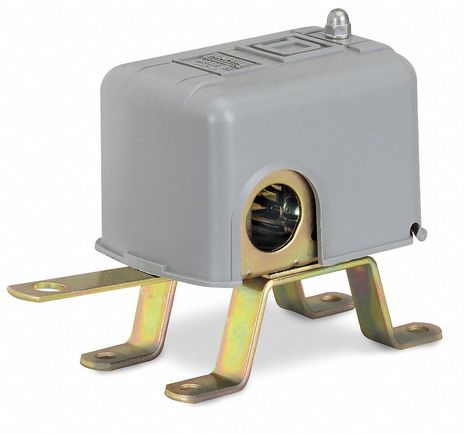

Float switch, Pumptrol, open tank, NEMA 7/9, pedestal mounted, 2 NC DPST DB contacts

Product Details

Float Switch:

Type: D* For open tank or sump applications* Enclosure Rating: NEMA 7/9* 1-Phase: 2HP@115VAC - 3HP@230VAC; 3-Phase: 3HP@115VAC - 5HP@230VAC - 1HP@460/575; 0.25HP@32VDC - 0.5HP@115/230VDC* Mounting: Bracket* 575VAC* 2 Normally Open* 2-Pole

Ambient Air Temperature For Operation	-22-220 °F
Ambient Air Temperature For Operation 1	-22-220 °F
Ambient Air Temperature For Storage	-22-220 °F
Device Application	open tank general purpose
Device Mounting	pedestal
Device Short Name	9036D
Electrical Circuit Type	power circuit
Enclosure Material	cast aluminium
Factory Modification	compensating spring
Float Position	any
Float Rod Angle	vertical
Kit Composition	float switch# #rod and float are to be choosen in accessories
Local Signalling	without
Maximum Operating Rate	60 cyc/mn
Mechanical Durability	300 cycles
Operating Position	vertical position only
Product Certifications	UL listed file E12443# #CSA file LR26817
Product Destination	for open tank or sump
Product Or Component Type	float switch
Product Specific Application	liquid level control
Quantity Per Set	set of 1
Range Of Product	Square D Pumptrol
Standards	UL 508# #CE
Terminal Block Type	4 terminals
Terminals Description Iso N 1	line-load-load-line
Type Of Packing	individual
