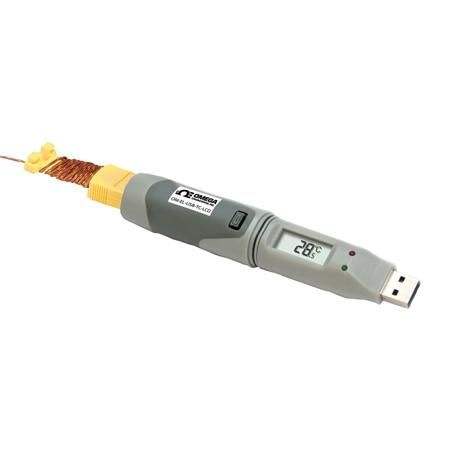

Omega OM-EL-USB-TC-LCD
SKU: CS5803551MPN: OM-EL-USB-TC-LCD
Thermocouple Data Logger with LCD Display and USB Interface
Product Details
- High Contrast LCD with 4-Digit Temperature Indication
- Accepts Type J, K or T Thermocouples
- 2 User-Programmable Alarm Thresholds
- Status Indication Via Red and Green LEDs
Attributes
| Width | 25.3 mm |
| Height | 134.5 mm |
| Weight | 114 g |
| Series ID | OM-EL-USB-TC-LCD-Logger |
| Alarm Note | High/Low Alarms |
| Input Type | TC |
| Form factor | Handheld |
| Samples,Max | 32510 |
| Battery life | up to 6 mo |
| Display Type | LCD |
| Sampling Rate | 1 Hz (1 update/second) |
| Data Interface | USB |
| LED Indicators | 2 LEDs |
| Measurement Type | Temperature |
| Country of Origin | China |
| Display Type Note | °C or °F selectable in software |
| Supply Power Type | Battery |
| Sampling Rate Note | 1 sec, 10 sec, 1 min, 5 min, 30 min, 1 hr, 6 hr, 12 hr (selectable in software) |
| Temperature Accuracy | ± 1.0°C |
| Battery Size and Type | ½ AA Li-ion |
| Electrical Connection | Sub-D Female Miniature Connector |
| Number of Measurements | 1 |
| Software Compatibility | Windows® XP/VISTA/7 and 8 (32- and 64-bit) |
| Temperature Resolution | 0.5 °C |
| Display Measuring Units | °C, °F |
| Temperature Sensor Type | Thermocouple |
| Operating Temperature, Max | 40 °C |
| Operating Temperature, Min | -10 °C |
Specifications
| SKU | CS5803551 |
|---|---|
| MPN | OM-EL-USB-TC-LCD |
You may also like

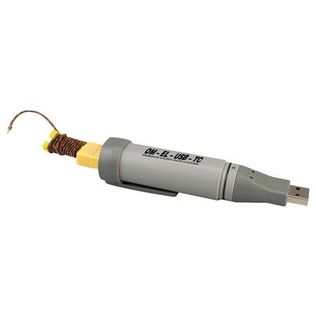

Omega OM-EL-USB-TC
$189.91Unit

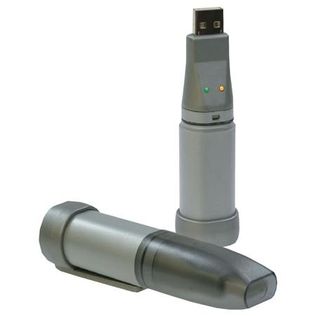

Omega OM-EL-USB-1
$178.10Unit

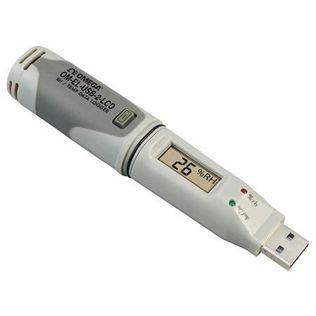

Omega OM-EL-USB-2-LCD
$288.17Unit
Omega OM-EL-USB-1-PRO-A
$329.26UnitOmega OM-EL-USB-2-LCD-PLUS
$342.09UnitOmega OM-EL-USB-2-PLUS
$249.84Unit

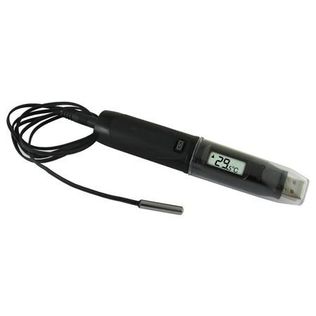

Omega OM-EL-USB-TP-LCD
$235.66UnitOmega OM-EL-USB-TP-LCD-PLUS
$236.68Unit
Omega OM-20A-TC
$152.73Unit

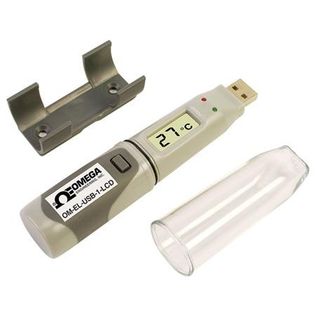

Omega OM-EL-USB-1-LCD
