Omega OM-240

Name: Omega OM-240
Brand: Omega
SKU: CS5802788
Price: 5344.82 USD
Availability: OutOfStock

SKU: CS5802788MPN: OM-240

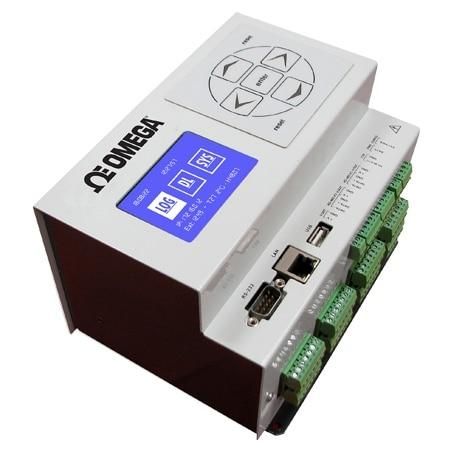

Omega 24 Channel Ethernet Data Logger with Embedded Web Server

$5,344.82

Unit

Available on backorder

Quantity

remove

add

Product Details

Omega Enterprise Gateway Compatible
24 Differential, Independent Analog Input Channels, 2 Digital Inputs and 1 Digital Output
On-Board Web Server for Setup, Data View, and Diagnostic
Independent Thermocouples, PT100/200/500/1000, NTC, mV, mA, mV/V, Vibrating Wire

Attributes

Width	5.43 in
Height	9.09 in
Length	4.61 in
Memory	1 MB RAM, 2 GB SD card
Weight	2.16 lb
Display	LCD
RTD Type	100/200/500/1000Ω Pt sensor
Baud Rate	9600 to 115200
Series ID	OM-240-Logger
Alarm Note	Max Input Voltage: 24V (max current: 10mA), Min Input Voltage: 5V (max current: 2mA), Measurement Rate: max frequency 1 kHz, Accuracy: 0.1 Hz, Two opto-isolated digital inputs individually selectable for switch closure. One relay output (for alarm, etc.): volt-free closure (low voltage 30V, 2A)
Input Type	External
Memory Note	2 GB SD card for data (about 5 Mega data points) and Web pages
Samples,Max	5M Samples, Interval 1 Sec up to 1 Week
Sensor Type	Thermocouple, RTD, Thermistor
Current, Max	5 A
Display Note	Small backlight graphic LCD 128 x 64 dpi with membrane keyboard for the minimal local management without the PC. Keyboard for starting a data acquisition scan, sequential display of the last stored readings for each channel (sensor ID, converted unit reading, unit of measure), device status, data download and firmware/Web pages update by USB pen drive, safe mode (back-up/format/restore internal SD card).
Configuration	WindowsPC Software, Independent OS Platform
Data Interface	Ethernet, RS485, RS232, USB
Supply Voltage	10 to 30 Vdc
Impedance Input	20 MΩ
Resolution Note	Thermocouple Resolution: 1 µV at FS for ± 10 mV range; 10 µV at FS for ± 100 mV range; 100 µV at FS for ± 1 V range, Voltage Resolution: ± 10 mV: 1 µV at FS, ± 100 mV: 10 µV at FS, ± 1 V: 100 µV at FS, ± 10 V: 10 mV at FS
Thermistor Type	3000 Ω @25 °C, NTC
Current Accuracy	0.0001
Measurement Type	Current, Strain, Temperature, Voltage
Voltage Accuracy	0.01%, On-Board: ± 1%, Wheatstone Bridge: 0.01%
Country of Origin	Italy
Relative Humidity	80% RH
Software Packages	Acquisition Time Interval: Selectable from 1 second up to 1 week (depends on the number of channels acquired) FTP client: To send data/alarms on an FTP server (SFTP not supported) MAIL to send data/alarm: To max 5 email address (SMTPS / SSL not supported) SMS to Send Alarms: To max 5 telephone numbers Data Download: (measure, logs) in .csv file (compatible with Microsoft Excel) Virtual Channels Management: For Math operations between channels
Supply Power Note	10 to 30 Vdc (reverse polarity protected), max 5A, RTD Power Supply: 1.2mA, Thermistor Power Supply: 0.05mA, 0.1mA, 1.2mA, Voltage Power: 5V, 10V, 20V, 24V DC, Current Power: 10V, 24V DC, Wheatstone Bridge Power Supply: ± 10 mV/V, External Rechargeable Batteries: 12 Vdc nominal, Switched Output Power Supply: The voltage ‘V OUT’ is switched on and off under program control. V OUT is the unregulated input power supply ‘V IN’ (2 A Max)
Supply Power Type	DC
Thermocouple Type	J, K, T, E, N, R, B, S
Data Interface Note	LAN Ethernet: 10/100 Mbps, RJ45, Isolated RS232: 9-pin, DE9. DCE port for optional GSM/GPRS modem connection Baud Rates: selectable from 9600 bps to 115.2 kbps Default Format: 8 data bits; 1 stop bits; no parity USB: USB 2.0 pen drive only (FAT 32), 5 V 200 mA RS485#1 AND RS485#2 Connection: 5 screw clamp port for max. No.254 Modbus RS485 digital bus sensors Communication Interface: RS485 - Optoisolated Communication Protocol: MODBUS RTU
Input Noise Voltage	5.42 µV pp
Temperature Accuracy	Thermocouple: K: ± 1,99 °C, B: ± 1,22 °C, J: ± 1,04 °C, T: ± 1,99 °C, E: ± 0,93 °C, R: ± 1,64 °C, N: ± 1,24 °C, S: ± 1,64 °C, RTD: 0.17%, Thermistor: -50 to 0°C: ± 2 °C, 0 to 150°C: ± 1 °C
External Sensor Range	Thermocouple: K -200 to 1370°C, B 600 to 1820°C, J -200 to 1200°C, T -200 to 400°C, E -200 to 1000°C, R -20 to 1760°C, N -260 to 1300°C, S -20 to 1760°C, Thermistor: -50 to 150°C
Number of Measurements	24
CPU and Memory Processor	ARM Cortex-M3 MCU with 1 MB Flash, 120 MHz CPU, ART Accelerator, Ethernet
Storage Temperature, Max	85 °C
Storage Temperature, Min	-40 °C
Temperature Sensor Drift	< 10 ppm/°C, range -30 to 70°C
Current Measurement Range	4 to 20 mA
Voltage Measurement Range	± 10 mV, ± 100 mV, ± 1 V, ± 10 V, Wheatstone Bridge: ± 10 mV/V
Operating Temperature, Max	60 °C
Operating Temperature, Min	-30 °C
