Schneider Electric XD4PA24

Name: Schneider Electric XD4PA24
Brand: Schneider Electric
SKU: CS1457691
Availability: OutOfStock

SKU: CS1457691MPN: XD4PA24Alternate Part #: SQD-XD4PA24

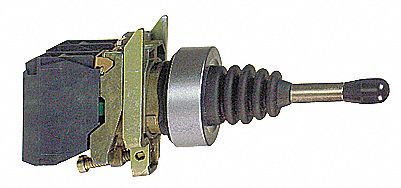

Joystick controller, Harmony XB4, metal, 22mm, 4 directions, spring return, 1NO

Product Details

Harmony Joystick Controller

Mounting Diameter: 22mm* Type of Operator: Spring return to 0 position, long operating shaft 54 mm length* Operator Direction Information: 4-Directions* Contacts Type and Composition: 1 NO* Connections-Terminals: Screw clamp terminals* Conventional Free Air Thermal Current: 10A* Rated Insulation Voltage: 600V* Degree of Protection: NEMA 13, 4X

Ambient Air Temperature For Operation	-25-70 °C
Ambient Air Temperature For Operation 1	-25-70 °C
Ambient Air Temperature For Storage	-40-70 °C
Bezel Material	chromium plated metal
Contact Operation	slow-break
Contacts Material	silver alloy (Ag/Ni)
Contacts Type And Composition	1 NO
Contacts Usage	standard
Device Presentation	complete product
Device Short Name	XD4
Fixing Collar Material	zamak
Mechanical Durability	1000000 cycles
Mounting Diameter	22 mm
Notch Per Direction	44562.0000
Operator Direction Information	4 directions
Operator Position Information	5 positions
Product Certifications	UL listed# #LROS (Lloyds register of shipping)# #CSA# #BV# #DNV# #GL
Product Or Component Type	joystick controller
Protective Treatment	TH
Range Of Product	Harmony XDA
Sale Per Indivisible Quantity	1.0000
Shape Of Signaling Unit Head	round
Standards	EN/IEC 60947-5-1# #UL 508# #EN/IEC 60947-5-5# #CSA C22.2 No 14# #JIS C8201-5-1# #EN/IEC 60947-1# #EN/IEC 60947-5-4# #JIS C8201-1
