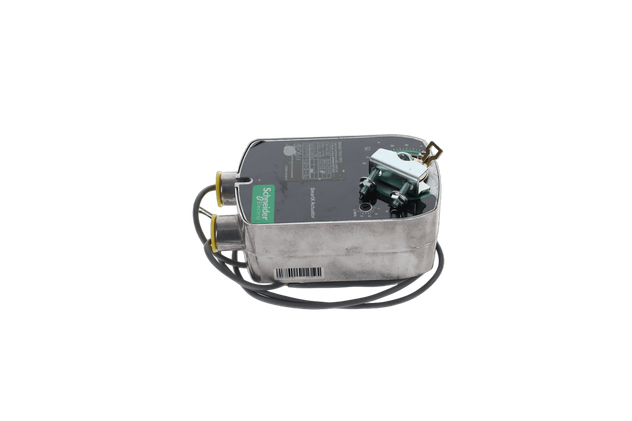

Schneider Electric MF40-7043

SKU: CS129810MPN: MF40-7043UPC/EAN: 711426390179

SmartX, Damper Actuator, floating, spring return, 24 Vac/Vdc, 3 ft plenum cable, 35 lb-in, NEMA 2

Schneider Electric MA40-7040, MA40-7043, MF40-7043, MS40-7043, MS40-7043-501
$278.02
Unit
3 in stock
remove
add

Product Details

Actuator: (MF40-7043):

  • Actuator Type: Electric
  • Control Signal: Floating
  • Loss of Power Type: Spring Return
  • Power Input Voltage: 22 to 30 VDC, 24 VAC/VDC
  • Leads and Connections: 3 ft Plenum
  • Torque: 35 in-lb
  • Mechanical Movement: Rotary
  • Protection Rating: NEMA 2
  • Product Line: Schneider Electric
  • Product Range: SmartX Actuator
  • Product Series: Mx4x-7xxx
  • Actuator Use: Dampers, Globe Valves

Product Alert: Linkage required for Globe Valve Assembly use.

Attributes

Us Rated Supply Voltage 22…30 V DC 24 V AC/DC
Actuator rotary
Actuator Rotation 100 °
Ambient Air Temperature For Operation -30-60 °C
Ambient Air Temperature For Storage -40-71 °C
Control Type manual override with 5/32 allen wrench
Electrical Insulation Class class II
Ip Degree Of Protection IP11
Material die cast aluminium: housing
Motor Type brushless DC motor
Nema Degree Of Protection NEMA 2
Power Consumption In Va 5.9 VA AC
Product Destination dampers globe valve
Product Or Component Type actuator
Relative Humidity 5-95 % non-condensing
Switch Function No
Targeted Region North America.# #Australia.
Taxoclass Id PTC_D54013_XXX
Tightening Torque 35 lb.in# #4 N.m

Specifications

SKUCS129810
MPNMF40-7043
UPC/EAN711426390179
