HVAC/RActuatorsSchneider Electric

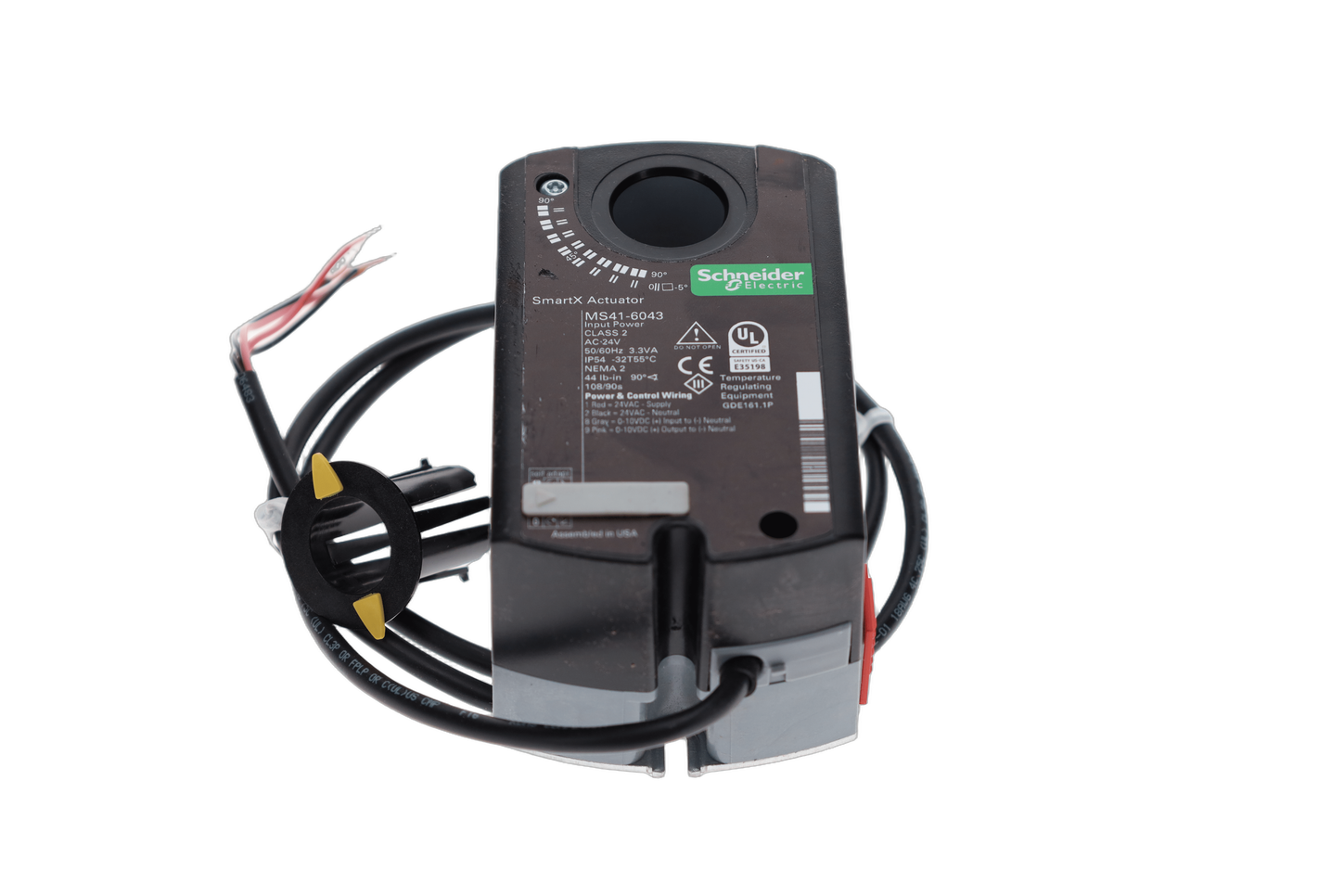

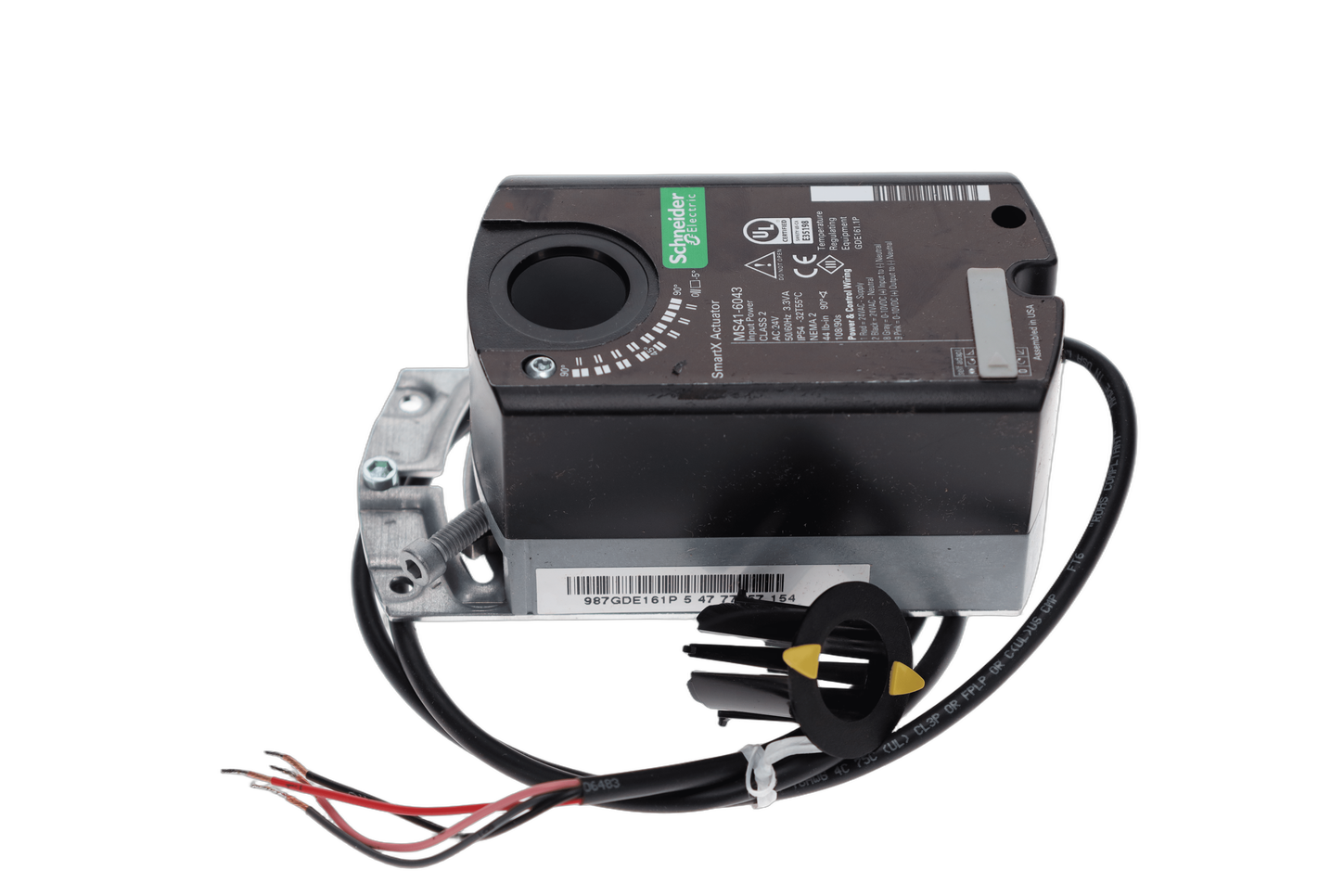

Schneider Electric MS41-6043

SKU: CS68776MPN: MS41-6043UPC/EAN: 711426072891

SmartX, Damper Actuator, proportional 0-10 Vdc, non-spring return, 24 Vac, 3 ft plenum cable, 44 lb-in, NEMA 2

Schneider Electric MF41-6043, MF41-6083, MS41-6043, MS41-6083, VZ8250VAVKIT1
$156.97
Unit
7 in stock
remove
add

Product Details

Actuator: (MS41-6043):

  • Actuator Type: Electric
  • Control Signal: Proportional
  • Control Signal Range: 0 to 10 VDC
  • Loss of Power Type: Non-Spring Return
  • Power Input Voltage: 24 VAC
  • Leads and Connections: 3 ft Plenum
  • Torque: 44 in-lb
  • Mechanical Movement: Rotary
  • Protection Rating: NEMA 2
  • Product Line: Schneider Electric
  • Product Range: SmartX Actuator
  • Product Series: Mx4x-6xxx
  • Actuator Use: Dampers, Globe Valves

Product Alert: Linkage required for Globe Valve Assembly use.

Attributes

Us Rated Supply Voltage 24 V AC
Actuator rotary
Actuator Rotation 95 °
Ambient Air Temperature For Operation -31.6-54.4 °C
Ambient Air Temperature For Storage -40-70 °C
Analogue Input Range 0…10 V DC
Control Type automatic reset
Electrical Insulation Class class II
Hold In Power Consumption In Va 1.2-1.2 VA AC
Ip Degree Of Protection IP11
Material polymer: housing
Motor Type AC synchronous servo motor
Nema Degree Of Protection NEMA 2
Power Consumption In Va 3.3 VA AC
Power Consumption In W 3 W
Product Destination dampers globe valve
Product Or Component Type actuator
Relative Humidity 5-95 % non-condensing
Switch Function No
Targeted Region North America.# #Australia.
Taxoclass Id PTC_D54013_XXX
Tightening Torque 44 lb.in# #5 N.m

Specifications

SKUCS68776
MPNMS41-6043
UPC/EAN711426072891
