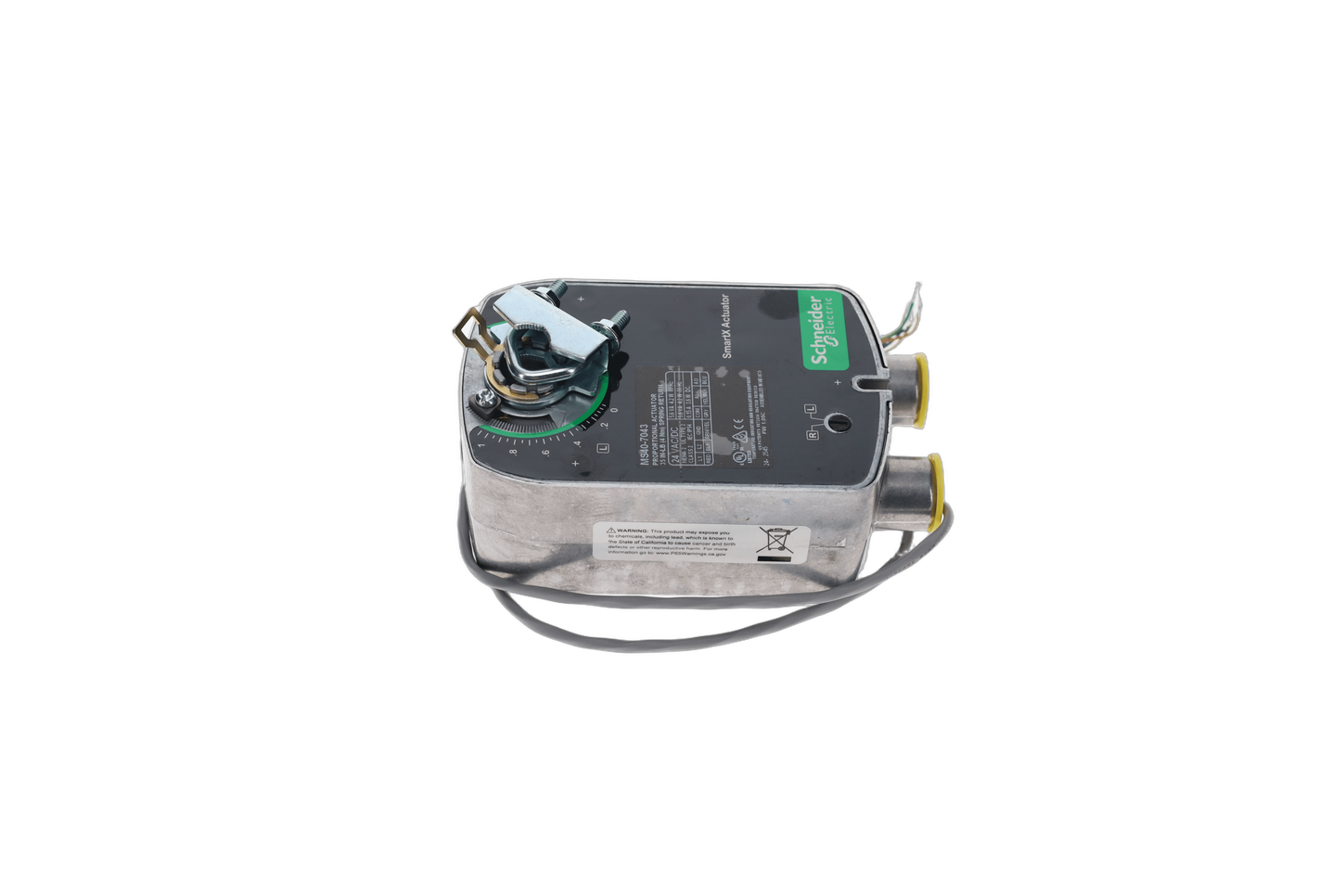

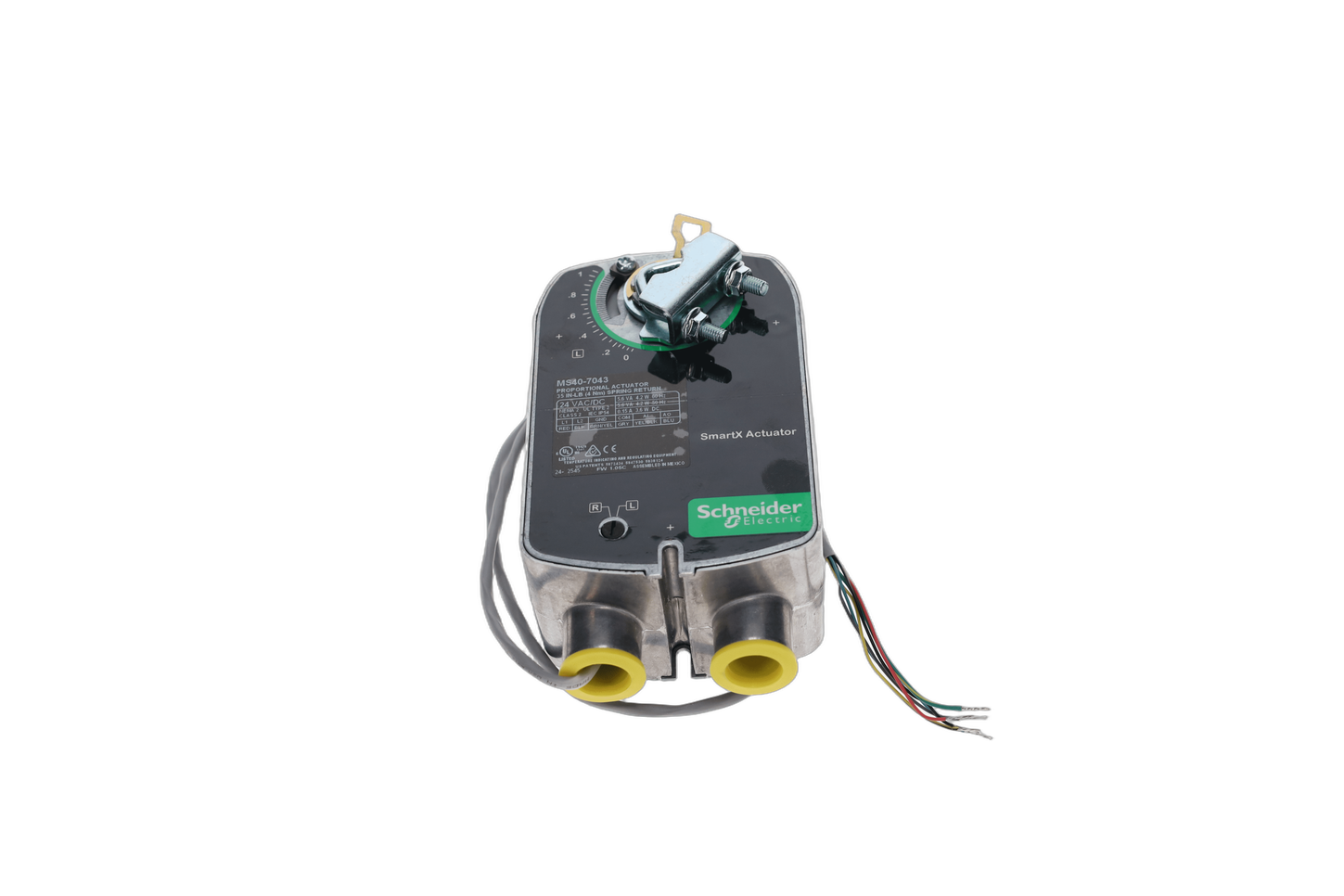

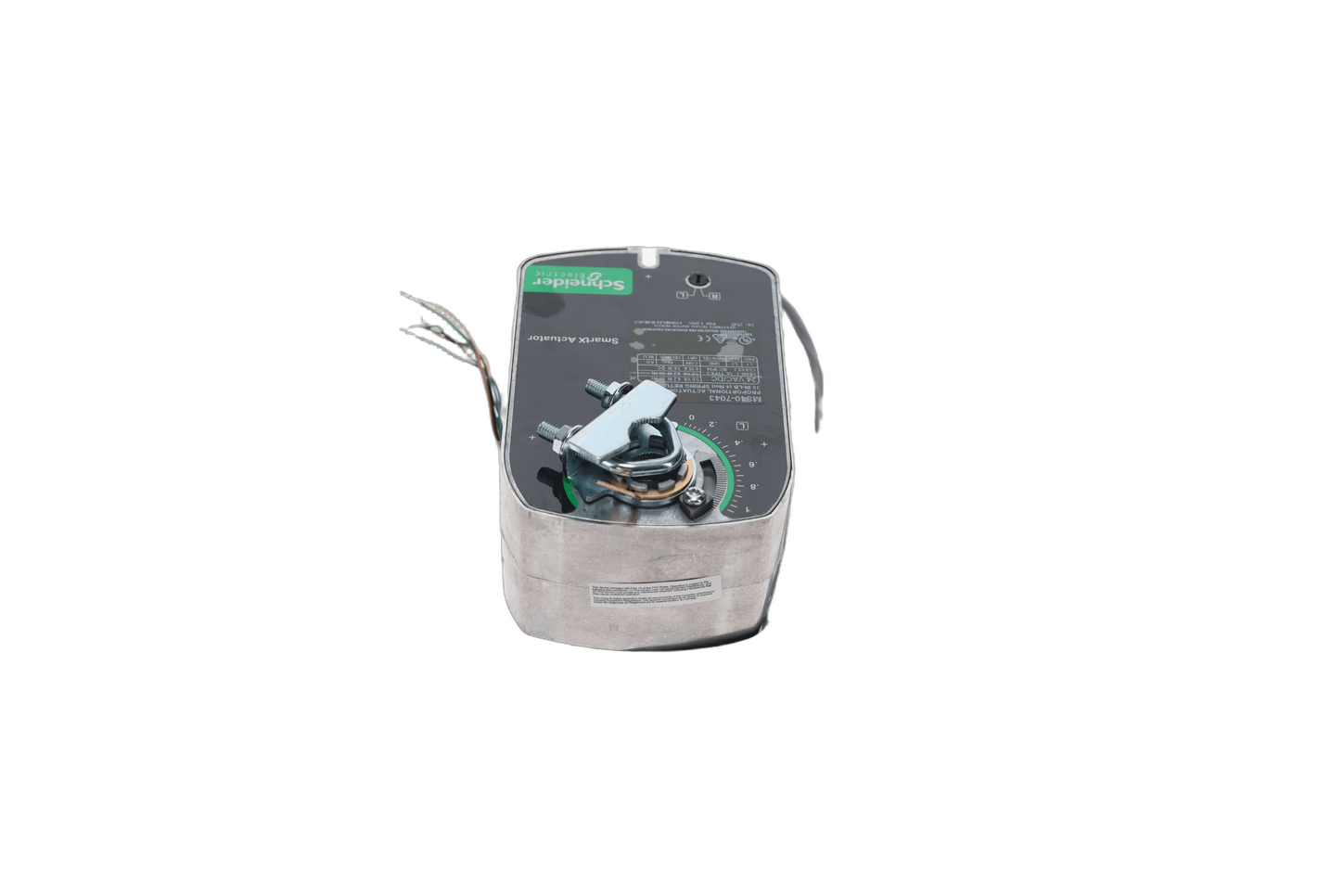

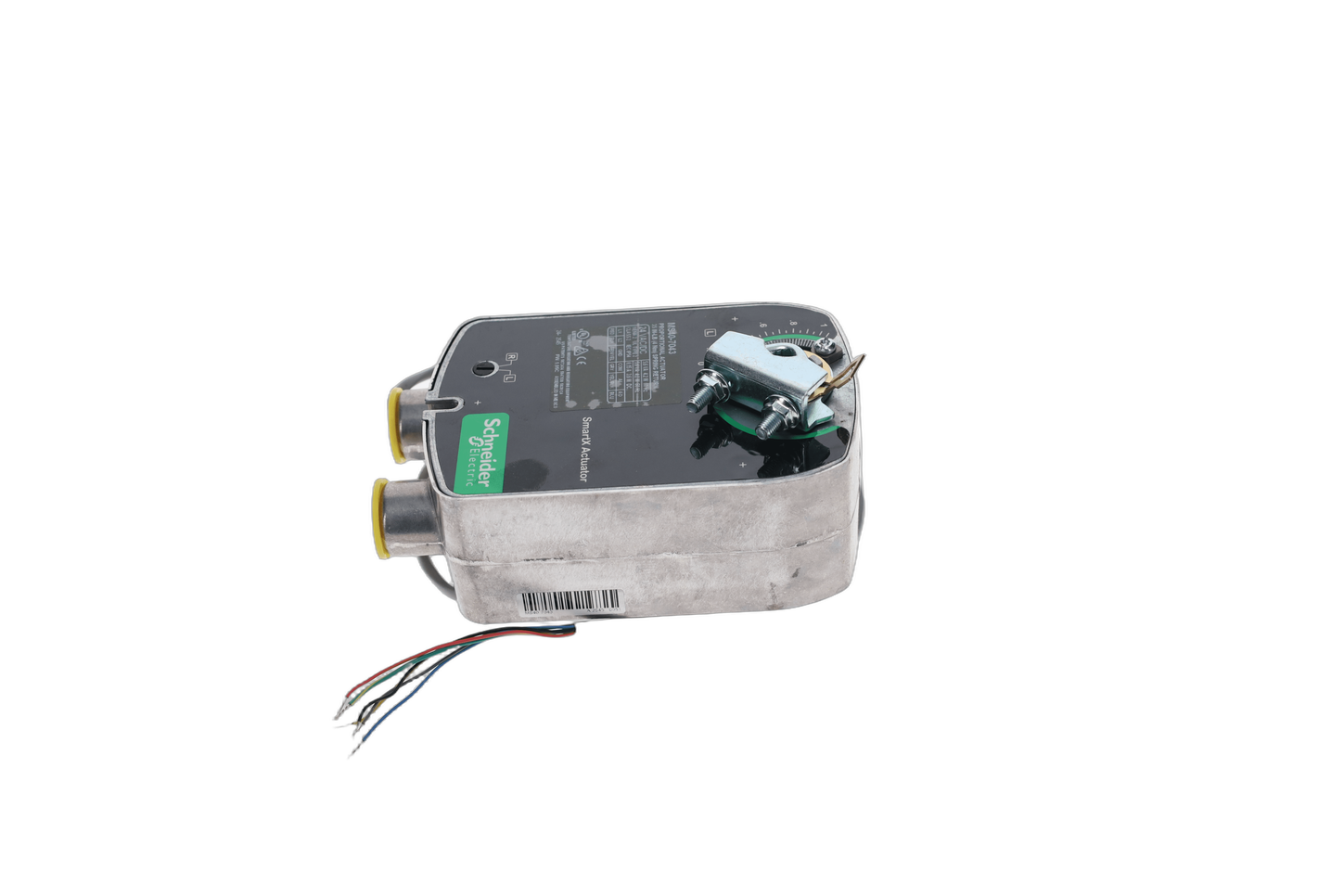

Schneider Electric MS40-7043
SKU: CS69981MPN: MS40-7043UPC/EAN: 711426390193
SmartX, Damper Actuator, proportional 2-10 Vdc, spring return, 24 Vac/Vdc, 3 ft plenum cable, 35 lb-in, NEMA 2
$307.80
Unit10+ Units Available at Factory - Ships Same/Next Business Day
Product Details
Actuator: (MS40-7043):
- Actuator Type: Electric
- Control Signal: Proportional
- Control Signal Range: 2 to 10 VDC, 4 to 20 mAdc
- Loss of Power Type: Spring Return
- Power Input Voltage: 22 to 30 VDC, 24 VAC/VDC
- Leads and Connections: 3 ft Plenum
- Torque: 35 in-lb
- Mechanical Movement: Rotary
- Protection Rating: NEMA 2
- Product Line: Schneider Electric
- Product Range: SmartX Actuator
- Product Series: Mx4x-7xxx
- Actuator Use: Dampers, Globe Valves
Product Alert: Linkage required for Globe Valve Assembly use.
Attributes
| Us Rated Supply Voltage | 22…30 V DC 24 V AC/DC |
| Actuator | rotary |
| Actuator Rotation | 95 ° |
| Ambient Air Temperature For Operation | -30-60 °C |
| Ambient Air Temperature For Storage | -40-71 °C |
| Analogue Input Range | 2…10 V DC 4…20 mA DC |
| Control Type | manual override with 5/32 allen wrench |
| Electrical Insulation Class | class II |
| Ip Degree Of Protection | IP11 |
| Material | die cast aluminium: housing |
| Motor Type | brushless DC motor |
| Nema Degree Of Protection | NEMA 2 |
| Power Consumption In Va | 5.6 VA AC |
| Product Destination | dampers globe valve |
| Product Or Component Type | actuator |
| Relative Humidity | 5-95 % non-condensing |
| Switch Function | No |
| Targeted Region | North America.# #Australia. |
| Taxoclass Id | PTC_D54013_XXX |
| Tightening Torque | 35 lb.in# #4 N.m |
Specifications
| SKU | CS69981 |
|---|---|
| MPN | MS40-7043 |
| UPC/EAN | 711426390193 |
