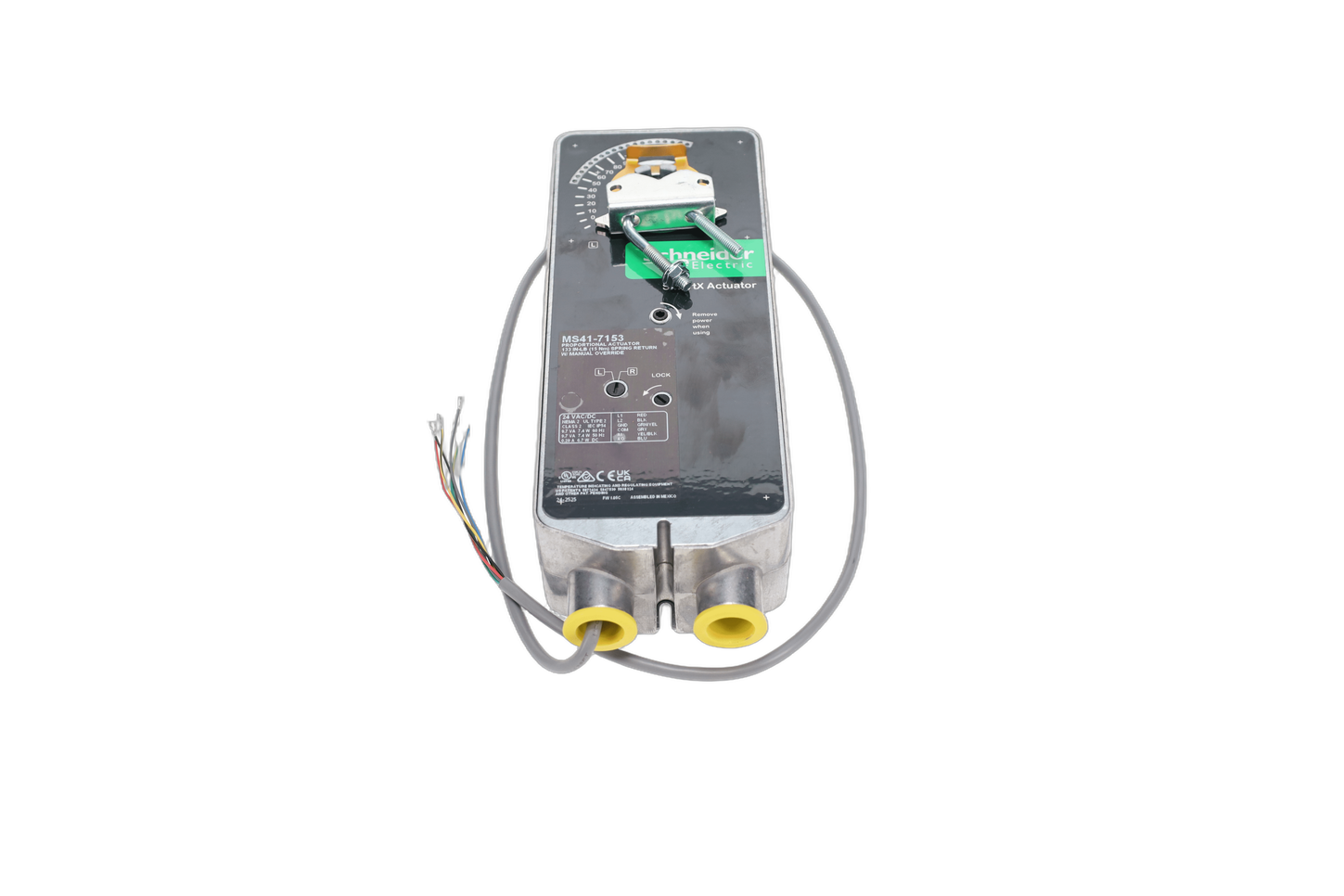

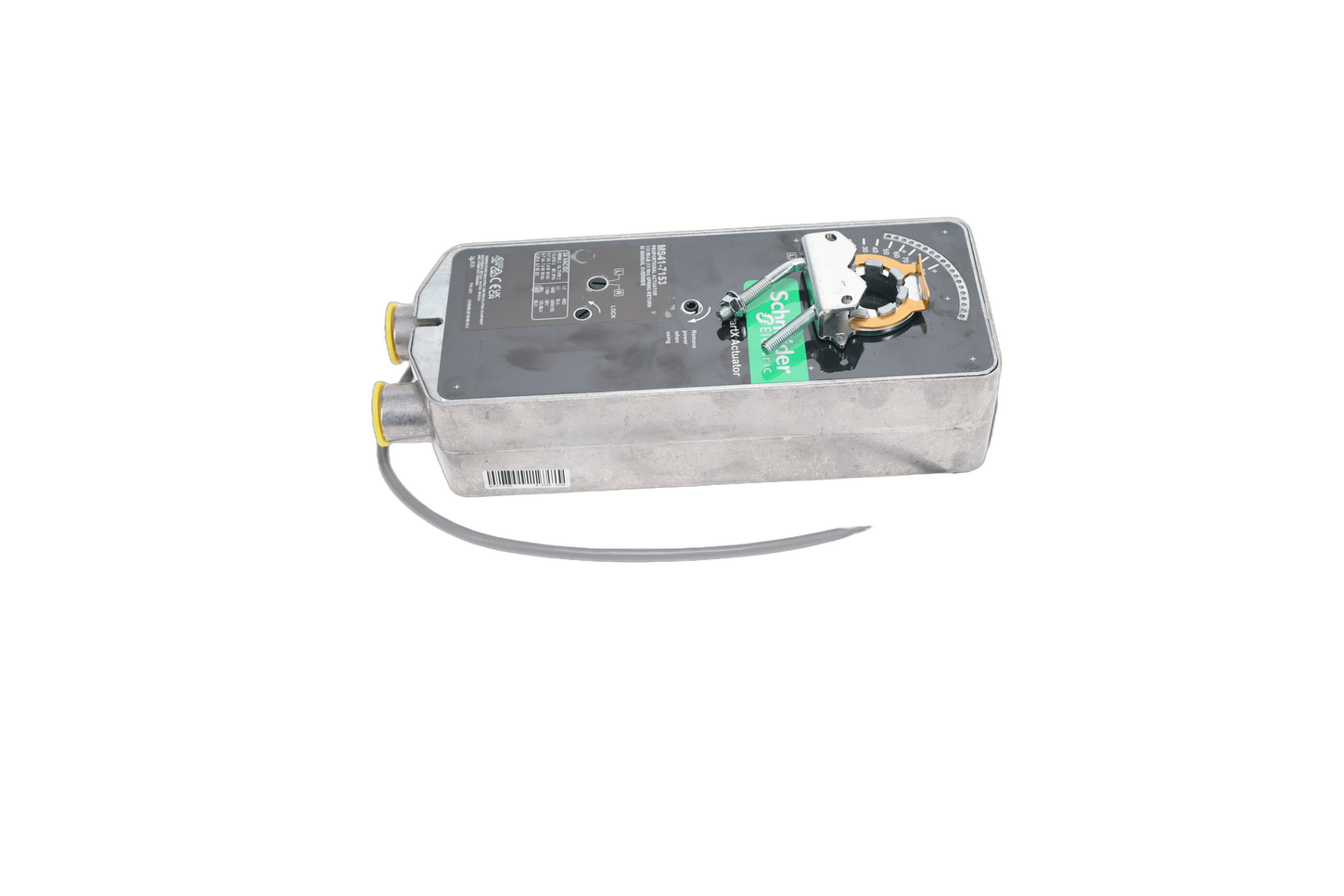

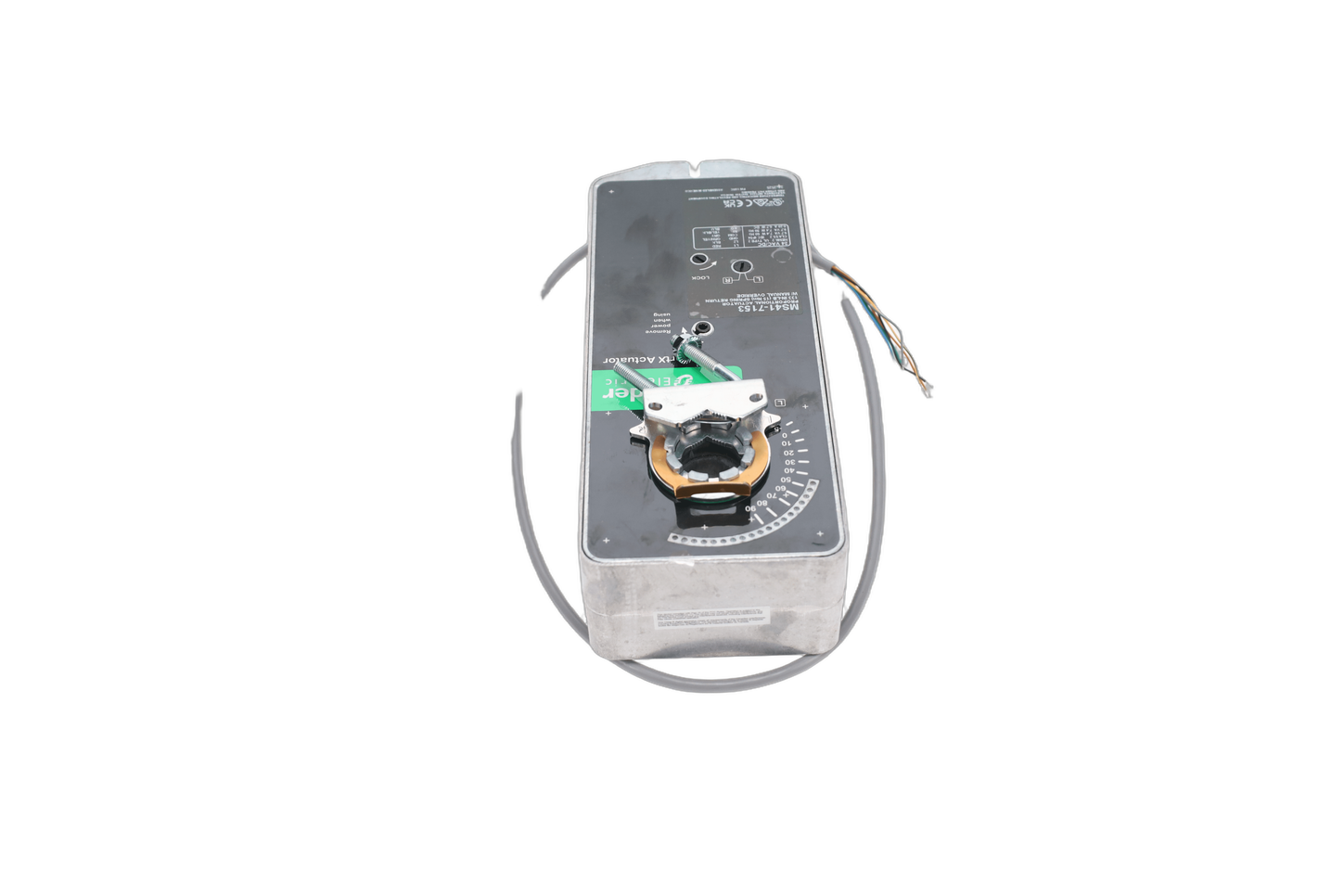

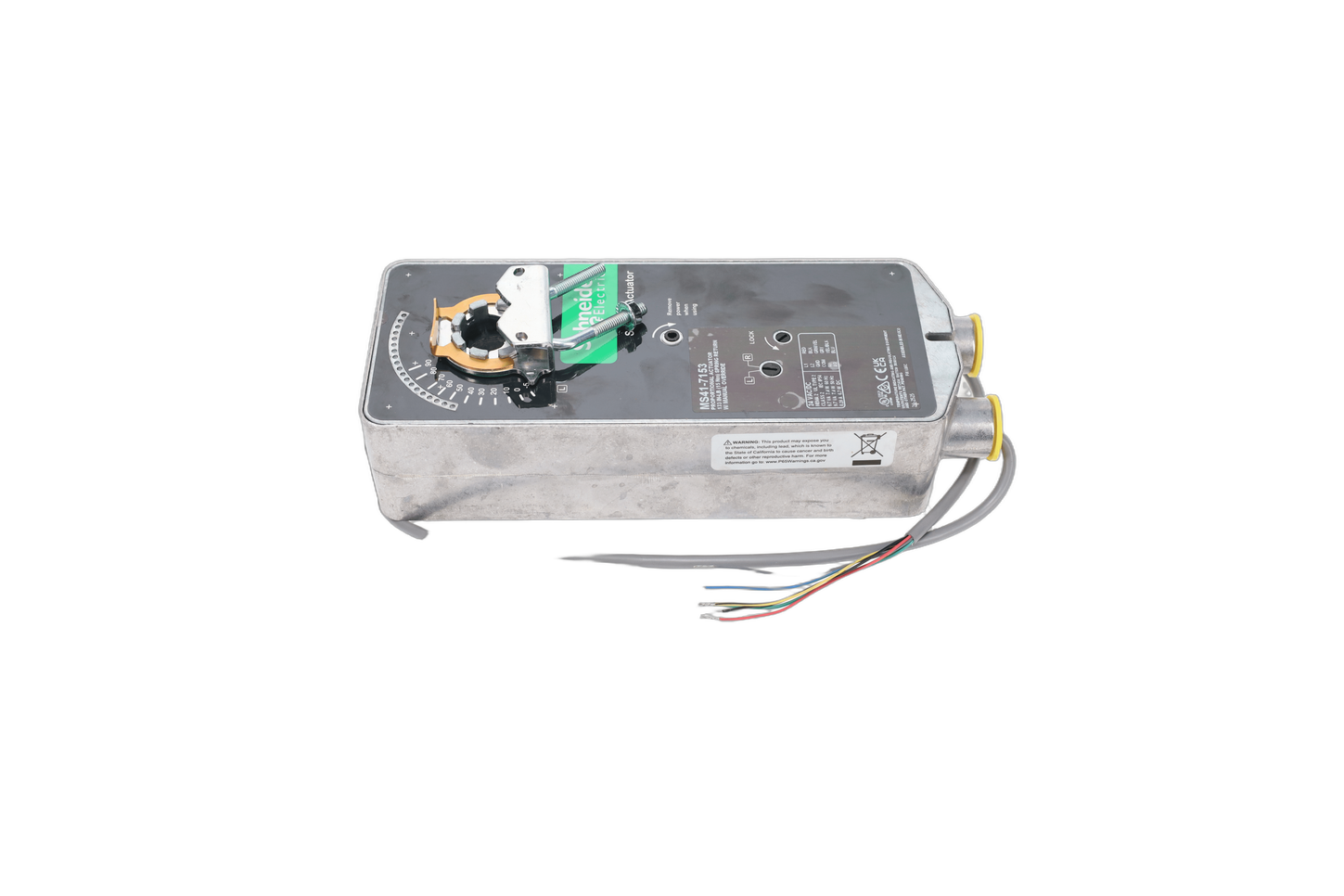

Schneider Electric MS41-7153

SKU: CS868733MPN: MS41-7153UPC/EAN: 711426483451

SmartX, Damper Actuator, proportional 2-10 Vdc, spring return, 24 Vac/Vdc, 3 ft appliance cable, 133 lb-in, NEMA 1 or 2

Schneider Electric MA41-7153, MF41-7153, MS41-7153, MS41-7153-502
$455.70
Unit
32 in stock
remove
add

Product Details

Actuator: (MS41-7153):

  • Actuator Type: Electric
  • Control Signal: Proportional
  • Control Signal Range: 2 to 10 VDC, 4 to 20 mAdc
  • Loss of Power Type: Spring Return
  • Power Input Voltage: 22 to 30 VDC, 24 VAC/VDC
  • Leads and Connections: 3 ft Appliance
  • Torque: 133 in-lb
  • Mechanical Movement: Rotary
  • Protection Rating: NEMA 1, NEMA 2
  • Product Line: Schneider Electric
  • Product Range: SmartX Actuator
  • Product Series: Mx4x-7xxx
  • Actuator Use: Butterfly Valves, Dampers, Globe Valves

Product Alert: Linkage required for Globe Valve Assembly use. NEMA 2 with conduit connector in the down position.

Attributes

Us Rated Supply Voltage 22…30 V DC 24 V AC/DC
Actuator rotary
Actuator Rotation 95 °
Ambient Air Temperature For Operation -30-60 °C
Ambient Air Temperature For Storage -40-71 °C
Analogue Input Range 2…10 V DC 4…20 mA DC
Control Type automatic reset
Current Consumption 280 mA
Electrical Insulation Class class II
Hold In Power Consumption In W 2.9-2.9 W
Ip Degree Of Protection IP10 IP11
Material die cast aluminium: housing
Motor Type brushless DC motor
Nema Degree Of Protection NEMA 1# #NEMA 2
Power Consumption In Va 9.8 VA AC
Power Consumption In W 7.4 W
Product Destination butterfly valves dampers globe valve
Product Or Component Type actuator
Relative Humidity 5-95 % non-condensing
Switch Function No
Targeted Region North America.# #Australia.
Taxoclass Id PTC_D54013_XXX
Tightening Torque 133 lb.in# #15 N.m

Specifications

SKUCS868733
MPNMS41-7153
UPC/EAN711426483451
