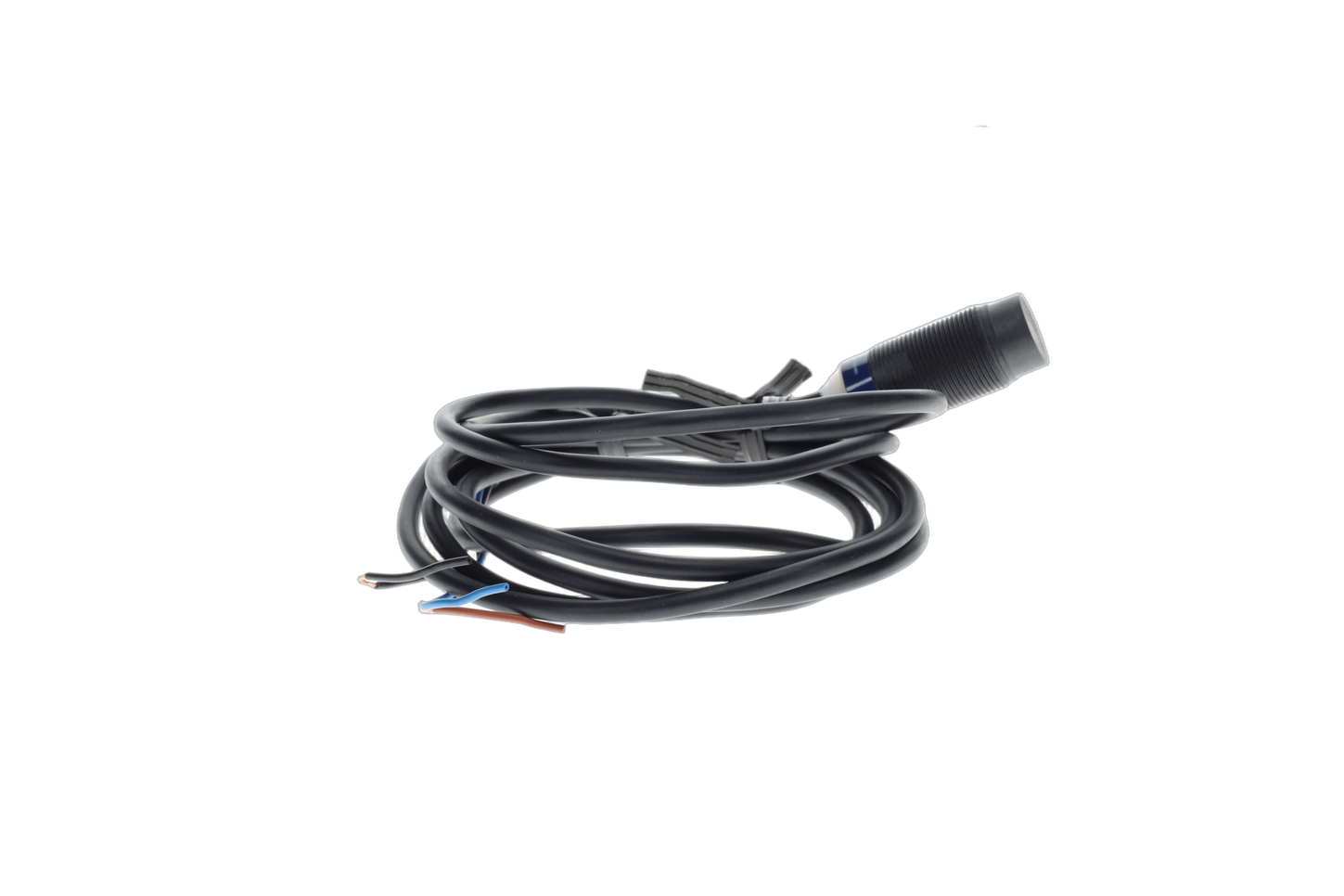

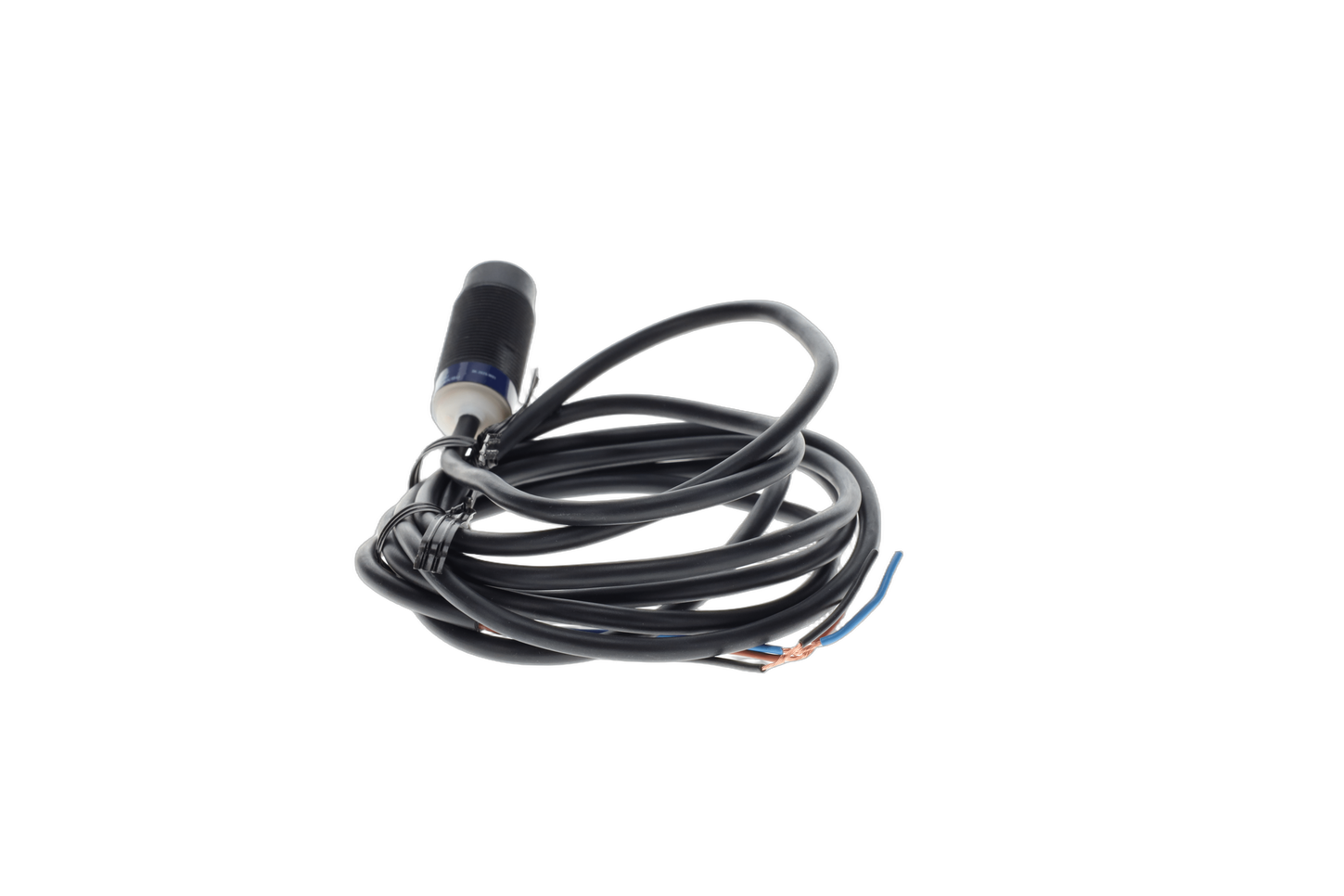

Square D XS4P18AB120

Name: Square D XS4P18AB120
Brand: Square D
SKU: CS1002667
Availability: OutOfStock

SKU: CS1002667MPN: XS4P18AB120

Inductive proximity sensors XS, inductive sensor XS4 M18, L41mm, PBT, Sn8mm, 12...24 VDC, cable 2 m

Product Details

Inductive sensor XS4 M18, L41mm, PBT, Sn8mm, 12..24VDC, cable 2m

Ambient Air Temperature For Operation	-25-70 °C
Ambient Air Temperature For Operation 1	-25-70 °C
Analogue Output Range	4…20 mA
Body Type	fixed
Cable Composition	3 x 0.34 mm²
Detection Face	frontal
Detector Flush Mounting Acceptance	non flush mountable
Electrical Circuit Type	analog output
Enclosure Material	PBT
Front Material	PPS
Linearity Error	± 2 mA
Marking	CE
Marking 1	CE
Material	plastic
Maximum Output Current Drift	0.10000000149012
Operating Zone	0.8-8 mm
Output Circuit Type	DC
Product Certifications	CSA# #UL
Range Of Product	Telemecanique Inductive proximity sensors XS
Repeat Accuracy	<= 3% of Sr
Repeat Accuracy 1	<= 3% of Sr
Sensor Design	cylindrical M18
Sensor Name	XS4
Sensor Type	inductive proximity sensor
Series Name	Application
Size	41 mm
Thread Type	M18 x 1
Type Of Output Signal	analogue
Wire Insulation Material	PvR
Wiring Technique	2-wire
