Eaton E59-M12A105D01-D1

Name: Eaton E59-M12A105D01-D1
Brand: Eaton
SKU: CS922654
Price: 225.54 USD
Availability: OutOfStock

SKU: CS922654MPN: E59-M12A105D01-D1Alternate Part #s: E59-M12A105D01-D1EAT-E59-M12A105D01-D1UPC/EAN: 782116183135

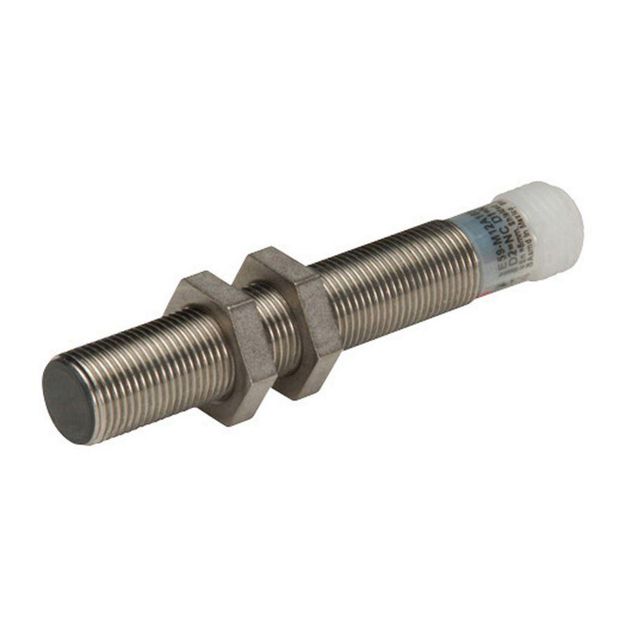

Eaton E59 iProx programmable inductive proximity sensor

Eaton E59-M12A105A01-A1, E59-M12A105C02-D1, E59-M12C110A01-A1, E59-M12C110C02-A1, E59-M12C110C02-D1, E59-M18A108C02-D1, E59-M18A109A01-A1, E59-M18A109C02-A1, E59-M18C116C02-D1, E59-M18C116D01-D1, E59-M18C118A01-A1, E59-M18C118C02-A1, E59-M30A115A01-A1, E59-M30A115C02-A1, E59-M30A115C02-D1

Eaton E59-M12A105A01-A1, E59-M12A105C02-D1, E59-M12C110A01-A1, E59-M12C110C02-A1, E59-M12C110C02-D1, E59-M12C110D01-D1

$225.54

Unit

Available on backorder

Quantity

remove

add

Product Details

Eaton iProx Sensor, E59, 4 mm range, Straight, 12 mm, Shielded, 360° viewable LED, M12, 3-wire, 300 mA at 6-48 Vdc, 4 pin, \<1% sensing range, NPN/PNP auto configure, NO, 6-48 Vdc

Attributes

Accuracy	< 1% sensing range
Actuator Function	Shielded
Connection	M12
Contact Configuration	NPN/PNP auto configure, NO
Contact Rating	300 mA at 6-48 Vdc
Enclosure Material	303 stainless steel
Environmental Rating	NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12, NEMA 13, IP67, IP69K
Input Voltage	6-48 Vdc
Led Indicator	360 ° viewable LED
Maximum Dc Current	300 mA
Number Of Pins	4.0000
Number Of Wires	3
Operating Temperature Max	158 FAH
Operating Temperature Max Uom	FAH
Operating Temperature Min	-40 FAH
Operating Temperature Min Uom	FAH
Protection	Auto reset
Series	E59
