Eaton E59-M12A105C02-D1
SKU: CS4873599MPN: E59-M12A105C02-D1UPC/EAN: 782116183128

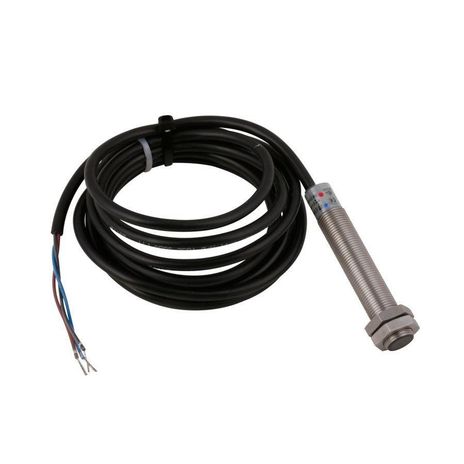

Eaton E59 iProx programmable inductive proximity sensor
Contact us for pricing and availability
Product Details
Eaton iProx Sensor, E59, Straight, 12 mm, Shielded, 360° viewable LED, 3-wire, 6.6 ft, 300 mA at 6-48 Vdc, \<1% sensing range, PVC, NPN/PNP auto configure, NO, 6-48 Vdc
Attributes
| Accuracy | < 1% sensing range |
| Actuator Function | Shielded |
| Cable Type | Polyvinyl Chloride (PVC) |
| Contact Configuration | NPN/PNP auto configure, NO |
| Contact Rating | 300 mA at 6-48 Vdc |
| Enclosure Material | 303 stainless steel |
| Environmental Rating | NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12, NEMA 13, IP67, IP69K |
| Input Voltage | 6-48 Vdc |
| Led Indicator | 360 ° viewable LED |
| Maximum Dc Current | 300 mA |
| Number Of Wires | 3 |
| Operating Temperature Max | 158 FAH |
| Operating Temperature Max Uom | FAH |
| Operating Temperature Min | -40 FAH |
| Operating Temperature Min Uom | FAH |
| Protection | Auto reset |
| Series | E59 |
| Size | 12 mm |
| Temperature Rating | -40 to 158 °F |
| Type | E59 |
Specifications
| SKU | CS4873599 |
|---|---|
| MPN | E59-M12A105C02-D1 |
| UPC/EAN | 782116183128 |
