Eaton E59-M30A115D01-D1

Name: Eaton E59-M30A115D01-D1
Brand: Eaton
SKU: CS205735
Price: 244.35 USD
Availability: OutOfStock

SKU: CS205735MPN: E59-M30A115D01-D1UPC/EAN: 786685879482

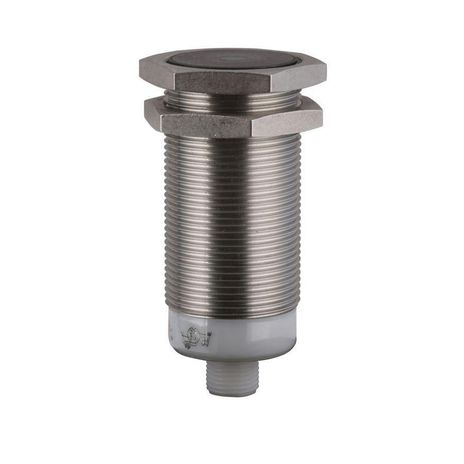

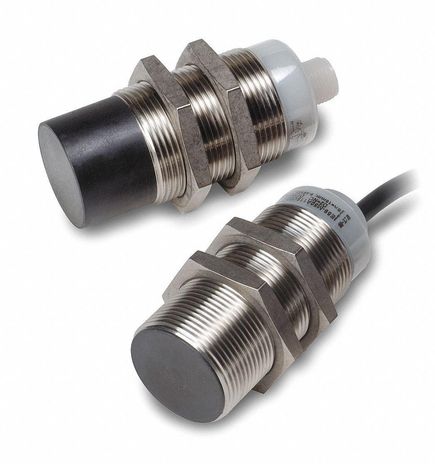

Eaton E59 iProx programmable inductive proximity sensor

Eaton E59-M30A115D01-D1, E59-M30C129A01-A1

Eaton E59-M12A105A01-A1, E59-M12A105C02-D1, E59-M12C110A01-A1, E59-M12C110C02-A1, E59-M12C110C02-D1, E59-M18A108C02-D1, E59-M18A109A01-A1, E59-M18A109C02-A1, E59-M18C116C02-D1, E59-M18C116D01-D1, E59-M18C118A01-A1, E59-M18C118C02-A1, E59-M30A115A01-A1, E59-M30A115C02-A1, E59-M30A115C02-D1

Product Details

iProx Sensor, E59, 15 mm range, Straight, 30 mm, Shielded, 360° viewable LED, M12, 300 mA at 6-48 Vdc, 4 pin, \<1% sensing range, NPN/PNP auto configure, NO, 6-48 Vdc

Attributes

Accuracy	< 1% sensing range
Actuator Function	Shielded
Connection	M12
Contact Configuration	NPN/PNP auto configure, NO
Contact Rating	300 mA at 6-48 Vdc
Enclosure Material	303 stainless steel
Environmental Rating	NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12, NEMA 13, IP67, IP69K
Input Voltage	6-48 Vdc
Led Indicator	360 ° viewable LED
Maximum Dc Current	300 mA
Number Of Pins	4.0000
Operating Temperature Max	158 FAH
Operating Temperature Max Uom	FAH
Operating Temperature Min	-40 FAH
Operating Temperature Min Uom	FAH
Protection	Auto reset
Series	E59
