Eaton E59-M12C110C02-D1

Name: Eaton E59-M12C110C02-D1
Brand: Eaton
SKU: CS4873621
Price: 202.43 USD
Availability: OutOfStock

SKU: CS4873621MPN: E59-M12C110C02-D1Alternate Part #: 41-3190-50UPC/EAN: 782116183258

Eaton E59 iProx programmable inductive proximity sensor

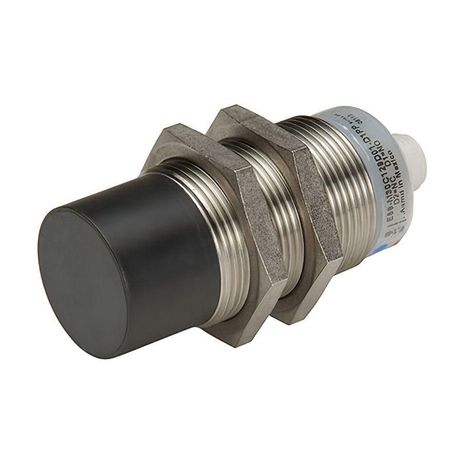

Eaton E59-M12A105A01-A1, E59-M12A105C02-D1, E59-M12C110A01-A1, E59-M12C110C02-A1, E59-M12C110C02-D1, E59-M18A108C02-D1, E59-M18A109A01-A1, E59-M18A109C02-A1, E59-M18C116C02-D1, E59-M18C116D01-D1, E59-M18C118A01-A1, E59-M18C118C02-A1, E59-M30A115A01-A1, E59-M30A115C02-A1, E59-M30A115C02-D1

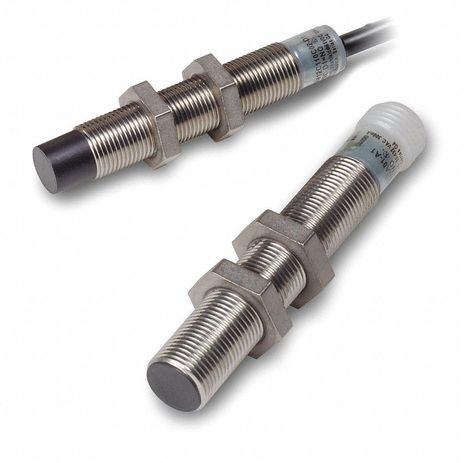

Eaton E59-M12A105A01-A1, E59-M12A105C02-D1, E59-M12C110A01-A1, E59-M12C110C02-A1, E59-M12C110C02-D1, E59-M12C110D01-D1

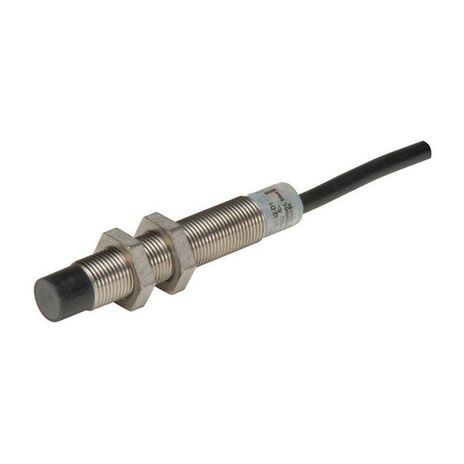

Eaton E59-M12C110C02-A1, E59-M12C110C02-D1

Product Details

Eaton iProx Sensor, E59, Straight, 12 mm, Unshielded, 360° viewable LED, 3-wire, 6.6 ft, 300 mA at 6-48 Vdc, \<3% sensing range, PVC, NPN/PNP auto configure, NO, 6-48 Vdc

Attributes

Accuracy	< 3% sensing range
Actuator Function	Unshielded
Cable Type	Polyvinyl Chloride (PVC)
Contact Configuration	NPN/PNP auto configure, NO
Contact Rating	300 mA at 6-48 Vdc
Enclosure Material	303 stainless steel
Environmental Rating	NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12, NEMA 13, IP67, IP69K
Input Voltage	6-48 Vdc
Led Indicator	360 ° viewable LED
Maximum Dc Current	300 mA
Number Of Wires	3
Operating Temperature Max	158 FAH
Operating Temperature Max Uom	FAH
Operating Temperature Min	-40 FAH
Operating Temperature Min Uom	FAH
Protection	Auto reset
Series	E59
Size	12 mm
Temperature Rating	-40 to 158 °F
Type	E59
