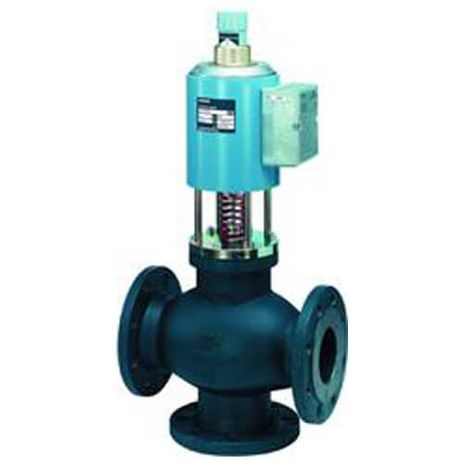

Siemens M3P80FY

Name: Siemens M3P80FY
Brand: Siemens Building Technologies
SKU: CS918052
Price: 4037.22 USD
Availability: OutOfStock

SKU: CS918052MPN: M3P80FYUPC/EAN: 7612914010254

Magnetic, 3” Valve, floating, 93 Cv, 0 to 10V control, w/o Flange kits

$4,037.22

Unit

Available on backorder

Quantity

remove

add

Product Details

This Magnetic M3P Control Valve with ZM Signal Module is designed for 0 to 10V control of chilled water and low-pressure hot water, especially in HVAC systems. This valve features pilot position and magnetic actuation that is used to enhance response time and provide stability. The 3” valve has a 93 Cv and can be configured floating or straight-through and comes without flange kits. This valve has 1000:1 resolution and a positioning time is ≤ 1 second, manual override, and built-in position control and feedback.

Attributes

Ambient Temperature Operation	2…50 °C
Control Signal	0…10 Vdc;4…20 mA
End Connection	Flange
Fail Safe	Yes
Flow Characteristic	Linear
Flow Coefficient Cv	93.0000
Leakage Rate	0.05 % of kvs
Material Inside Set	CrNi steel/brass
Material Valve Body	EN-GJL-HB215
Max Differential Pressure Liquid	44 psi
Max Inlet Pressure Absolute Liquid	44 psi
Medium	Water
Medium Temperature	2…120 °C; 35…248 ºF
Medium Temperature F Max	248 ºF
Medium Temperature F Min	35 ºF
Operating Range	DC 0…10 V
Operating Voltage	24 VAC
Permissible Operating Pressure	1000 kPa
Port Configuration	3-Way
Position Feedback	DC 0…10 V
Positioning Time	Close:2 s
Power Consumption	80 VA
Spring Return Function	1-3 closed
Supply Voltage	24 VAC
Trim Material	Stainless Steel
Valve Body Style	Stroke-Integrated-Magnetic
Valve Size	3 in
Valve Type	Three-way
