Siemens MVF461H15-0.6

Name: Siemens MVF461H15-0.6
Brand: Siemens Building Technologies
SKU: CS983076
Price: 2324.87 USD
Availability: OutOfStock

SKU: CS983076MPN: MVF461H15-0.6UPC/EAN: 7612914010445

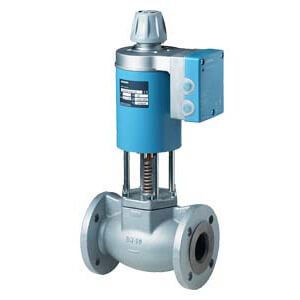

Magnetic, ½” Valve 2-way, 0.7 Cv, 0 to 10V control, w/o Flange Kits

Siemens Building Technologies MVF461H15-0.6, MVF461H15-1.5, MVF461H15-3, MVF461H25-8

$2,324.87

Unit

Available on backorder

Quantity

remove

add

Product Details

This MVF461H valve with magnetic actuator is defined for 0 to 10V control of high-temperature hot water or steam. The valve features fast positioning time less than 2 seconds, selectable valve characteristic, and 1000:1 resolution and rangeability. Electronic module for positioning control and position feedback signal. Spring returns closed when de-energized. Manual control. This ½” valve has a 0.7 Cv and comes without flange kits.

Attributes

Ambient Temperature Operation	-5…45 °C
Control Signal	0…10Vdc / 2…10Vdc;4…20 mA
End Connection	Flange
Fail Safe	Yes
Flow Characteristic	Linear or Equal Percentage
Flow Coefficient Cv	0.69999998807907
Leakage Rate	0.05 % of kvs
Material Inside Set	CrNi steel
Material Valve Body	Nodular cast iron EN-GJS-400-18-LT
Max Differential Pressure Liquid	145 psi
Max Differential Pressure Steam	130 psi
Max Inlet Pressure Absolute Liquid	145 psi
Max Inlet Pressure Absolute Steam	130 psi
Medium	Steam;Water
Medium Temperature	1…180 °C; 34…356 ºF
Medium Temperature F Max	356 ºF
Medium Temperature F Min	34 ºF
Operating Range	DC 0…10 V;0…20 mA;DC 2…10 V;4…20 mA
Operating Voltage	24 VAC;24 VDC
Permissible Operating Pressure	Liquid, max: 1300 kPa; Steam, max: 900 kPa
Port Configuration	2 & 3 Way
Position Feedback	DC 0…10 V;DC 2…10 V;DC 0…20 mA;DC 4…20 mA
Positioning Time	2 s
Power Consumption	33 VA
Spring Return Function	A- AB closed
Supply Voltage	24 VAC/DC
Trim Material	Stainless Steel
Valve Body Style	Stroke-Integrated-Magnetic
Valve Size	0.5 in
