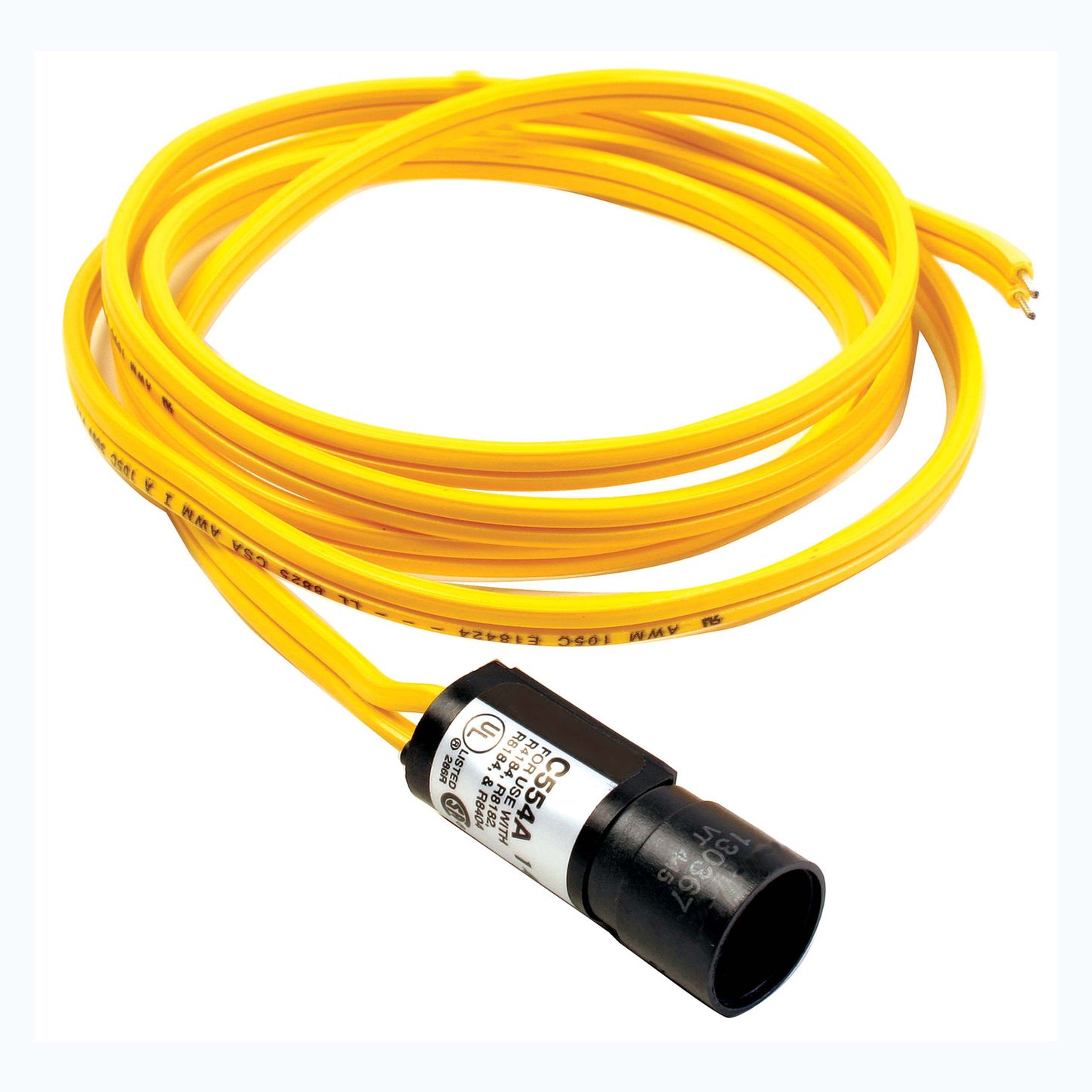

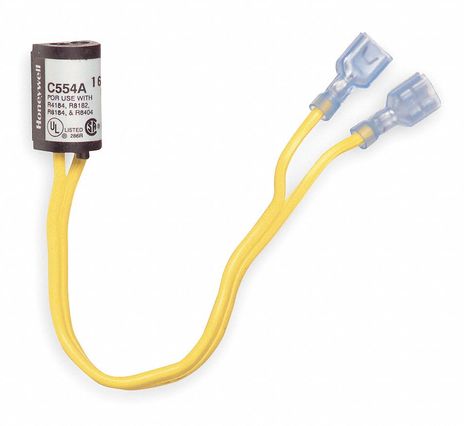

Resideo C554A1463

Cadmium-Sulfide Flame Detector with 60 in Leads, Type “R” Bracket and Higher Sensitivity Cad Cell

Product Overview

• Photoconductive flame sensing device for sequencing oil burner systems.
• On flame failure, the light sensitive cadmium sulfide cell, in conjunction with flame sensing circuitry, causes the Protectorelay® control to shutdown the main oil burner.
• Glass-to-metal hermetic seal in plug-in cell prevents deterioration by humidity, soot or oil fumes.
• Replaceable CAD Cell

Features

• 120320 Replacement Cad Cell. 7.5 mA minimum sensitivity at 2 ft. candles; 130367 Replacement Cad Cell. 12.0 mA minimum sensitivity at 2 ft. candles.
• Mounting Bracket: Type R
• Electrical Connections: leadwires: NEC Class 1; Includes 2 flag ¼ in. quick connects.
• Temperature Range: 140 F
• Includes:A, B, E, J and P mounting brackets and fuel line adaptor
