All ProductsResideo

Resideo C554A1794

SKU: CS777381MPN: C554A1794UPC/EAN: 85267037877

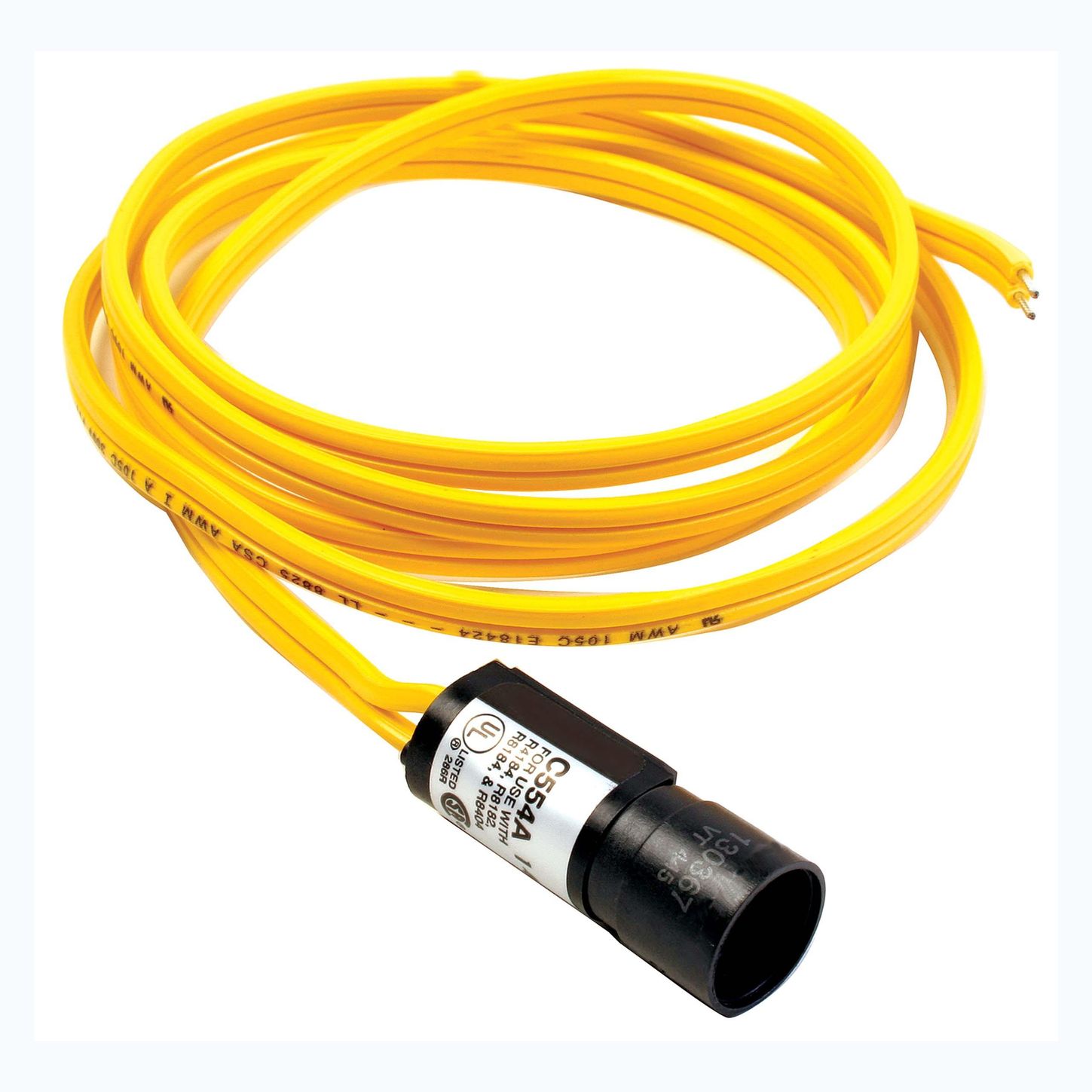

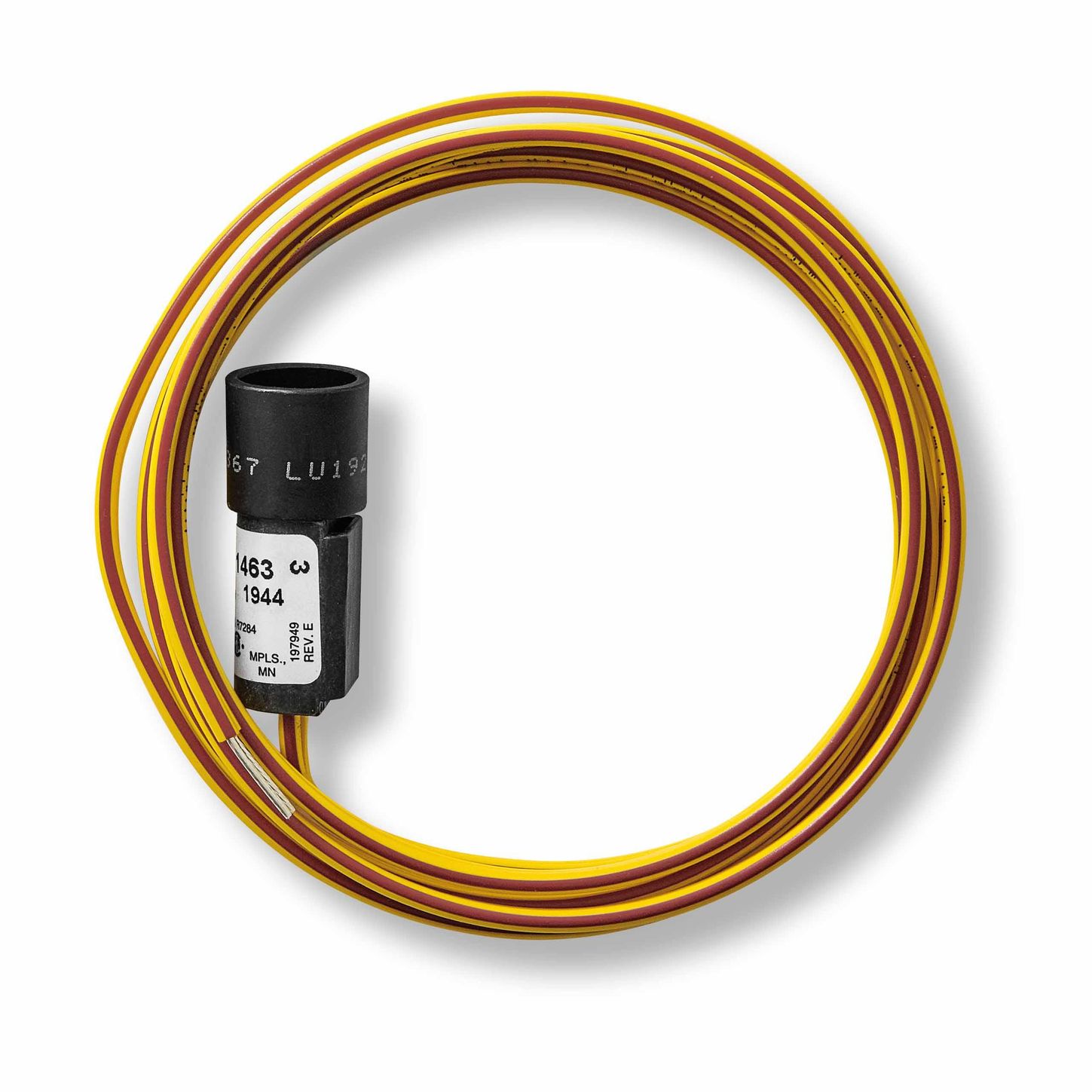

Cadmium-Sulfide Flame Detector with 60 in. leads, Type “R” mounting bracket and 130367 Cad Cell

Resideo C554A1794
Resideo C554A1794
Resideo C554A1794
Resideo C554A1794
$28.63
Unit
10+ Units Available at Factory - Ships Same/Next Business Day
remove
add

Product Details

Product Overview

  • Cadmium-Sulfide Flame Detector with 60 in. leads, Type “R” mounting bracket and 130367 Cad Cell.
  • Photoconductive flame sensing device for sequencing oil burner systems.

Features

  • Cad Cells: 130367 High Sensitivity CAD Cell 12 MA minimum sensitivity at 2 ft. candles
  • Mounting Bracket: Type R and E
  • Electrical Connections:leadwires: NEC Class 1
  • Temperature Range: 140 F
  • Includes:A, B, E, J and P mounting brackets and fuel line adaptor

Specifications

SKUCS777381
MPNC554A1794
UPC/EAN85267037877
