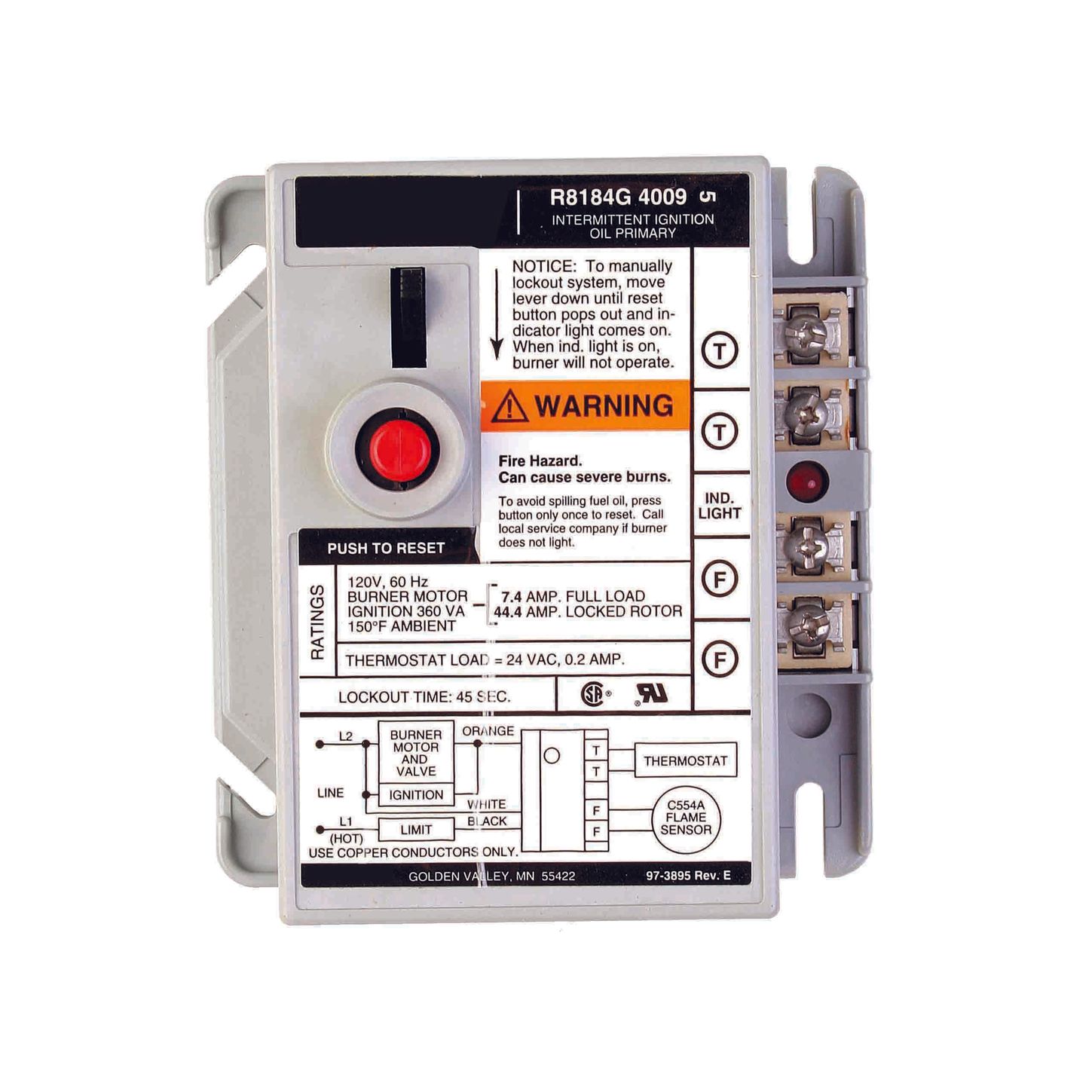

Resideo R8184G4066

Protectorelay® Oil Burner Control with 15 seconds lock out timing

Note: C554A Cadmium Sulfide Flame Detector and 24 Vac thermostat required.

Provides automatic, non-recycling control of an intermittent ignition oil burner system.

Features

• Description: Protectorelay Oil Burner Control with 15 seconds lock out timing
• Ignition Type: Intermittent
• Timing, Safety Switch: 15 sec.
• Mounting Bracket: For mounting on a standard 4 in. X 4 in. junction box or direct mounting on burner housing.
• Electrical Ratings (Full Load): 7.4 A @ 120 Vac; 3.7 a @ 240 Vac
• Electrical Ratings (Locked Rotor): 44.4 A @ 120 Vac; 22.2 A @ 240 Vac
• Alarm Load Ratings (Pilot Duty): 75 VA @ 120/240 Vac, 50-60 Hz; 25 VA @ 24V, 50-60 Hz
• Alarm Load Ratings (resistive): 1.5 A @ 120/240V, 50-60Hz; 3 A @ 24 V, 50-60 Hz
• Dimensions: 4 ⅜ in. high x 4 ⅛ in. wide x 2 ½ in. deep
• Temperature Range: -40 F to +130 F
• Comments: With LED for lockout indication, and manual trip lever on safety switch to assure burner shutdown during servicing.

Specifications

• Controls oil burner, oil valve (if desired) and the ignition transformer in response to a call for heat.
• Solid state flame sensing circuit.
• LED on terminal strip indicates system lockout.
• Remote lockout indication available on some models.
• Enclosed safety switch with external reset button.
• Manual trip lever opens safety switch for system maintenance.
• Mounts on standard 4 x 4 in. junction box; select models may be mounted directly on burner housing.
