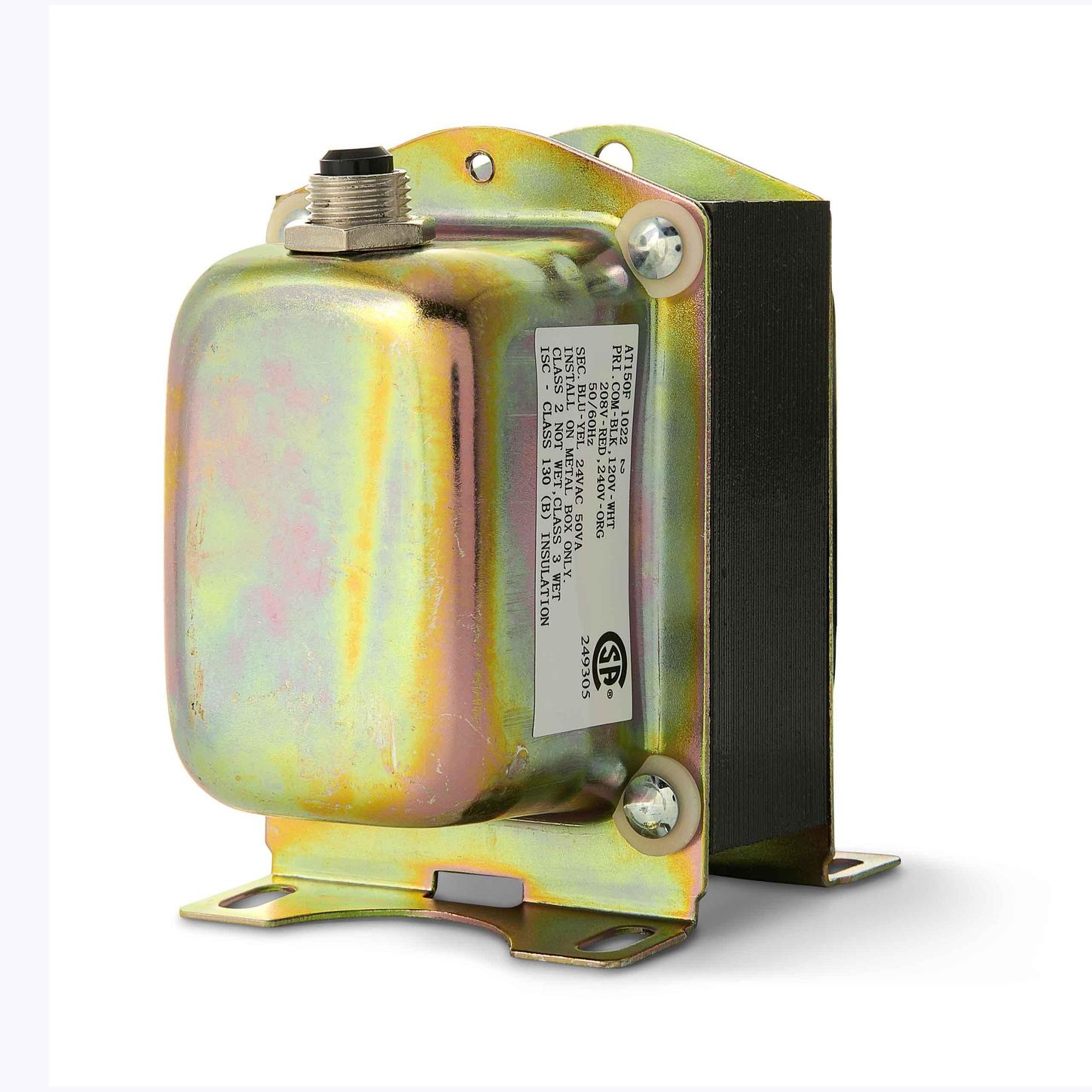

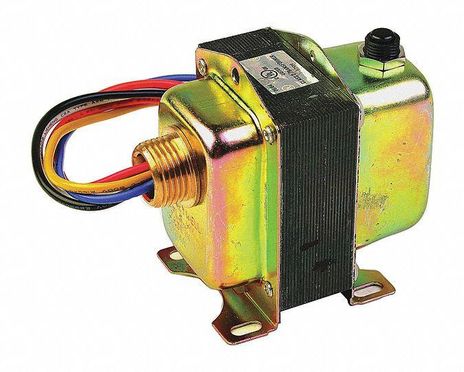

Resideo AT150F1022

40 VA Multisystem Mount Transformer

Provide power to 24 Vac circuits in heating/cooling control systems. Intended for use in systems with predictable, uniform loads. Can be used in any application that does not exceed the listed ratings.

Specifications

• Description: Plate or panel mounted 120/208/240 Vac Transformer with 9 in. lead wires and metal end bells
• Electrical Ratings: 120 Vac, 208 Vac, 240 Vac
• Electrical Ratings -Secondary Voltage: 27.5 V.O.C.
• Frequency: 60 Hz
• Mounting: Includes ½ 14 NPSM conduit connector and lock nut for mounting on plate or panel (not included) with ⅞ in. knockout, and feet for surface mount.
• Electrical Connections (Primary)(in): 9 in. leadwires
• Electrical Connections (Secondary)(in.): 9 in. leadwires
• Electrical Ratings -Output: 24 Vac at 50 VA
• Dimensions: 3-3/16 in. high x 2-3/16 in. wide x 3-⅝ in. deep
• Temperature Ratings: -20 F to +105 F
• Includes: Button for manually resetting the circuit breaker and metal end bells.

Features

• Rated at 50 VA.
• Color-coded leadwires for primary connections and screw terminals for secondary connections, fixed ¼ inch (6 mm) male quick-connects or color-coded leadwires for both primary and secondary, are standard.
• Meet NEC Class 2 requirements.
• Meet Underwriters Laboratories Inc. Standard UL 1585 and are identified. Class 2 not wet, Class 3 wet.
