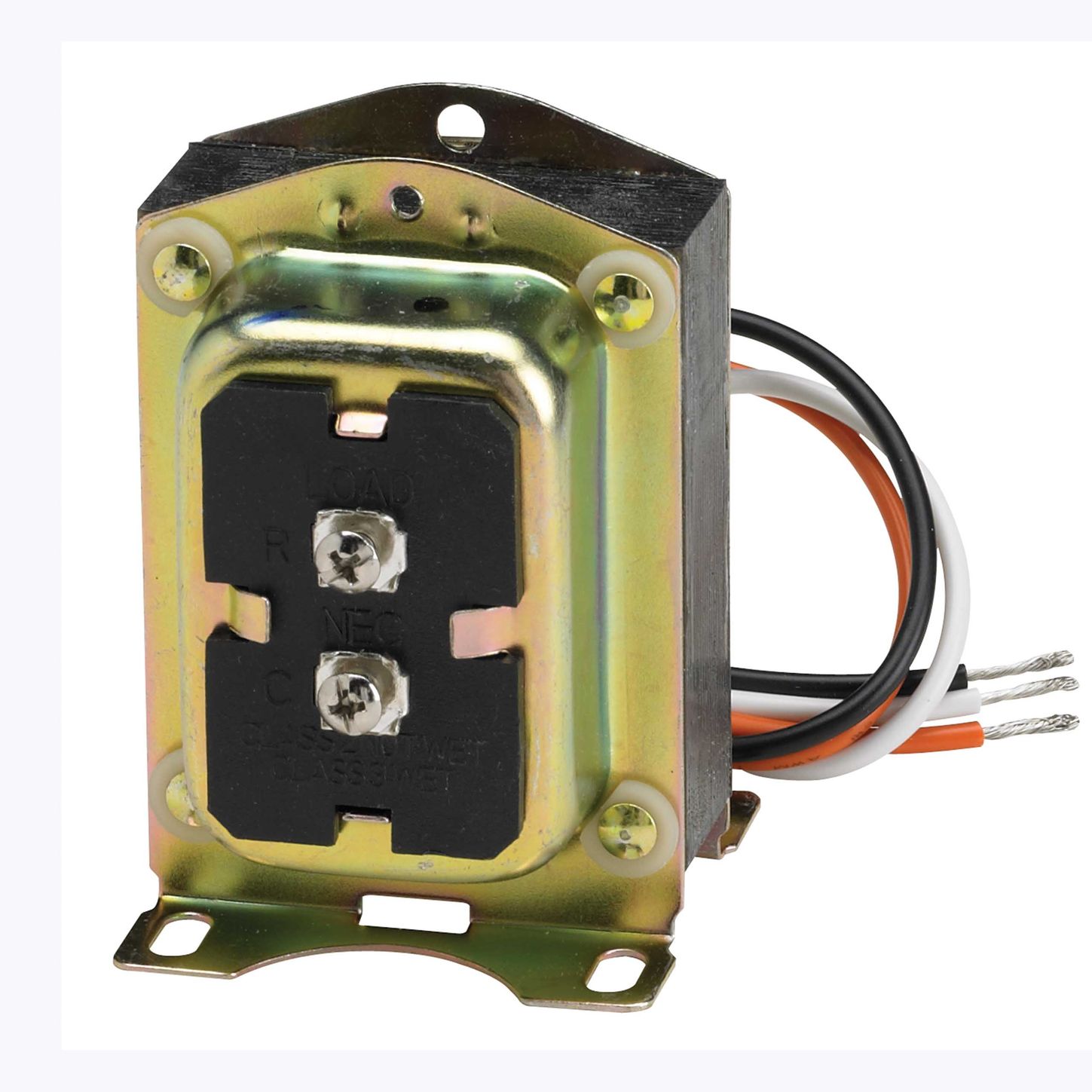

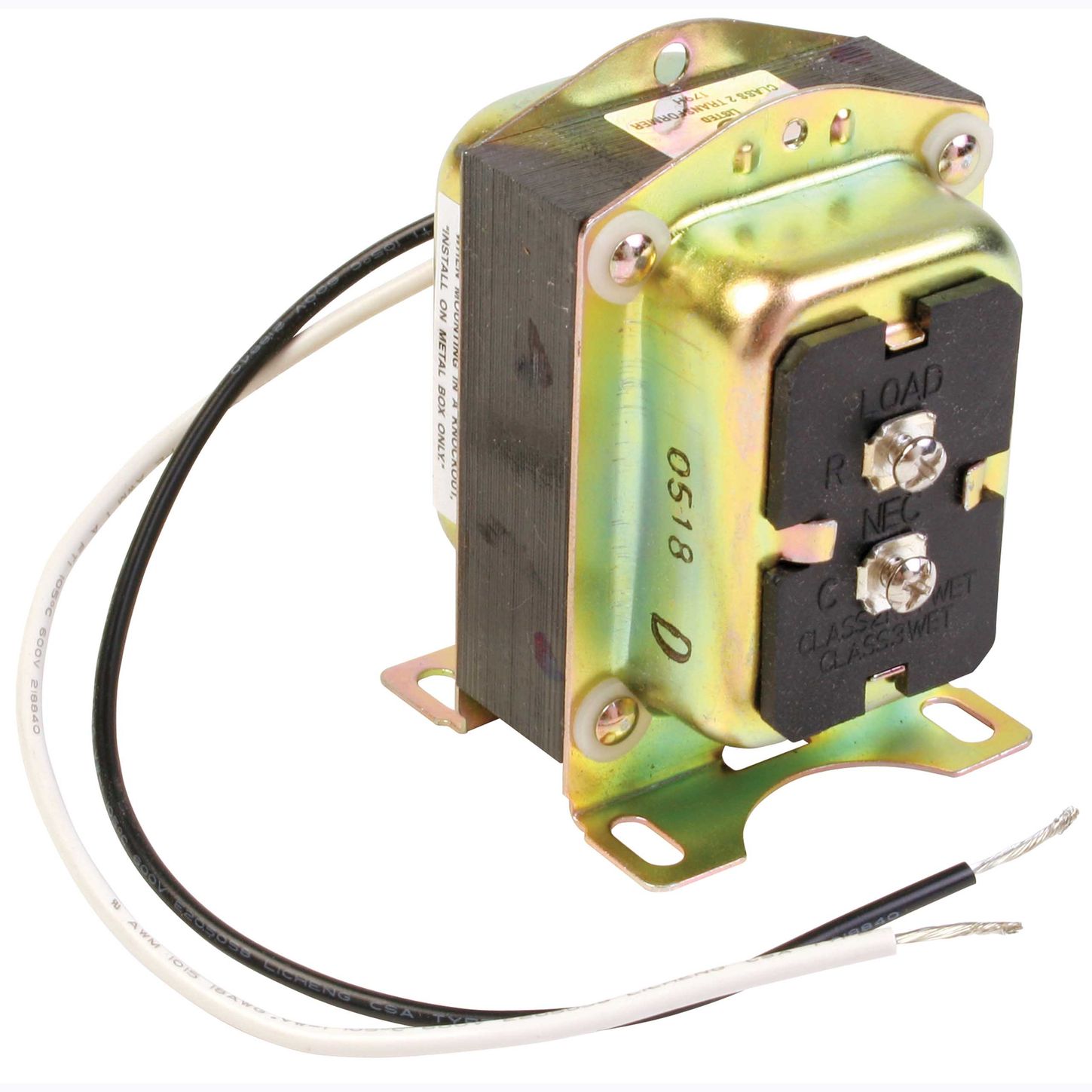

Resideo AT140A1000

40 VA Multisystem Mount Transformer

Foot mounted, plate mounted, clamp mounted or panel mounted 120 Vac Transformer with Metal end bells. Provide power to 24 Vac circuits in heating/cooling control systems. Intended for use in systems with predictable, uniform loads. Can be used in any application that does not exceed the listed ratings.

Specifications:

• Foot mounted, plate mounted, clamp mounted or panel mounted 120 Vac Transformer with Metal end bells

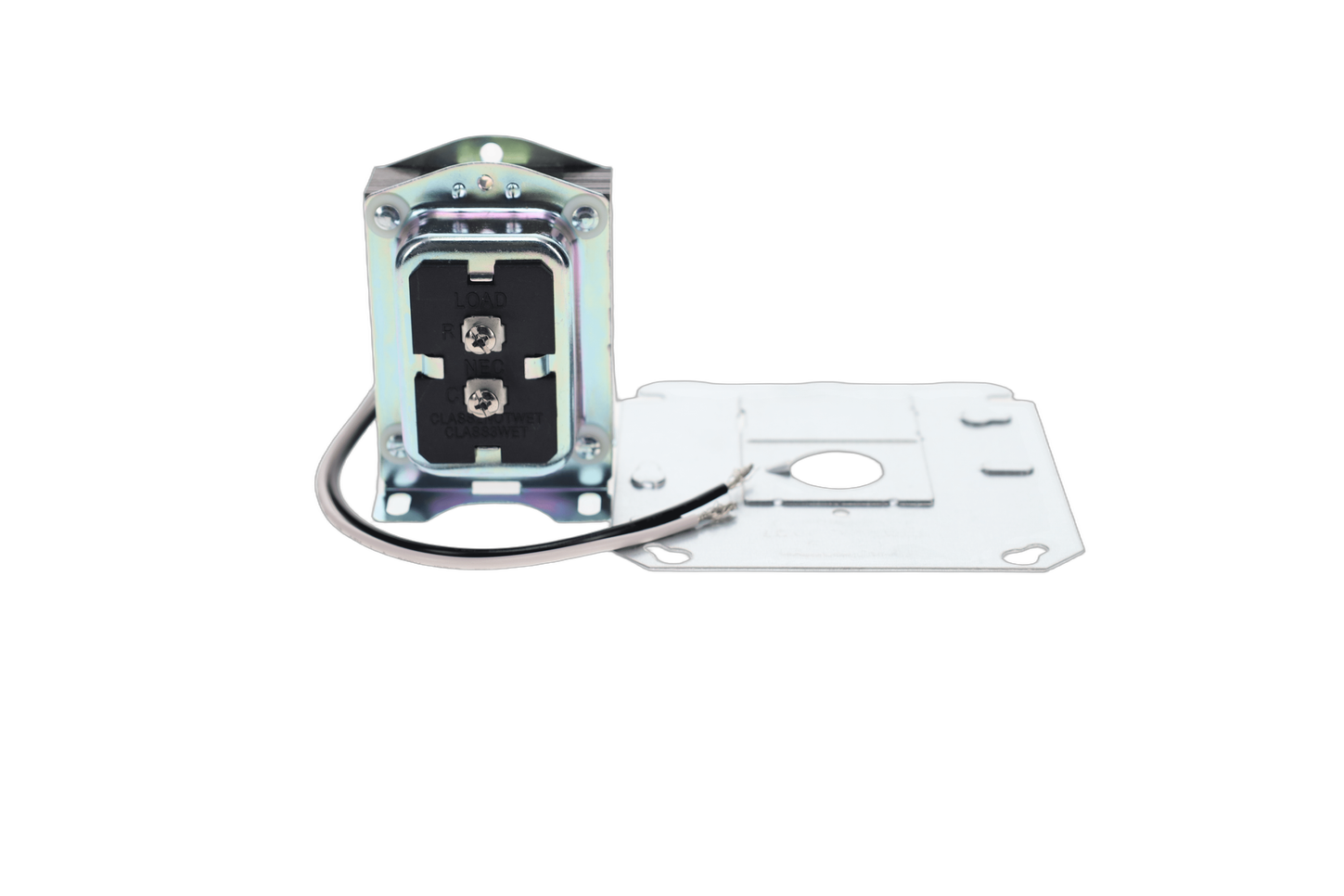

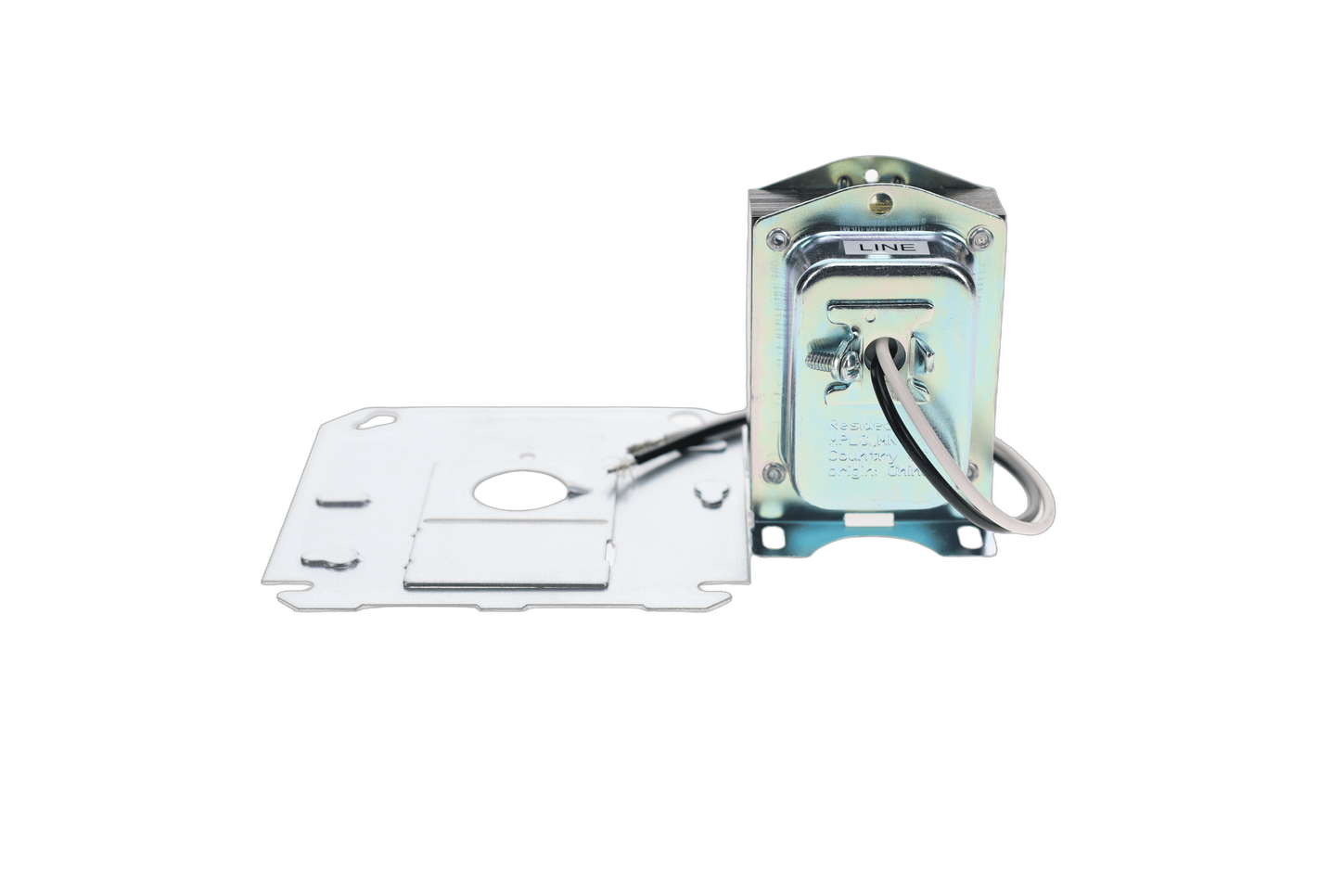

• Foot mounted, plate mounted on 2x4 in. or 4x4 in. outlet box, clamp mounted using outlet box knockout, or panel mounted
• 9 in. leadwires
• 229 mm leadwires
• Two Screw Terminals
• Dimensions (in.): 3-3/16 in. high x 2-⅜ in. wide x 3-⅛ in. deep
• Dimensions (mm): 81 mm high x 60 mm wide x 79 mm deep
• Approvals, Underwriters Laboratories Inc - UL Listed: A,C,F models. File # E14881
• Approvals, Canadian Standards Association - CSA Certified: A \& B models.
• Includes Metal end bells

Features:

• Rated at 40 VA.
• Color-coded leadwires for primary connections and screw terminals for secondary connections, fixed ¼ inch (6 mm) male quick-connects or color-coded leadwires for both primary and secondary, are standard.
• Meet NEC Class 2 requirements.
• Meet Underwriters Laboratories Inc. Standard UL 1585 and are identified. Class 2 not wet, Class 3 wet.
