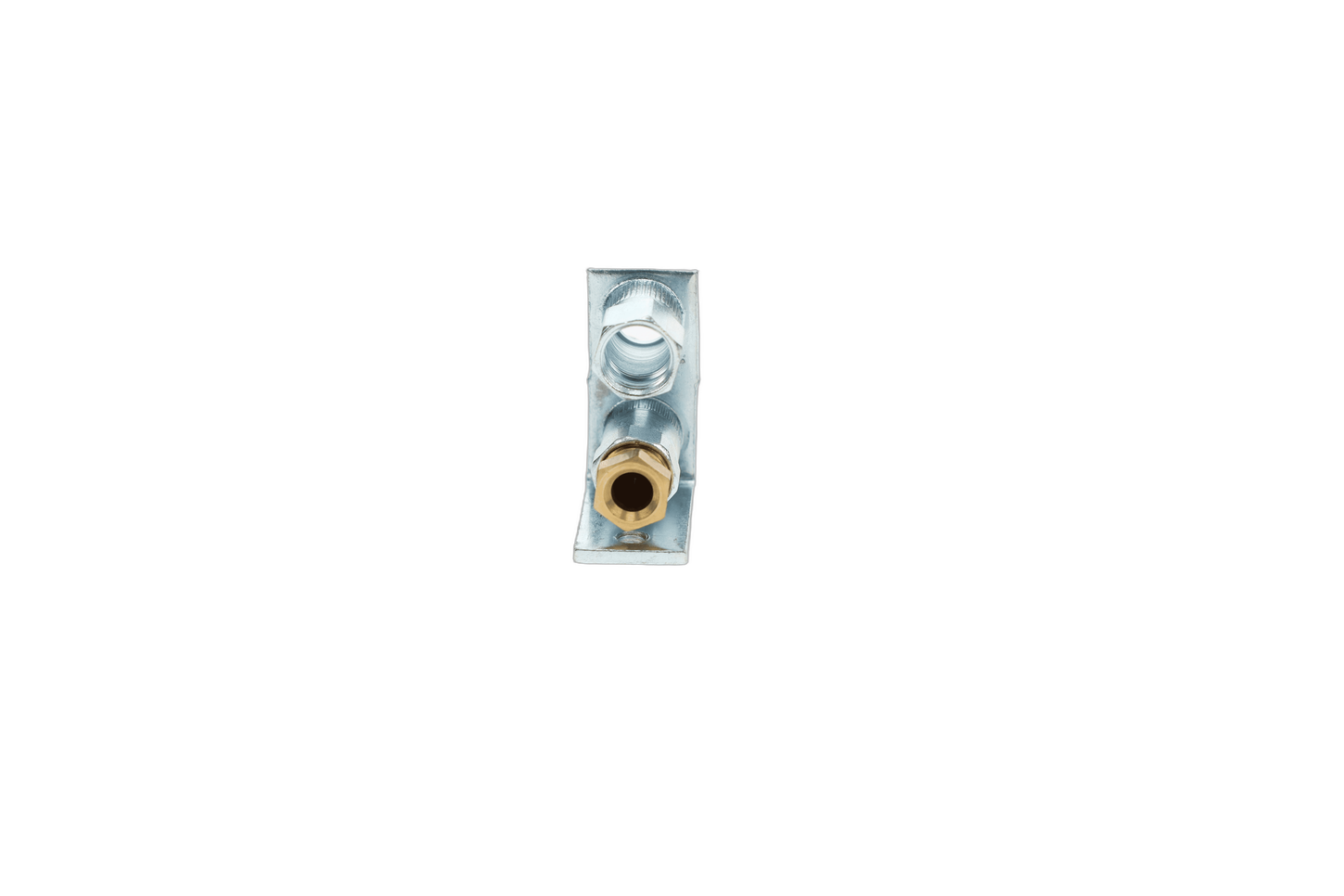

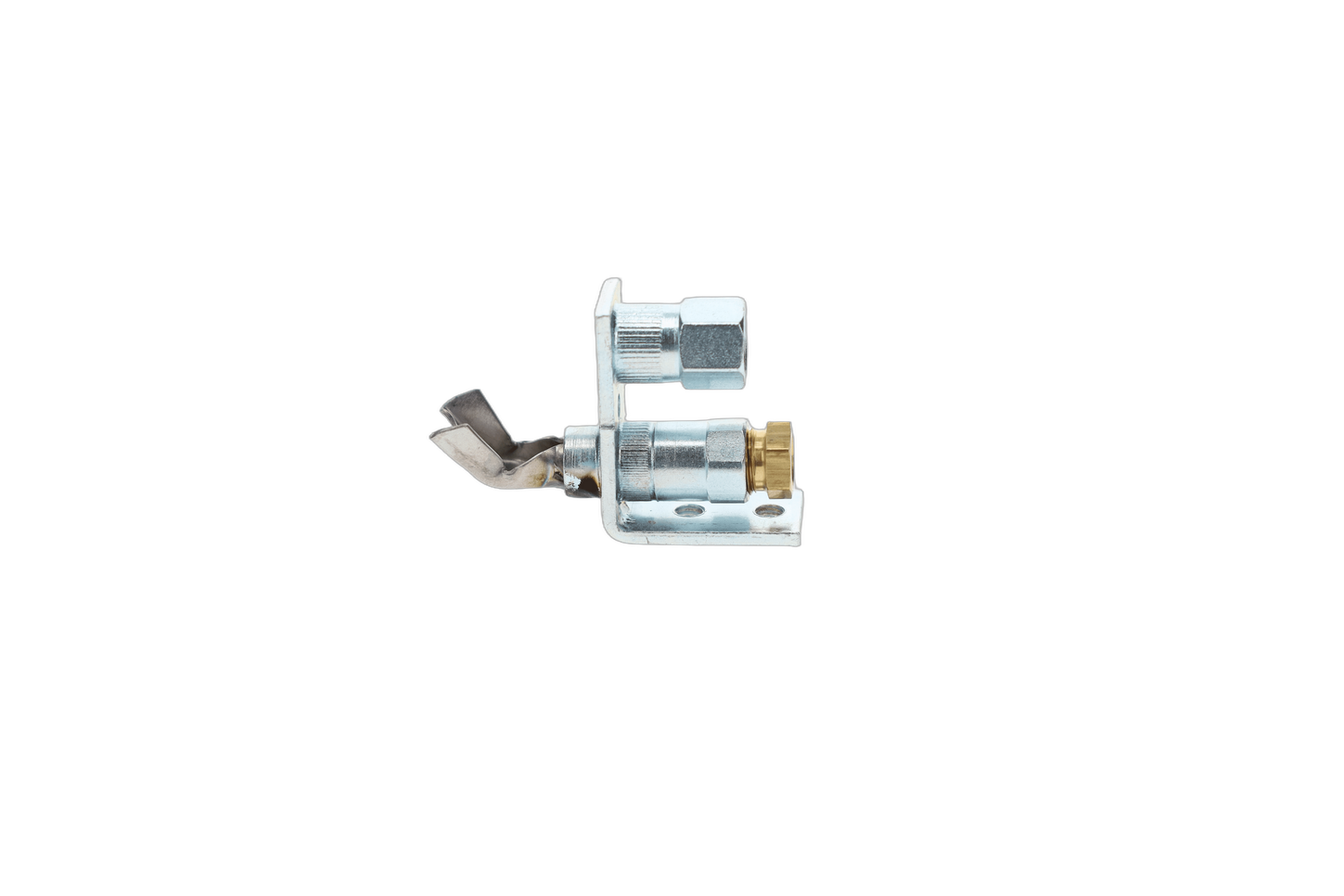

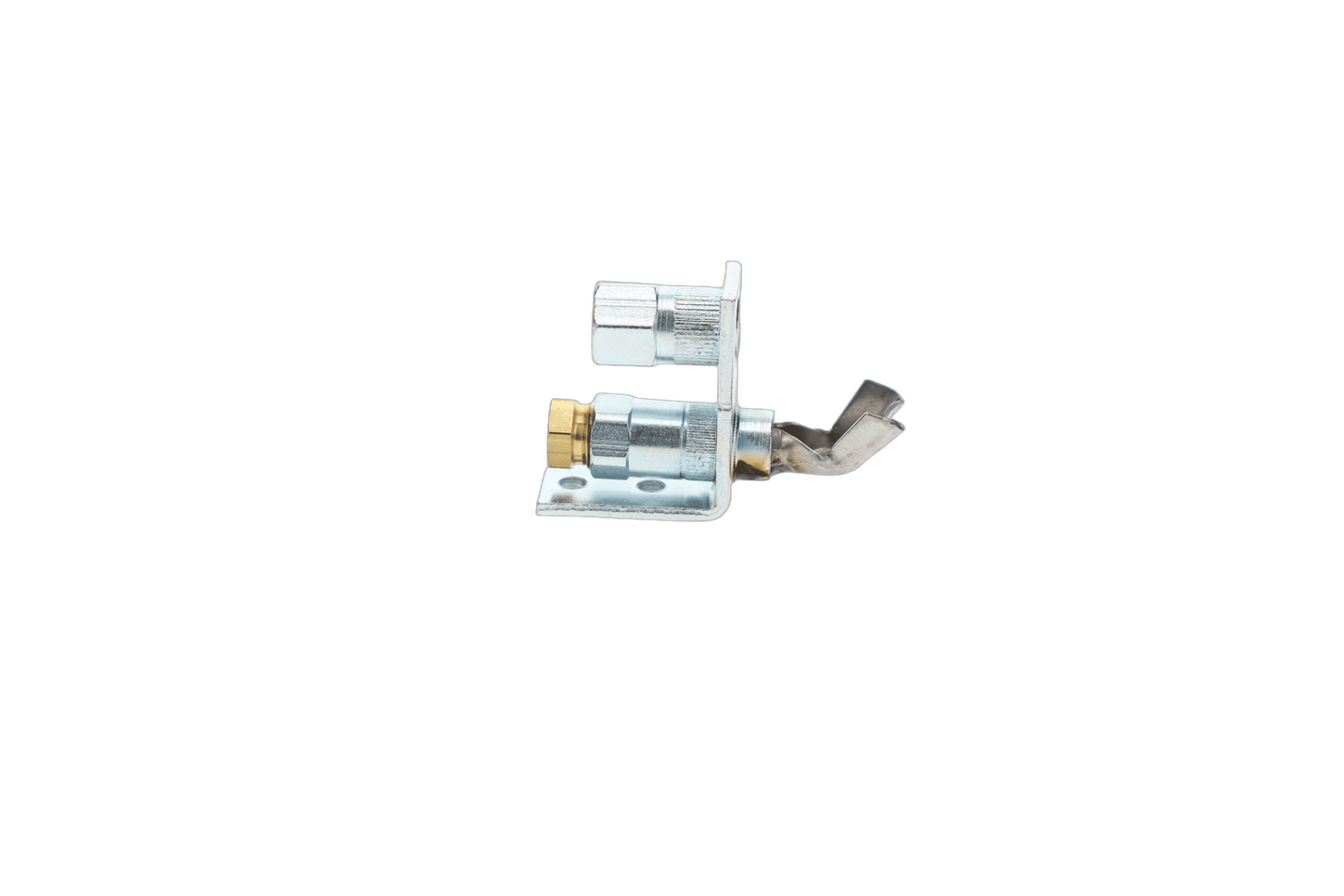

Resideo Q314A4586

Standing Pilot Burner for Natural Gas with front single-tip style

Description: Pilot Burner for natural or LP gas with a BCR-18 orifice, front single tip style, “B” mounting bracket and non-primary aeration.

Product Specifications:

• Type of Gas: Natural, LP
• Mounting Bracket: B
• Compression Fitting Size: ¼ in.
• Orifice: BCR-18 (0.018 in.)
• Direction of Front Tip: (F) Front
• Tip Style: Single
• Aeration: Non-primary
• Approvals, American Gas Association IAS: IAS Certified File No. L2025001
• Includes: ¼ in. CC INLET FITTING. SPECIAL MOUNTING BRACKET WITH SCREWS FOR CONVERTING “B” BRACKET TO “A”. and LP Orifice

Features:

• Use with Q313 Thermopile Generator for 750 mV powerpile applications.
• Variety of mounting brackets available.
• Variety of tip styles to provide desired flame pattern.
• Interchangeable, color-coded orifice and inlet fittings can be ordered to convert between natural and LP gas.
