Eaton 13104AQD07

Name: Eaton 13104AQD07
Brand: Eaton
SKU: CS763483
Price: 490.54 USD
Availability: OutOfStock

SKU: CS763483MPN: 13104AQD07Alternate Part #s: 13104AQD07EAT-13104AQD07UPC/EAN: 04015081323982

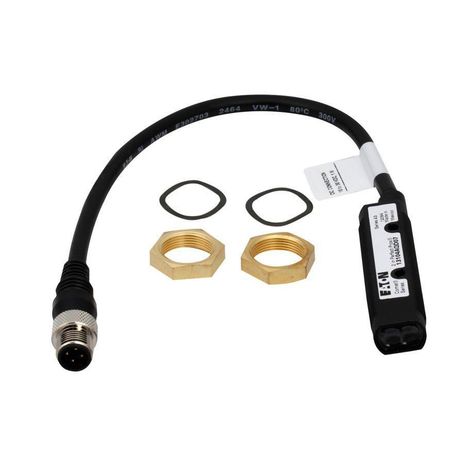

Eaton Moeller® series E58 Diffuse reflective sensor

Eaton 13101A6513, 13101AQD03, 13101AQD07, 13104A6513

Product Details

Eaton Moeller® series Diffuse reflective sensor, Sn\=50mm, 4L, 10-30VDC, PNP, NPN, M18, insulated material, M12, Beam: straight

Attributes

Adjustment Range Max	0 MMT
Adjustment Range Max Uom	MMT
Adjustment Range Min	0 MMT
Adjustment Range Min Uom	MMT
Adjustment Type	Other
Ambient Operating Temperature Max	70 CEL
Ambient Operating Temperature Max Uom	CEL
Ambient Operating Temperature Min	-40 CEL
Ambient Operating Temperature Min Uom	CEL
Cable Sheath Material	Other
Connection	M12
Connection Type	4-wire Plug-in connection M12 x 1
Contact Configuration	NPN and PNP open collector
Contact Rating	100 mA PNP, 250 mA NPN at 10-30 Vdc
Degree Of Protection	NEMA 6 IP67
Diameter Sensor	18 MMT
Diameter Sensor Uom	MMT
Electric Connection Type	Connector M12
Enclosure Material	Polyurethane foam (RIM) Plastic
Enclosure Type	Cylinder, screw-thread
Environmental Rating	NEMA 1, NEMA 3, NEMA 4, NEMA 4X, NEMA 6, NEMA 12, NEMA 13, IP69K
Features	Straight beam
Fitted With	Background suppression (Perfect Prox)
Functions	Protection against polarity reversal Short-circuit protection Reflected-light beam
Input Voltage	10-30 Vdc
Interface Type	Other
Led Indicator	Output ON Status indication of Switching state: Red LED
Light Dot Size	0 MMK
Light Dot Size Uom	MMK
Light Type	Polarity free red light
Load Current	Max. 100 mA (Ie, PNP) Max. 250 mA (Ie, NPN, 120 > 50°C)
Maximum Dc Current	100 mA PNP, 250 mA NPN
Number Of Contact Energized Outputs With Signalling Function	0.0000
Number Of Outputs Protected Contact Energized	0.0000
Number Of Outputs Protected Semiconductor	0.0000
Number Of Outputs Semiconductor With Signaling Function	2.0000
Number Of Pins	4.0000
Operating Distance Max	0 MMT
Operating Distance Max Uom	MMT
Operating Distance Min	0 MMT
Operating Distance Min Uom	MMT
Operating Mode	Switching principle: Adjustable bright/dark switching
Operating Temperature Max	158 FAH
Operating Temperature Max Uom	FAH
Operating Temperature Min	-40 FAH
Operating Temperature Min Uom	FAH
Operation Agent Safety Class	Safety class 2
Operational Current Ib In The Switched State At 24 V Dc	30 AMP
Operational Current Ib In The Switched State At 24 V Dc Uom	AMP
Optical Surface Material	Plastic
Output Current At Protected Output Max	0 4K
Output Current At Protected Output Max Uom	4K
Output Current Ma Max	250 4K
Output Current Ma Max Uom	4K
Product Category	Comet Series
Protection	Auto reset short circuit
Rated Control Supply Voltage Us At Ac 50 Hz Max	0 VLT
Rated Control Supply Voltage Us At Ac 50 Hz Max Uom	VLT
Rated Control Supply Voltage Us At Ac 50 Hz Min	0 VLT
Rated Control Supply Voltage Us At Ac 50 Hz Min Uom	VLT
Rated Control Supply Voltage Us At Ac 60 Hz Max	0 VLT
Rated Control Supply Voltage Us At Ac 60 Hz Max Uom	VLT
Rated Control Supply Voltage Us At Ac 60 Hz Min	0 VLT
Rated Control Supply Voltage Us At Ac 60 Hz Min Uom	VLT
Rated Control Supply Voltage Us At Dc Max	30 VLT
Rated Control Supply Voltage Us At Dc Max Uom	VLT
Rated Control Supply Voltage Us At Dc Min	10 VLT
Rated Control Supply Voltage Us At Dc Min Uom	VLT
Rated Switching Distance Sn	50 MMT
Rated Switching Distance Sn Uom	MMT
Reflector Distance Min	0 MMT
Reflector Distance Min Uom	MMT
Response Time	1 ms
Safety Type Iec 61496 1	1.0000
Sensing Mode	Light-/dark switching
Sensor Material	Insulated material
Sensor Type	Back ground suppression
Series	Comet
Shock Resistance	100 g, Mechanical, Shock duration 3 ms
Switch Function Type	Programmable/configurable
Switching Distance Max	50 MMT
Switching Distance Max Uom	MMT
Switching Frequency	500 Hz
Switching Output Type	PNP/NPN
Switching Voltage Of Ossd At State High	30.0000
Switching Voltage Of Ossd At State High Uom	VLT
Transmission Range Of The Safety Field	0 MTR
Transmission Range Of The Safety Field Uom	MTR
Triangulation	Background fade-out
Type	Optical sensors
Voltage Rating Max	30 VLT
Voltage Rating Max Uom	VLT
Voltage Type	DC
Wire Size	22
