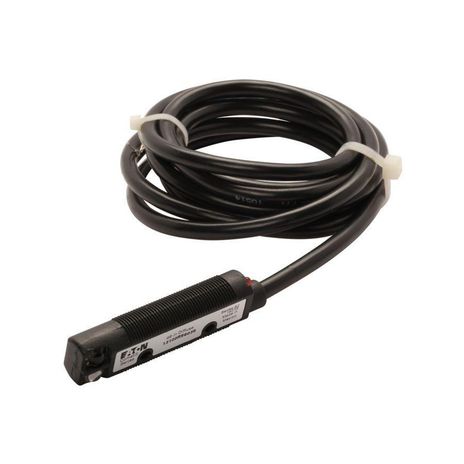

Eaton 13100RQD07

Name: Eaton 13100RQD07
Brand: Eaton
SKU: CS5018795
Price: 408.07 USD
Availability: OutOfStock

SKU: CS5018795MPN: 13100RQD07UPC/EAN: 04015081323784

Eaton Moeller® series E58 Diffuse reflective sensor

Eaton 13100R6513, 13100R6517, 13100RQD07

Product Details

Eaton Moeller® series E58 Diffuse reflective sensor, Sn\=610mm, 4L, 10-30VDC, NPN, PNP, M18, M12, insulated material

Attributes

Adjustment Type	Manual adjustment
Ambient Operating Temperature Max	70 CEL
Ambient Operating Temperature Max Uom	CEL
Ambient Operating Temperature Min	-40 CEL
Ambient Operating Temperature Min Uom	CEL
Cable Sheath Material	Polyvinyl chloride (PVC)
Cable Type	Polyvinyl Chloride (PVC)
Connection	4-pin M12 connector
Connection Type	4-wire Plug-in connection M12 x 1
Contact Configuration	NPN and PNP open collector
Contact Rating	100 mA PNP, 250 mA NPN at 10-30 Vdc
Degree Of Protection	IP67 NEMA 6
Diameter Sensor	18 MMT
Diameter Sensor Uom	MMT
Electric Connection Type	Connector M12
Enclosure Material	Lens: polycarbonate Body: structural polyurethane foam Cable jacket: PVC Plastic
Enclosure Type	Cylinder, screw-thread
Environmental Rating	NEMA 1, NEMA 3, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12, NEMA 13, IP68, IP69K
Features	Right-angled beam
Functions	Reflected-light beam Short-circuit protection Protection against polarity reversal
Input Voltage	10-30 Vdc
Interface Type	Other
Led Indicator	Output status: red Status indication of Switching state: Red LED
Light Dot Size	0 MMK
Light Dot Size Uom	MMK
Light Type	Infrared light
Load Current	Max. 250 mA (Ie, NPN, 120 > 50°C) Max. 100 mA (Ie, PNP)
Maximum Dc Current	100 mA PNP, 250 mA NPN
Number Of Contact Energized Outputs With Signalling Function	0.0000
Number Of Outputs Protected Contact Energized	0.0000
Number Of Outputs Protected Semiconductor	0.0000
Number Of Outputs Semiconductor With Signaling Function	2.0000
Operating Distance Max	0 MMT
Operating Distance Max Uom	MMT
Operating Distance Min	0 MMT
Operating Distance Min Uom	MMT
Operating Mode	Diffuse reflective Switching principle: Adjustable bright/dark switching
Operating Temperature Max	158 FAH
Operating Temperature Max Uom	FAH
Operating Temperature Min	-40 FAH
Operating Temperature Min Uom	FAH
Operation Agent Safety Class	Safety class 2
Operational Current Ib In The Switched State At 24 V Dc	30 AMP
Operational Current Ib In The Switched State At 24 V Dc Uom	AMP
Optical Surface Material	Plastic
Output Current At Protected Output Max	0 4K
Output Current At Protected Output Max Uom	4K
Output Current Ma Max	250 4K
Output Current Ma Max Uom	4K
Product Category	Comet Series
Protection	Auto reset short circuit
Rated Control Supply Voltage Us At Ac 50 Hz Max	0 VLT
Rated Control Supply Voltage Us At Ac 50 Hz Max Uom	VLT
Rated Control Supply Voltage Us At Ac 50 Hz Min	0 VLT
Rated Control Supply Voltage Us At Ac 50 Hz Min Uom	VLT
Rated Control Supply Voltage Us At Ac 60 Hz Max	0 VLT
Rated Control Supply Voltage Us At Ac 60 Hz Max Uom	VLT
Rated Control Supply Voltage Us At Ac 60 Hz Min	0 VLT
Rated Control Supply Voltage Us At Ac 60 Hz Min Uom	VLT
Rated Control Supply Voltage Us At Dc Max	30 VLT
Rated Control Supply Voltage Us At Dc Max Uom	VLT
Rated Control Supply Voltage Us At Dc Min	0 VLT
Rated Control Supply Voltage Us At Dc Min Uom	VLT
Rated Switching Distance Sn	610 MMT
Rated Switching Distance Sn Uom	MMT
Reflector Distance Min	0 MMT
Reflector Distance Min Uom	MMT
Response Time	1 ms
Safety Type Iec 61496 1	1.0000
Sensing Mode	Light-/dark switching
Sensor Material	Insulated material
Sensor Type	Diffuse reflective
Shock Resistance	100 g, Mechanical, Shock duration 3 ms
Switch Function Type	Other
Switch Type	Photoelectric
Switching Distance Max	610 MMT
Switching Distance Max Uom	MMT
Switching Frequency	500 Hz
Switching Output Type	NPN
Switching Voltage Of Ossd At State High	0.0000
Switching Voltage Of Ossd At State High Uom	VLT
Transmission Range Of The Safety Field	0 MTR
Transmission Range Of The Safety Field Uom	MTR
Type	Optical sensors
Voltage Rating Max	30 VLT
Voltage Rating Max Uom	VLT
Voltage Type	DC
Wire Size	22
