Turck NI4U-Q8SE-AP6X
SKU: CS736408MPN: NI4U-Q8SE-AP6XAlternate Part #: 4635807UPC/EAN: 4047101158601
4635807 - UPROX, RECT., DC, CABLE
$127.25
UnitAvailable on backorder
Product Details
Inductive Sensor
With Extended Switching Distance
- Rectangular, height 8 mm
- Active face on top
- Factor 1 for all metals
- Increased switching distance
- Protection class IP68
- Resistant to magnetic fields
- Auto-compensation protects against pre-damping
- Flush mounted installation on up to 4 sides
- DC 3-wire, 10…30 VDC
- NO contact, PNP output
- Cable connection
Attributes
| Ambient Temperature | -30…+85 °C |
| Construction Size | 40 x 8 x 8 mm, Q8SE |
| Customs Tariff Number | 85365019900.0000 |
| Design | Rectangular |
| Ecl Ss Code V5 1 4 | 27270101 -/- Inductive proximity switch |
| Electrical Connection | Cable |
| Housing Material | Plastic, PP, Yellow |
| Mounting | Non-flush |
| Operating Voltage | 10…30 VDC |
| Output Function | NO contact, PNP |
| Protection Class | IP68 |
| Rated Switching Distance | 4 mm |
| Special Feature | uprox+, Factor 1, Resistant to magnetic fields |
| Switching Frequency | 1.0 kHz |
Specifications
| SKU | CS736408 |
|---|---|
| MPN | NI4U-Q8SE-AP6X |
| Alternate Part # | 4635807 |
| UPC/EAN | 4047101158601 |
You may also like
Turck NI4U-Q8SE-RP6X
$127.25Unit

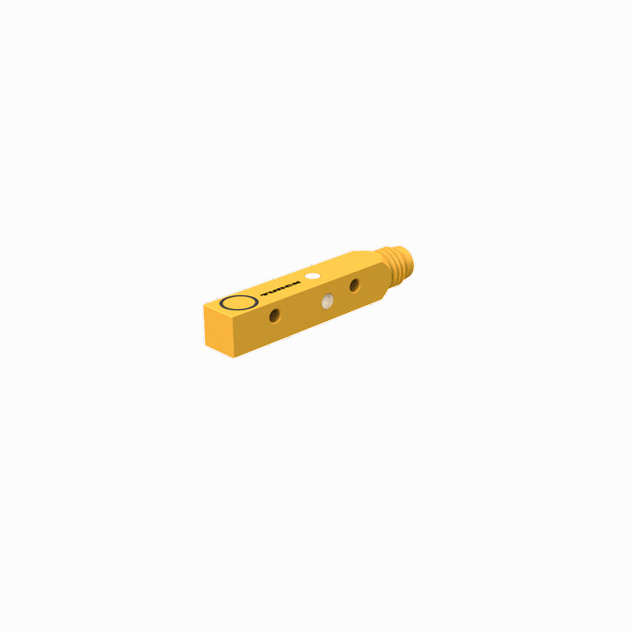

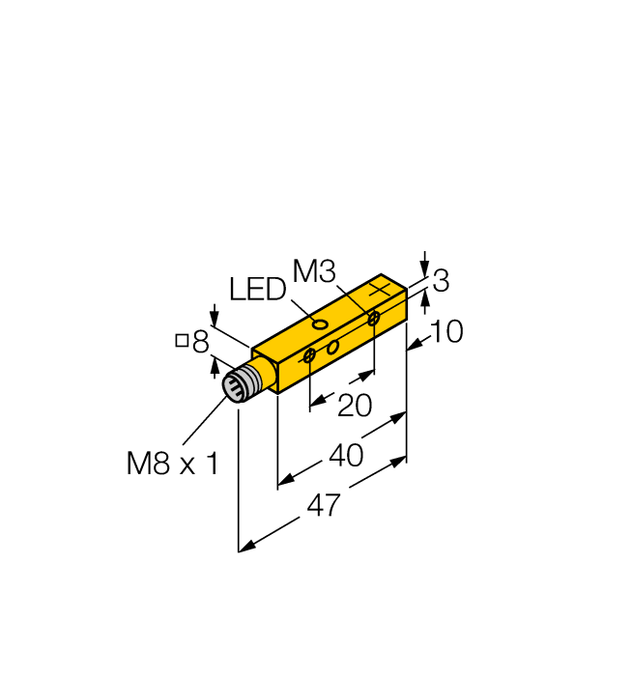

Turck NI4U-Q8SE-AP6X-V1131
$127.25UnitTurck NI4U-Q8SE-AN6X
$123.10Unit
Turck NI4U-Q8SE-AP6X-0.2-PSG3
$134.85Unit
Turck NI4U-Q8SE-AP6X-0.3-PSG3M
$134.85Unit

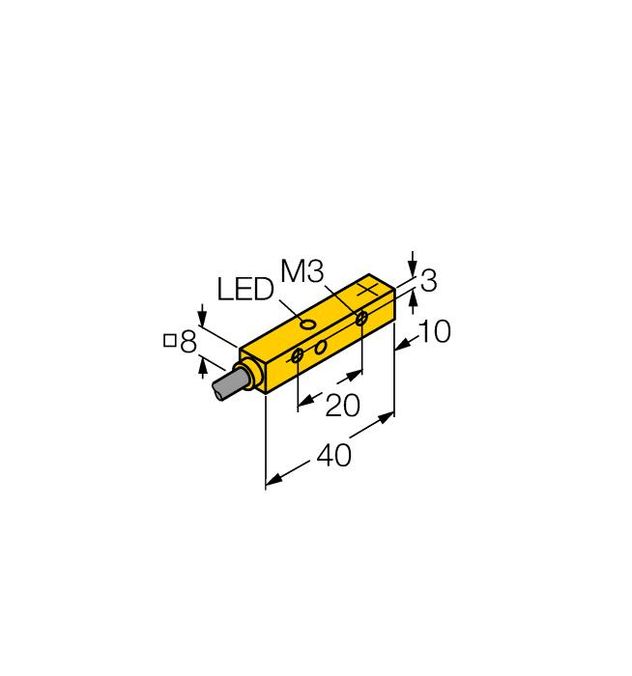

Turck NI4U-Q8SE-RP6X/F2
Contact us for pricing and availability

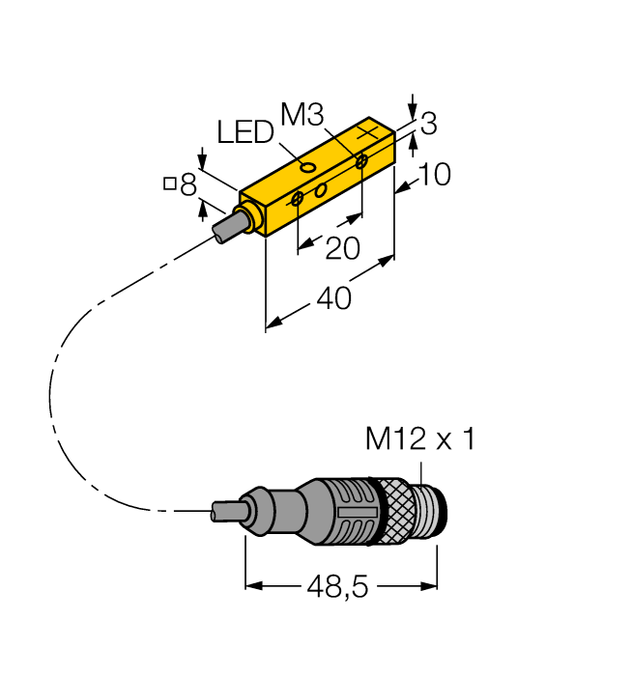

Turck NI4U-Q8SE-AP6X-0.3-RS4T
