Turck NI4U-Q8SE-AP6X-0.3-RS4T
SKU: CS3814410MPN: NI4U-Q8SE-AP6X-0.3-RS4TAlternate Part #: 4635891
4635891 - UPROX, RECT., DC, PIGTAIL M12
$134.85
UnitAvailable on backorder
Product Details
Inductive Sensor
With Extended Switching Distance
- Rectangular, height 8 mm
- Active face on top
- Plastic, PP
- Factor 1 for all metals
- Increased switching distance
- Protection class IP68
- Resistant to magnetic fields
- Auto-compensation protects against pre-damping
- Flush mounted installation on up to 4 sides
- DC 3-wire, 10…30 VDC
- NO contact, PNP output
- Pigtail with male end M12 x 1
Attributes
| Ambient Temperature | -30…+85 °C |

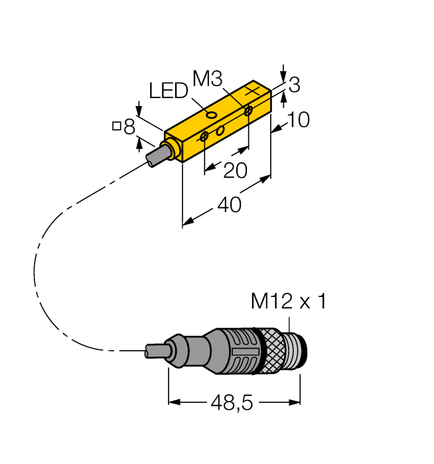

| Construction Size | 40 x 8 x 8 mm, Q8SE |
| Design | Rectangular |
| Ecl Ss Code V5 1 4 | 27270101 -/- Inductive proximity switch |
| Electrical Connection | Cable with connector, M12 × 1 |
| Housing Material | Plastic, PP, Yellow |
| Mounting | Non-flush |
| Operating Voltage | 10…30 VDC |
| Output Function | NO contact, PNP |
| Protection Class | IP68 |
| Rated Switching Distance | 4 mm |
| Special Feature | uprox+, Factor 1, Resistant to magnetic fields |
| Switching Frequency | 1.0 kHz |
Specifications
| SKU | CS3814410 |
|---|---|
| MPN | NI4U-Q8SE-AP6X-0.3-RS4T |
| Alternate Part # | 4635891 |
