Turck NI4U-Q8SE-AN6X-V1131
SKU: CS3814405MPN: NI4U-Q8SE-AN6X-V1131Alternate Part #: 4635810UPC/EAN: 4047101158632
4635810 - UPROX, RECT., DC, CON. M8
$123.10
UnitAvailable on backorder
Product Details
Inductive Sensor
With Extended Switching Distance
- Rectangular, height 8 mm
- Active face on top
- Factor 1 for all metals
- Increased switching distance
- Protection class IP68
- Resistant to magnetic fields
- Auto-compensation protects against pre-damping
- Flush mounted installation on up to 4 sides
- DC 3-wire, 10…30 VDC
- NO contact, NPN output
- M8 x 1 male connector
Attributes
| Ambient Temperature | -30…+85 °C |

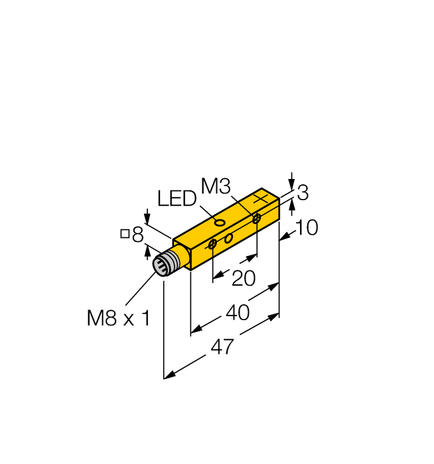

| Construction Size | 40 x 8 x 8 mm, Q8SE |
| Customs Tariff Number | 85365019900.0000 |
| Design | Rectangular |
| Ecl Ss Code V5 1 4 | 27270101 -/- Inductive proximity switch |
| Electrical Connection | Connector, M8 × 1 |
| Housing Material | Plastic, PP, Yellow |
| Mounting | Non-flush |
| Operating Voltage | 10…30 VDC |
| Output Function | NO contact, NPN |
| Protection Class | IP68 |
| Rated Switching Distance | 4 mm |
| Special Feature | uprox+, Factor 1, Resistant to magnetic fields |
| Switching Frequency | 1.0 kHz |
Specifications
| SKU | CS3814405 |
|---|---|
| MPN | NI4U-Q8SE-AN6X-V1131 |
| Alternate Part # | 4635810 |
| UPC/EAN | 4047101158632 |
