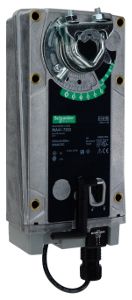

Schneider Electric MS41-7303

SKU: CS5489333MPN: MS41-7303

SmartX, Damper Actuator, proportional 2-10 Vdc, spring return, 24 Vac, 3 ft appliance cable, 270 lb-in, NEMA 2

Schneider Electric MA41-7300, MA41-7303, MA41-7303-502, MS41-7303, MS41-7303-502
$789.09
Unit
Available on backorder
remove
add

Product Details

Actuator: (MS41-7303):

  • Actuator Type: Electric
  • Control Signal: Proportional
  • Control Signal Range: 2 to 10 VDC, 4 to 20 mAdc
  • Loss of Power Type: Spring Return
  • Power Input Voltage: 24 VAC/VDC
  • Leads and Connections: 3 ft Appliance
  • Torque: 270 in-lb
  • Mechanical Movement: Rotary
  • Protection Rating: NEMA 2
  • Product Line: Schneider Electric
  • Product Range: SmartX Actuator
  • Product Series: Mx41-73xx
  • Actuator Use: Dampers

Attributes

Actuator rotary
Product Or Component Type actuator
IP Degree Of Protection IP11
(Us) Rated Supply Voltage 24 V AC/DC
Switch Function No
Control Type automatic reset
Ambient Air Temperature For Operation -40-50 °C
Ambient Air Temperature For Storage -40-80 °C
Actuator Rotation 95 °
Tightening Torque 270 lb.in; 30 N.m
Material die cast aluminium: housing; PTFE (polytetrafluoroethylene): seal
Analogue Input Range 2…10 V DC; 4…20 mA DC
Motor Type brushless DC motor
NEMA Degree Of Protection NEMA 2
Power Consumption In W 9.5 W
Spring Return Timing 150 s
Transformer Rated Power In VA 16 VA
Hold-In Power Consumption In W 4.5-4.5 W

Specifications

SKUCS5489333
MPNMS41-7303
