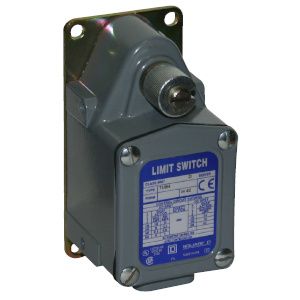

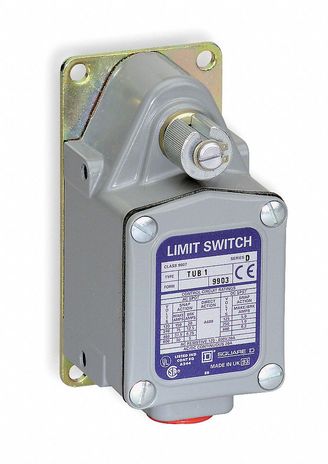

Square D 9007TUB1

Name: Square D 9007TUB1
Brand: Square D
SKU: CS601152
Availability: OutOfStock

SKU: CS601152MPN: 9007TUB1UPC/EAN: 785901751830

Limit switch, 9007, 600 VAC 12amp t +options

Product Details

LIMIT SWITCH 600VAC 12AMP T +OPTION

Ithe Conventional Enclosed Thermal Current	20 A
Ambient Air Temperature For Operation	-10-185 °F
Ambient Air Temperature For Operation 1	-10-185 °F
Ambient Air Temperature For Storage	-10-185 °F
Base Plate Style	style B
Body Material	cast zinc
Body Type	fixed
Contact Form	Form Z
Contact Operation	snap action
Contact Sequence Number	1.0000
Contacts Material	silver flashed copper
Contacts Usage	-
Device Application	universal mill switch
Device Short Name	9007T/FT
Fixing Mode	by the body
Function Available	-
Head Type	rotary head
Maximum Displacement Angle	88 °
Minimum Torque For Tripping	12 lbf.in
Movement Of Operating Head	rotary
Number Of Poles	1
Positive Opening	without
Product Or Component Type	limit switch
Protective Treatment	corrosion resistant gray paint
Range Of Product	9007
Sale Per Indivisible Quantity	1.0000
Series Name	severe duty mill
Switch Actuation	CW# #from left
Switch Function	SPDT-DB
Terminals Description Iso N 1	B (right side contact)# #A (left side contact)
Type Of Approach	lateral approach
Type Of Operator	spring return without operating lever
