Dwyer L8
SKU: CS3144090MPN: L8Alternate Part #: 119156-00

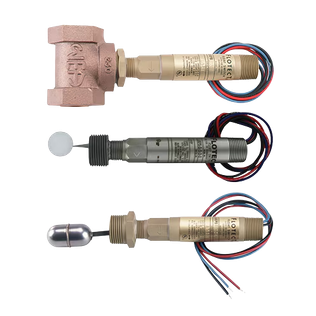

L8 FLOTECT LEVEL SWITCH
$152.69
UnitAvailable on backorder
Product Details
Liquid level switch.
Attributes
| Commodity Code | 8208 |
| Compliance | CE, cURus. |
| Conduit Connection | ½” male NPT, ½” female NPT on WP and WP2. |
| Electrical Connection | 18 AWG, 18” (460 mm) long. |
| Electrical Rating | 5 A @ 125/250 VAC, 5 A resistive, 3 A inductive @ 30 VDC. MV option: 1 A @ 125 VAC, 1 A resistive, 0.5 A inductive @ 30 VDC. |
| Enclosure Rating | General purpose. WP/WP2 options are weatherproof. |
| Mounting Orientation | Horizontal with index arrow pointing down. |
| Pressure Limit | 150 psig (10.34 bar). |
| Process Connection | 1” male NPT. |
| Service | Compatible liquids. |
| Specific Gravity | 0.6 minimum. |
| Switch Type | SPDT snap switch. MV option is a SPDT gold contact snap switch. |
| Wetted Material | Float and Body: Polyphenylene sulfide (PPS); Pin and spring: 316 SS or Inconel® Alloy; Magnet: Ceramic 8. |
Specifications
| SKU | CS3144090 |
|---|---|
| MPN | L8 |
| Alternate Part # | 119156-00 |
