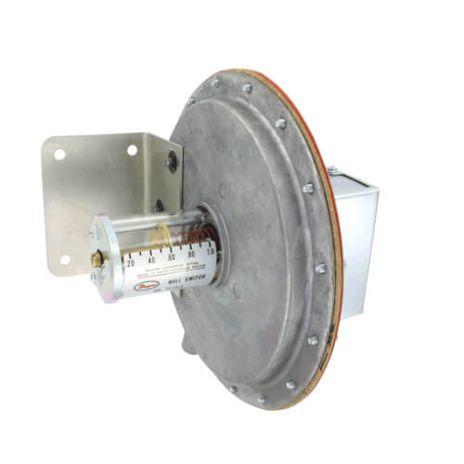

Dwyer 1640-0
SKU: CS630127MPN: 1640-0Alternate Part #: 113040-00
1640-0 PRESS SW .01-.2 INWC
$870.12
Unit1 Unit Available at Factory - Ships Same/Next Business Day
Product Details
Floating contact null switch, range .01-0.2” w.c., adj. null span, .01 min. set, .03 max. Set.
Attributes
| Commodity Code | 2500 |
| Compliance | CE. |
| Electrical Connection | 3 screw type. |
| Electrical Rating | Non-inductive: 2.5 A @ 110 VAC, 1.5 A @ 220 VAC, 1 A @ 24 VDC, 0.5 A @ 110 VAC; Inductive: 1 A @ 110 VAC, 0.5 A @ 220 VAC, 0.5 A @ 24 VDC. (De-rate 70-80% for very slow pressure changes.) |
| Mounting Orientation | Diaphragm in vertical position. Consult factory for other position orientations. |
| Pressure Limit | 10 psig (68.95 kPa) continuous, 25 psig (172.4 kPa) surge. |
| Process Connection | ⅛” female NPT. |
| Service | Air and non-combustible, compatible gases. |
| Set Point Adjustment | Screw type. |
| Switch Type | SPDT floating contact (not snap action). |
| Wetted Material | Consult factory. |
Specifications
| SKU | CS630127 |
|---|---|
| MPN | 1640-0 |
| Alternate Part # | 113040-00 |
