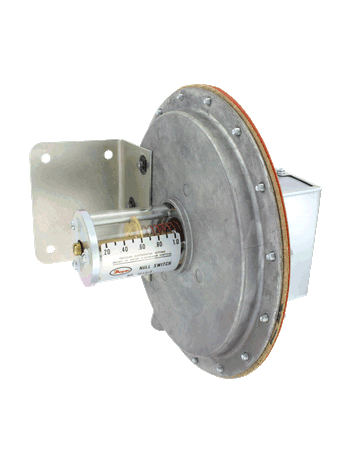

Dwyer 1640-10
SKU: CS5075460MPN: 1640-10Alternate Part #: 113051-00
1640-10 PRESS SW 3.0-12 INWC
$870.12
UnitAvailable on backorder
Product Details
Floating contact null switch, range 3.0-12.0” w.c., adj. null span, .04 min. set, .20 max. Set.
Attributes
| Commodity Code | 2500 |
| Compliance | CE. |
| Electrical Connection | 3 screw type. |
| Electrical Rating | Non-inductive: 2.5 A @ 110 VAC, 1.5 A @ 220 VAC, 1 A @ 24 VDC, 0.5 A @ 110 VAC; Inductive: 1 A @ 110 VAC, 0.5 A @ 220 VAC, 0.5 A @ 24 VDC. (De-rate 70-80% for very slow pressure changes.) |
| Mounting Orientation | Diaphragm in vertical position. Consult factory for other position orientations. |
| Pressure Limit | 10 psig (68.95 kPa) continuous, 25 psig (172.4 kPa) surge. |
| Process Connection | ⅛” female NPT. |
| Service | Air and non-combustible, compatible gases. |
| Set Point Adjustment | Screw type. |
| Switch Type | SPDT floating contact (not snap action). |
| Wetted Material | Consult factory. |
Specifications
| SKU | CS5075460 |
|---|---|
| MPN | 1640-10 |
| Alternate Part # | 113051-00 |
