Dwyer 1638-0
SKU: CS371241MPN: 1638-0Alternate Part #: 113044-00
1638-0 PRESS SW .05-.25 INWC
$564.29
Unit6 in stock
Product Details

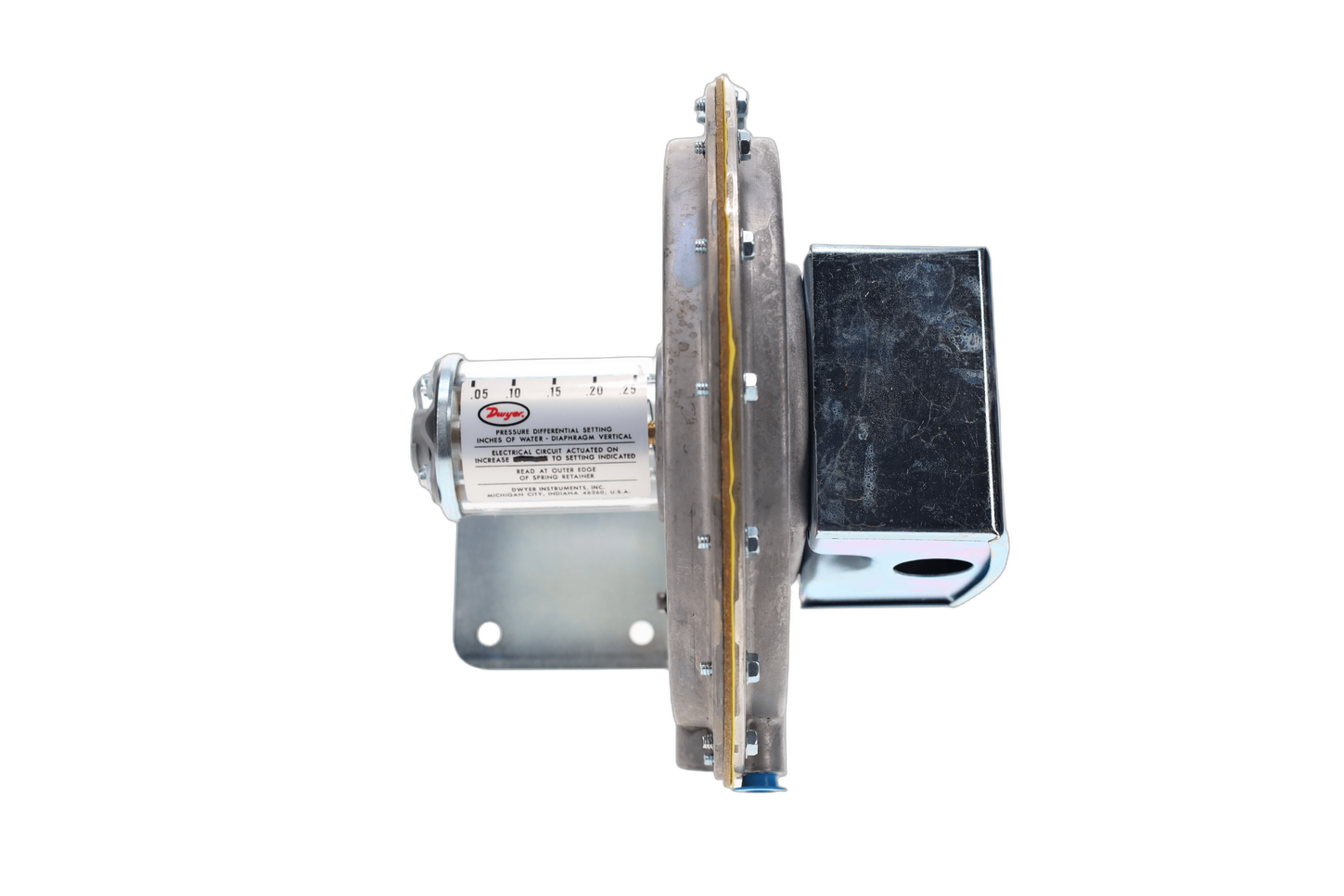

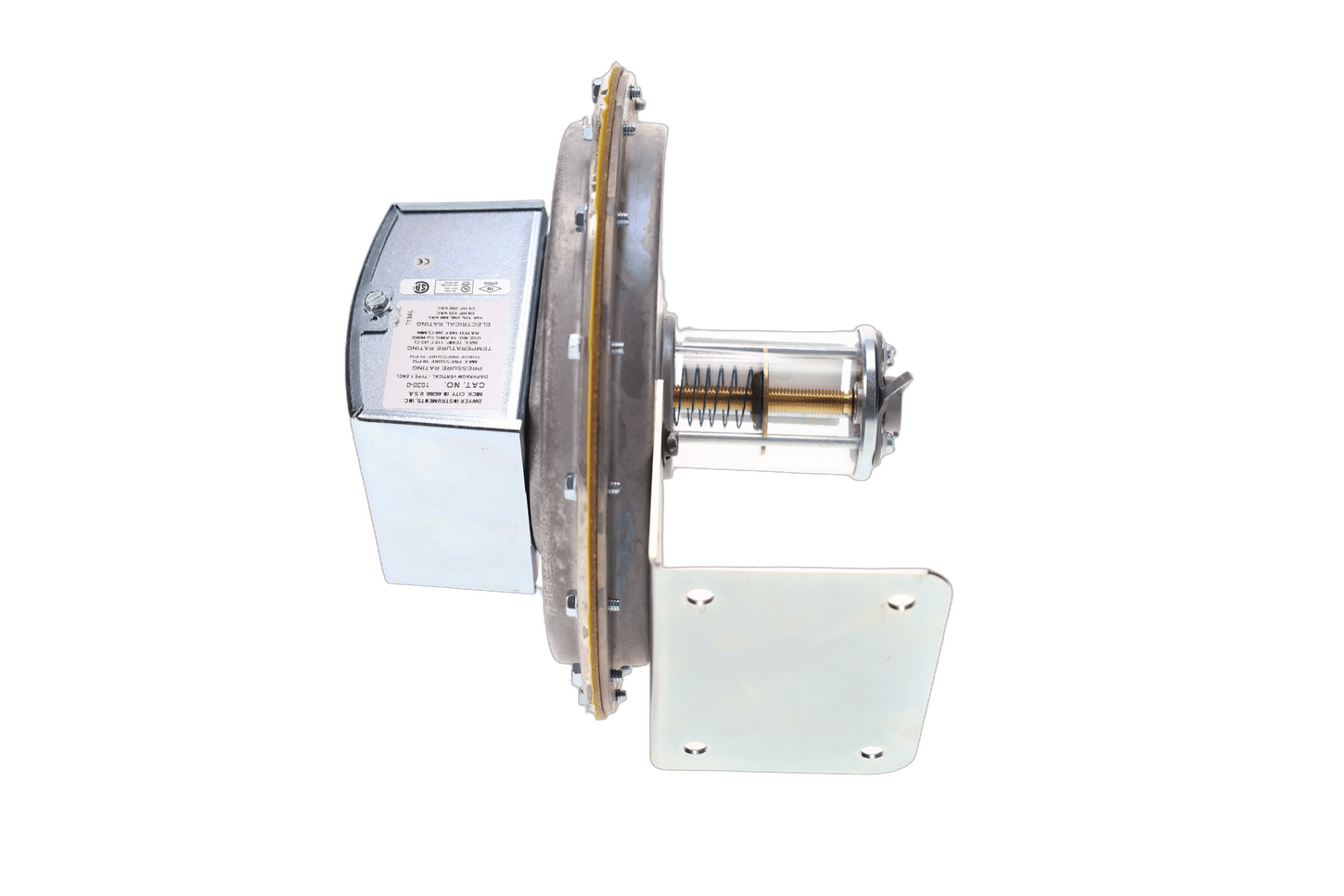

Large diaphragm pressure switch, range 0.05-0.25” w.c., approx deadband @ 0.04 min. set point, 0.05 max. set point.
Attributes
| Commodity Code | 2300 |
| Compliance | CSA, FM, UL. |
| Electrical Connection | 3 screw type, common, normally open and normally closed. |
| Electrical Rating | 15 A @ 120-480 VAC, 60 Hz. Resistive, ⅛ HP @ 125 VAC, ¼ HP @ 250 VAC, 60 Hz. |
| Mounting Orientation | Diaphragm in vertical position. Consult factory for other position orientations. |
| Pressure Limit | 10 psig (68.95 kPa) continuous, 25 psig (172.4 kPa) surge. |
| Process Connection | ⅛” female NPT. |
| Repeatability | ±1%. |
| Service | Air and non-combustible, compatible gases. |
| Set Point Adjustment | Screw type with enclosed scale. |
| Switch Type | SPDT. |
| Wetted Material | Consult factory. |
Specifications
| SKU | CS371241 |
|---|---|
| MPN | 1638-0 |
| Alternate Part # | 113044-00 |
