ACI ECMCS25-A

Name: ACI ECMCS25-A
Brand: ACI
SKU: CS6290946
Availability: OutOfStock

SKU: CS6290946MPN: ECMCS25-AAlternate Part #: 149979

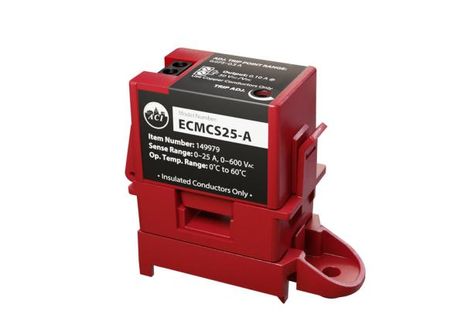

Split Core, N/O ECM Current Switch, Current Sensing Range: 0–25 A, Trip Adjustment Range: 0.075–0.5 A

Product Details

Split Core, N/O ECM Current Switch, Current Sensing Range: 0–25 A, Trip Adjustment Range: 0.075–0.5 A

Product Configuration

Product Type	Adjustable Switches

Product Family Specifications

Core Style	Split-Core
Hysteresis	10% of Trip Level Current, Typical
Contact Type	Normally-Open “N/O”
Sensor Power	Induced from the Monitored Conductor (Use Insulated Conductors only)
Response Time	\< 5 Seconds Typical
Amperage Range	0 to 25 A
Product Weight	0.14 lbs. (0.065 kg)
Agency Approvals	UL/CUL US Listed (UL 916) Energy Management Equipment (File # E334792), CE, UKCA, RoHS, WEEE, CAN ICES-3 / NMB-3
DIN Rail Mounting	35 mm
Isolation Voltage	600 VAC
Maximum AC Voltage	600 VAC
Operating RH Range	10 to 90%, non-condensing

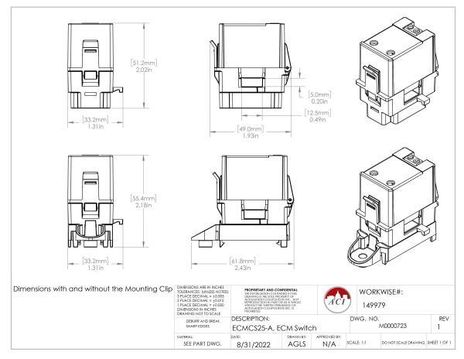

Product Dimensions	1.93” (48.99 mm) x 1.31” (33.17 mm) x 2.18” (55.37 mm)
Monitored Current Type	AC Current
Minimum Mounting Distance	1” (2.6 cm) between current switch \& other magnetic devices (Relays, Contactors, Transformers)
Operating Frequency Range	50/60 Hz
Operating Temperature Range	32°F to 140°F (0°C to 60°C)
“Status” Contact Rating	100 mA Continuous @ 30 VAC/VDC
Terminal Block Torque Rating	4.43 to 5.31 in-lbs. (0.5 to 0.6 Nm)
Storage Temperature \| RH Range	-40 to 158°F (-40 to 70°C) \| 10% to 90% RH, non-condensing
Wiring Connections / Wire Size	2 Position Screw Terminal Block (Not Polarity Sensitive) \| 16 to 22 AWG (1.31 mm2 to 0.33 mm2) Copper Wires Only

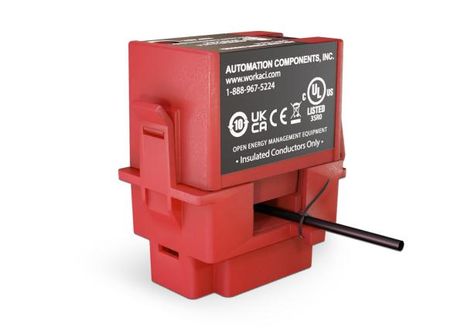

Aperture Size (Diameter) \| Wire Size	0.20”(5.0mm) x 0.49”(12.5mm) \| Fits 10 AWG to 14 AWG THHN Insulated Wire
Enclosure Material \| Flammability Rating	PC/ABS (Polycarbonate/ABS Blend) \| UL94-V0
Trip Point Style \| Adjustable Trip Point Range	Adjustable Trip Point \| 0.075 A to 0.50 A
Contact “On” Resistance \| “Off” Resistance	\< 10 Ohms (when tripped) \| > 1 Meg Ohms (Open)
