Name: ACI A/MCS
Brand: ACI
SKU: CS6285391
Availability: OutOfStock

SKU: CS6285391MPN: A/MCSAlternate Part #: 117852

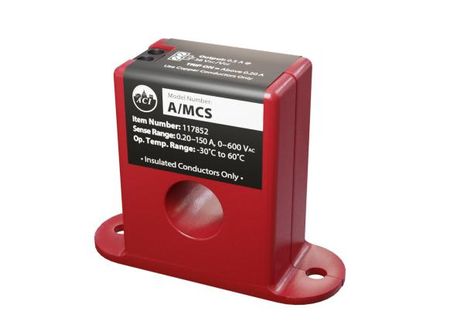

Mini, Fixed Current Switch, Solid Core, NO, 0 to 150A Range, \<0.20A Trip Point

Product Details

Mini, Fixed Current Switch, Solid Core, NO, 0 to 150A Range, \<0.20A Trip Point

Product Configuration

Core Type	Solid Core

Product Family Specifications

Wire Size	16 to 22 AWG (1.31 mm2 to 0.33 mm2) Copper Wires only
Core Style	Solid-Core and Split-Core Versions available (See Ordering Grid)
Contact Type	Normally-Open “N/O”
Sensor Power	Induced from the Monitored Conductor (Insulated Conductors only)
Aperture Size	0.53” (13.46 mm)
Response Time	A/MCS: \< 50 mS typical \| A/MSCS: \< 40 mS typical
Amperage Range	See Ordering Grid
Product Weight	A/MCS: 0.15 lbs. (0.068 kg) \| A/MSCS: 0.20 lbs. (0.091 kg)
Agency Approvals	UL/CUL US Listed (UL 916) Energy Management Equipment (File # E334792), CE, RoHS2, WEEE
Trip Point Style	Fixed Trip Point
Isolation Voltage	2200 VAC
Maximum AC Voltage	600 VAC

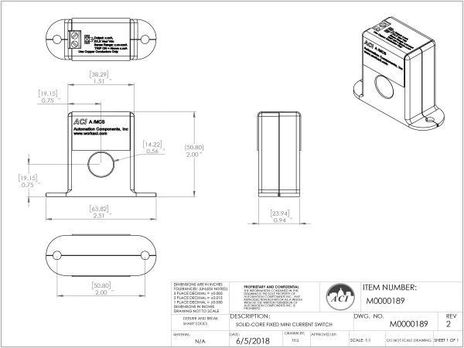

Product Dimensions	A/MCS (Solid-Core): 2.510” (63.82 mm) x 0.940” (23.94 mm) x 2.000” (50.80 mm) A/MSCS (Split-Core): 2.650” (67.19 mm) x 0.940” (23.94 mm) x 2.380” (60.49 mm)
Wiring Connections	2 Position Screw Terminal Block (Not Polarity Sensitive)
Monitored Current Type	AC Current
Operating Humidity Range	0 to 95%, non-condensing
Minimum Mounting Distance	1” (2.6 cm) between current switch (Relays, Contactors, Transformers)
Operating Frequency Range	50/60 Hz
Operating Temperature Range	-22 to 140ºF (-30 to 60ºC)
“Status” Contact Rating	0.5A Continuous @ 36 VAC/VDC
Terminal Block Torque Rating	4.43 to 5.31 in-lbs. (0.5 to 0.6 Nm)
Storage Temperature \| RH Range	41 to 95°F (5 to 35°C) \| 40 to 85% RH, non-condensing
Enclosure Material \| Flammability Rating	PC/ABS (Polycarbonate/ABS Blend) \| UL94-V0
“Status” Contact “On” Resistance \| “Off” Resistance	\< 0.5 Ohms (tripped) \| > 1 Meg Ohms (Open)
